Electric forklift application solutions

 With the development of science and technology, the engineering design ability of electric forklifts has improved, and the battery products have been designed into a compact style, which has achieved the excellent development of various electric forklift products. However, under this trend, the power consumption of products continues to increase, resulting in heat dissipation problems that seriously hinder the development of electric forklifts. Haixinghe can customize heat dissipation products with a thickness of about 6mm according to customer needs to meet the compact size and heat dissipation requirements of electric forklift products, so that you do not worry about heat dissipation problems, and heat dissipation problems can be solved by the source of wind.

Haixinghe has tailor-made cooling solutions for electric forklift products, so that the cooling products have the characteristics of small size, low power consumption, low noise, high efficiency, long power storage and long life. Let your products have advantages in the market.

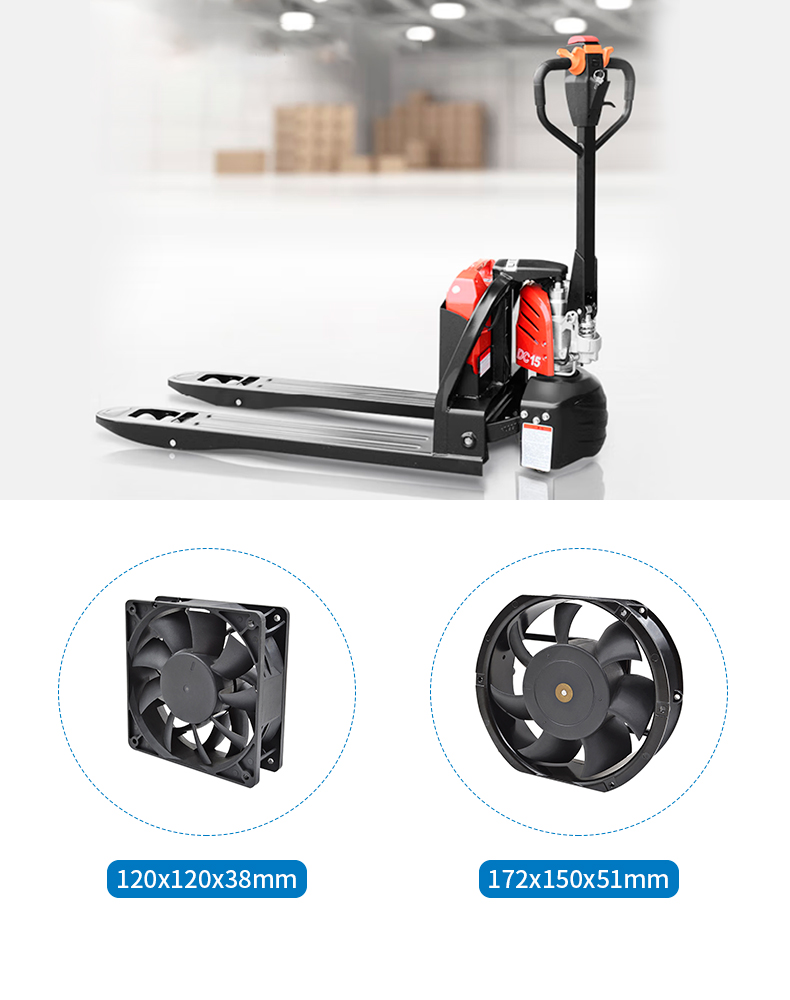

120×120×38MM

Model Bearing Hydraulic Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC A W RPM M3/min CFM mmH2O INH2O dBA
HDS1212HF -A Sleeve 12 0.70 8.40 3000 3.53 124.89 10.75 0.42 45.0
HDS1212MF -A 0.40 4.80 2500 2.87 101.56 7.45 0.29 40.3
HDS1212LF   0.25 3.00 2000 2.27 80.12 4.95 0.19 34.8
HDB1212UF -A Ball 0.80 9.60 3500 4.22 149.12 14.44 0.57 50.1
HDB1212HF -A 0.70 8.40 3000 3.53 124.89 10.75 0.42 45.0
HDB1212MF -A 0.40 4.80 2500 2.87 101.56 7.45 0.29 40.3
HDB1212LF   0.25 3.00 2000 2.27 80.12 4.95 0.19 34.8
HDS1224HF -A Sleeve 24 0.40 9.60 3000 3.53 124.89 10.75 0.42 45.0
HDS1224MF -A 0.30 7.20 2500 2.87 101.56 7.45 0.29 40.3
HDS1224LF   0.02 4.80 2000 2.27 80.12 4.95 0.19 34.8
HDB1224UF -A Ball 0.06 3.00 3500 4.22 149.12 14.44 0.57 50.1
HDB1224HF -A 0.04 9.60 3000 3.53 124.89 10.75 0.42 45.0
HDB1224MF -A 0.03 7.20 2500 2.87 101.56 7.45 0.29 40.3
HDB1224LF   0.20 4.80 2000 2.27 80.12 4.95 0.19 34.8
HDS1248HF -A Sleeve 48 0.20 9.60 3000 3.53 124.89 10.75 0.42 45.0
HDS1248MF -A 0.15 7.20 2500 2.87 101.56 7.45 0.29 40.3
HDS1248LF -A 0.13 6.24 2000 2.27 80.12 4.95 0.19 34.8
HDB1248UF -A Ball 0.25 12.00 3500 4.22 149.12 14.44 0.57 50.1
HDB1248HF -A 0.20 9.60 3000 3.53 124.89 10.75 0.42 45.0
HDB1248MF -A 0.15 7.20 2500 2.87 101.56 7.45 0.29 40.3
HDB1248LF -A 0.13 6.24 2000 2.27 80.12 4.95 0.19 34.8

172×150×51MM

Model Bearing Hydraulic Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC A W RPM M3/min CFM mmH2O INH2O dBA
HDB1712MU -A Ball 12 2.60 31.20 3000 5.70 201.47 10.78 0.42 52.0
HDB1712LU -A 0.85 10.20 2000 3.80 134.31 7.19 0.28 40.3
HDB1724MU -A Ball 24 1.30 31.20 3000 5.70 201.47 10.78 0.42 52.0
HDB1724LU -A 0.30 7.20 2000 3.80 134.31 7.19 0.28 40.3
HDB1748MU -A Ball 48 0.65 31.20 3000 5.70 201.47 10.78 0.42 52.0
HDB1748LU -A 0.16 7.68 2000 3.80 134.31 7.19 0.28 40.3
