Nail nail machine application solution

Easy operation, high printing quality, high use comfort, diversified styles, and low rework rate are the characteristics of smart nail art machines. With the development of science and technology, there are more and more equipment for medical beauty products. In order to optimize the user experience, smart nail machine products are constantly evolving. While requiring functions, it is easy to cause excessive power consumption and heat dissipation. Has become a problem we want to solve.

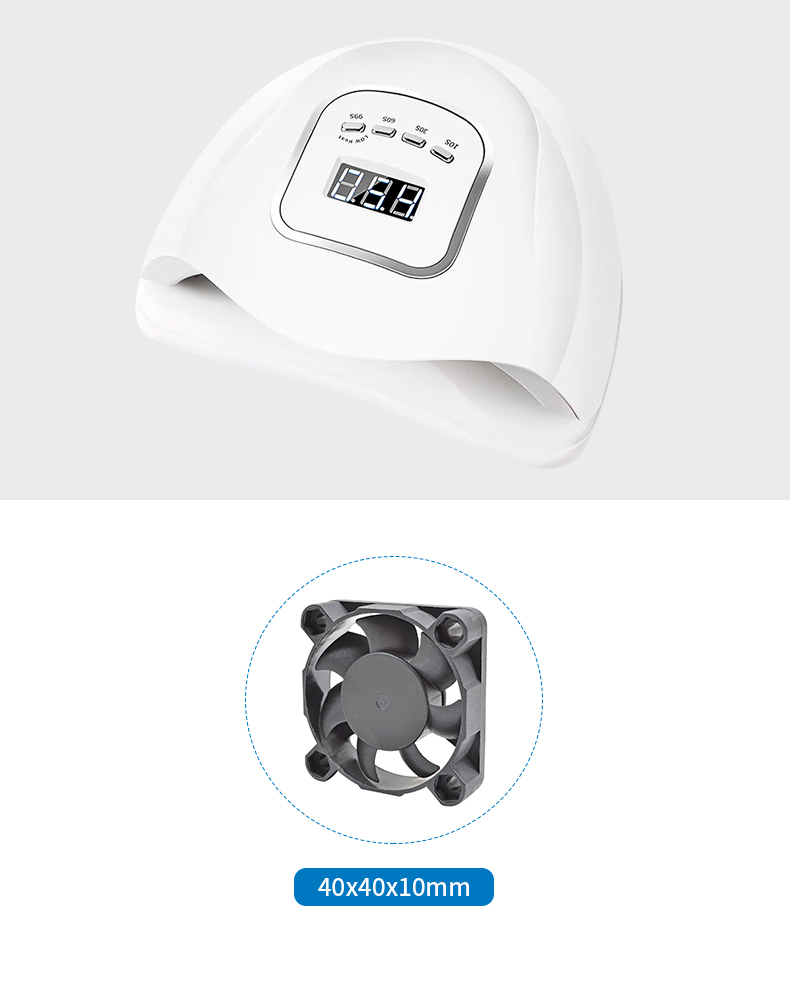

Haixinghe can customize different heat dissipation products according to the user's parameter requirements, and provide you with heat dissipation solutions. For example, Haixinghe's DC fan 4010 has the characteristics of low noise and low power consumption. It can solve the heat dissipation problem when used on the nail machine

40×40×10MM
Model Bearing Hydraulic Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC A W RPM M3/min CFM mmH2O INH2O dBA
HDH0405UG   Hydraulic 5 0.22 1.10 7000 0.18 6.19 4.52 0.18 31.7
HDH0405HG   0.17 0.85 6000 0.14 4.97 3.29 0.13 27.4
HDH0405MG   0.11 0.55 5000 0.11 4.06 2.41 0.09 23.1
HDH0405LG   0.08 0.40 4000 0.10 3.49 1.63 0.06 19.8
HDB0405UG   Ball 0.22 1.10 7000 0.18 6.19 4.52 0.18 31.7
HDB0405HG   0.17 0.85 6000 0.14 4.97 3.29 0.13 27.4
HDB0405MG   0.11 0.55 5000 0.11 4.06 2.41 0.09 23.1
HDB0405LG   0.08 0.40 4000 0.10 3.49 1.63 0.06 19.8
HDH0412EG   Hydraulic 12 0.15 1.80 8000 0.20 7.07 6.20 0.24 34.3
HDH0412UG   0.12 1.44 7000 0.18 6.19 4.52 0.18 31.7
HDH0412HG   0.10 1.20 6000 0.14 4.97 3.29 0.13 27.4
HDH0412MG   0.08 0.96 5000 0.11 4.06 2.41 0.09 23.1
HDH0412LG   0.07 0.84 4000 0.10 3.49 1.63 0.06 19.8
HDB0412EG   Ball 0.15 1.80 8000 0.20 7.07 6.20 0.24 34.3
HDB0412UG   0.12 1.44 7000 0.18 6.19 4.52 0.18 31.7
HDB0412HG   0.10 1.20 6000 0.14 4.97 3.29 0.13 27.4
HDB0412MG   0.08 0.96 5000 0.11 4.06 2.41 0.09 23.1
HDB0412LG   0.07 0.84 4000 0.10 3.49 1.63 0.06 19.8
HDH0424EG   Hydraulic 24 0.07 1.68 8000 0.20 7.07 6.20 0.24 34.3
HDH0424UG   0.06 1.44 7000 0.18 6.19 4.52 0.18 31.7
HDH0424HG   0.05 1.20 6000 0.14 4.97 3.29 0.13 27.4
HDH0424MG   0.04 0.96 5000 0.11 4.06 2.41 0.09 23.1
HDH0424LG   0.03 0.72 4000 0.10 3.49 1.63 0.06 19.8
HDB0424EG   Ball 0.07 1.68 8000 0.20 7.07 6.20 0.24 34.3
HDB0424UG   0.06 1.44 7000 0.18 6.19 4.52 0.18 31.7
HDB0424HG   0.05 1.20 6000 0.14 4.97 3.29 0.13 27.4
HDB0424MG   0.04 0.96 5000 0.11 4.06 2.41 0.09 23.1
HDB0424LG   0.03 0.72 4000 0.10 3.49 1.63 0.06 19.8
