Auto Industry Solutions

Nowadays, when people drive a car, they will find a lot of things such as fuel consumption display, ABS, ASR, EBA, ESP, airbag, air purifier, temperature and humidity control in the car, CD/DVD player, GPS navigation Instrumentation, electric doors and windows, electric rearview mirrors, electric seat memory adjustment, LED lights, adaptive cruise, and electronic products currently account for 23%-30% of the total vehicle cost, accounting for high-end luxury cars To 50%-60%. In the future, the development of automobiles will be driven by automobile electronic technology, and people may feel like they are operating a complex electronic device when driving a car.

    Poor heat dissipation design will seriously endanger the reliability, safety, and durability of electronic products, and will also generate undesirable noise and vibration during driving, which will affect the car manufacturer’s product warranty Maintenance and car quality satisfaction and other issues. Haixinghe adopts the best NMB bearings, combines the characteristics of high safety, high reliability, and high performance products, and has passed FCC, CCC, CE and other certifications to meet customer high-quality requirements.

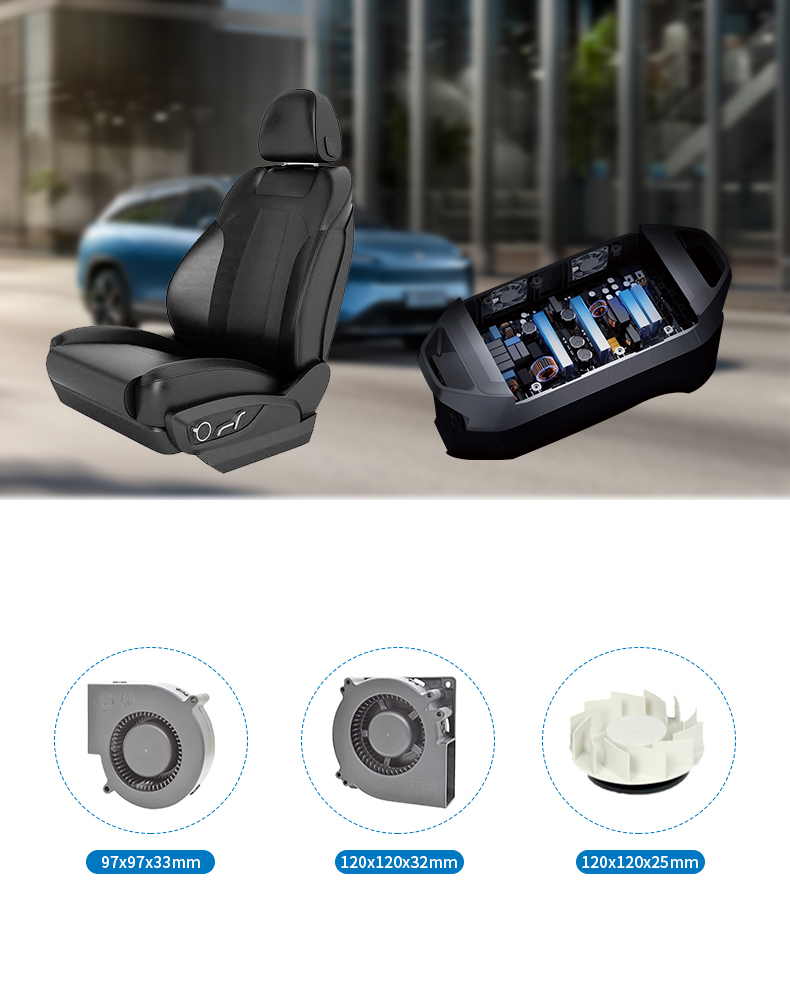

97×97×33MM

Model Bearing Hydraulic Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC A W RPM M3/min CFM mmH2O INH2O dBA
HBB9712UZ -A Ball 12 1.35 16.20 5000 0.63 22.12 23.03 0.91 54.3
HBB9712HZ -A 1.10 13.20 4000 0.52 18.41 15.31 0.60 49.7
HBB9712MZ -A 0.90 10.80 3600 0.46 16.30 11.65 0.46 47.0
HBB9712LZ -A 0.60 7.20 3200 0.42 14.73 8.99 0.35 43.9
HBB9724UZ -A Ball 24 0.85 20.40 5000 0.63 22.12 23.03 0.91 54.3
HBB9724HZ -A 0.60 14.40 4000 0.52 18.41 15.31 0.60 49.7
HBB9724MZ -A 0.45 10.80 3600 0.46 16.30 11.65 0.46 47.0
HBB9724LZ -A 0.30 7.20 3200 0.42 14.73 8.99 0.35 43.9



120×120×32MM

Model Bearing Hydraulic Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC A W RPM M3/min CFM mmH2O INH2O dBA
HBS1212HY -A Sleeve 12 1.10 13.20 2800 0.66 23.36 17.29 0.68 48.5
HBS1212MY -A 0.85 10.20 2500 0.62 22.05 15.94 0.63 45.9
HBS1212LY -A 0.45 5.40 2100 0.42 14.90 10.32 0.41 41.1
HBB1212UY -A Ball 1.40 16.80 3100 0.76 26.91 20.94 0.82 51.2
HBB1212HY -A 1.10 13.20 2800 0.66 23.36 17.29 0.68 48.5
HBB1212MY -A 0.85 10.20 2500 0.62 22.05 15.94 0.63 45.9
HBB1212LY -A 0.45 5.40 2100 0.42 14.90 10.32 0.41 41.1
HBS1224HY -A Sleeve 24 0.55 13.20 2800 0.66 23.36 17.29 0.68 48.5
HBS1224MY -A 0.45 10.80 2500 0.62 22.05 15.94 0.63 45.9
HBS1224LY -A 0.30 7.20 2100 0.42 14.90 10.32 0.41 41.1
HBB1224UY -A Ball 0.72 17.28 3100 0.76 26.91 20.94 0.82 51.2
HBB1224HY -A 0.55 13.20 2800 0.66 23.36 17.29 0.68 48.5
HBB1224MY -A 0.45 10.80 2500 0.62 22.05 15.94 0.63 45.9
HBB1224LY -A 0.30 7.20 2100 0.42 14.90 10.32 0.41 41.1
HBS1248HY -A Sleeve 48 0.35 16.80 2800 0.66 23.36 17.29 0.68 48.5
HBS1248MY -A 0.24 11.52 2500 0.62 22.05 15.94 0.63 45.9
HBS1248LY -A 0.18 8.64 2100 0.42 14.90 10.32 0.41 41.1
HBB1248HY -A Ball 0.35 16.80 2800 0.66 23.36 17.29 0.68 48.5
HBB1248MY -A 0.24 11.52 2500 0.62 22.05 15.94 0.63 45.9
HBB1248LY -A 0.18 8.64 2100 0.42 14.90 10.32 0.41 41.1


120×120×25MM

Model Bearing Hydraulic Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC A W RPM M3/min CFM mmH2O INH2O dBA
HDH1212HA -A Hydraulic 12 0.32 3.84 2300 2.19 77.30 3.25 0.13 39.0
HDH1212MA   0.24 2.88 2000 1.73 61.09 2.14 0.08 35.5
HDH1212LA   0.18 2.16 1700 1.62 57.31 1.60 0.06 32.7
HDB1212UA -A Ball 0.42 5.04 2800 2.73 96.51 4.70 0.19 44.4
HDB1212HA -A 0.32 3.84 2300 2.19 77.30 3.25 0.13 39.0
HDB1212MA   0.24 2.88 2000 1.73 61.09 2.14 0.08 35.5
HDB1212LA   0.18 2.16 1700 1.62 57.31 1.60 0.06 32.7
HDH1224HA   Hydraulic 24 0.20 4.80 2300 2.19 77.30 3.25 0.13 39.0
HDH1224MA   0.15 3.60 2000 1.73 61.09 2.14 0.08 35.5
HDH1224LA   0.12 2.88 1700 1.62 57.31 1.60 0.06 32.7
HDB1224UA -A Ball 0.30 7.20 2800 2.73 96.51 4.70 0.19 44.4
HDB1224HA   0.20 4.80 2300 2.19 77.30 3.25 0.13 39.0
HDB1224MA   0.15 3.60 2000 1.73 61.09 2.14 0.08 35.5
HDB1224LA   0.12 2.88 1700 1.62 57.31 1.60 0.06 32.7
