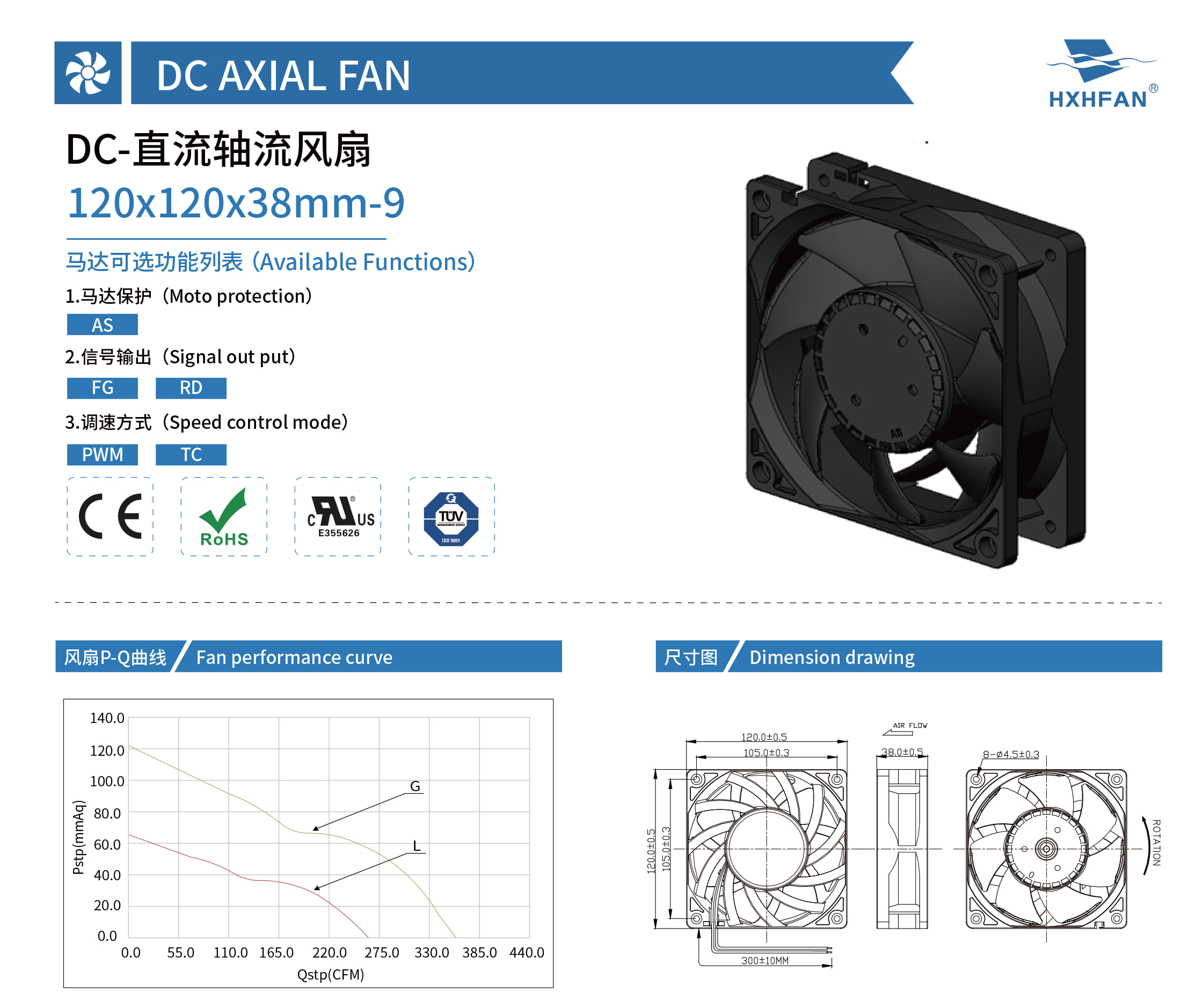

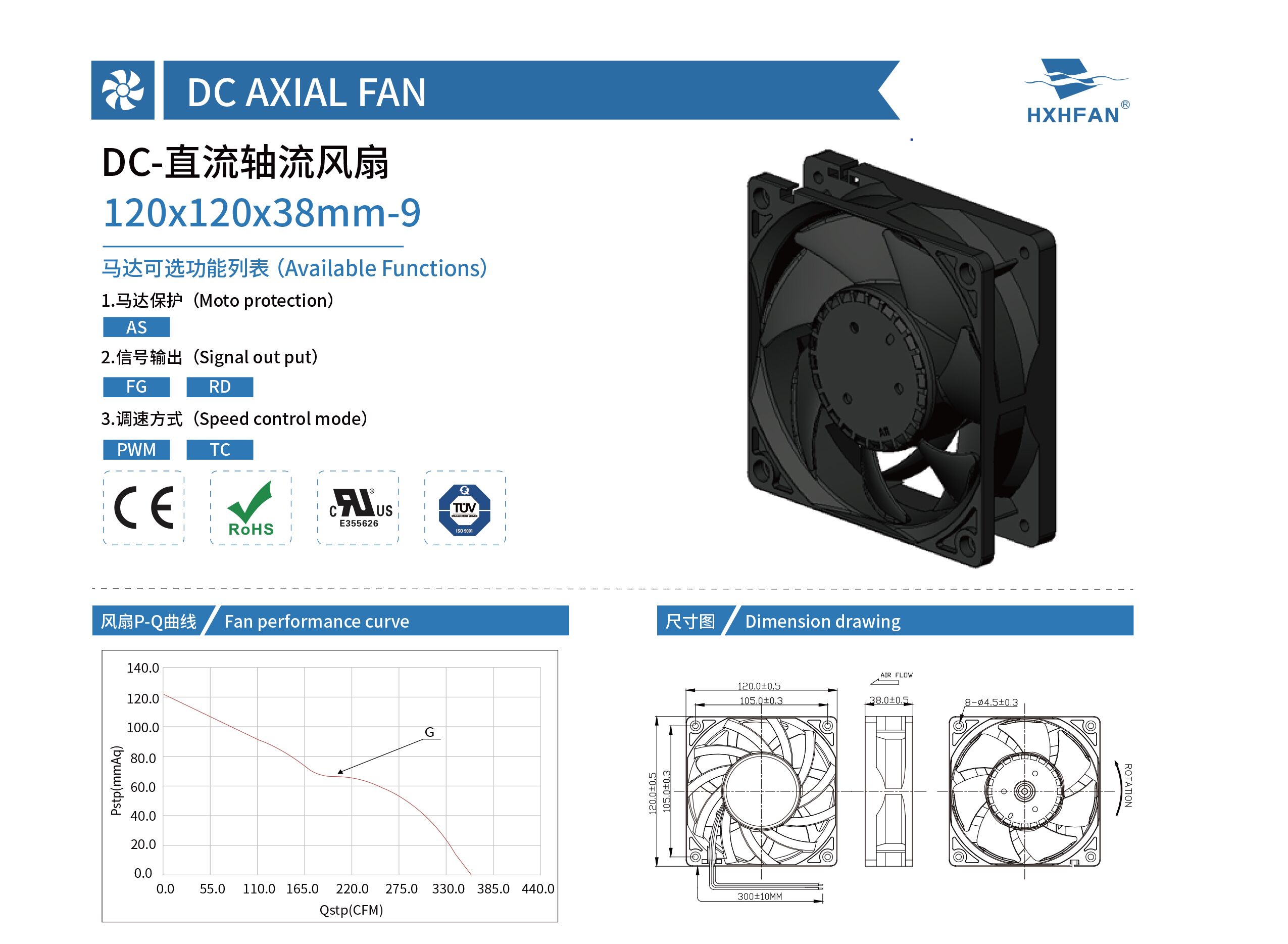

| 120×120×38MM-9(铝框PBT叶) | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1248GF-9 | -A | Ball | 48 | 24.0 | 2.42 | 116.16 | 11000 | 10.16 | 359.10 | 122.20 | 4.81 | 77.7 |
| HDB1224LF-9 | -A | 24 | 12.0 | 0.95 | 22.80 | 8000 | 7.44 | 262.80 | 65.40 | 2.57 | 70.7 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
