产品简介:

尺寸: 80x80x25mm
材质: 环保防火PBT UL 94V-0
工作电压: 110V 220V
轴承结构: 滚珠轴承
产品寿命: 7万小时
输出功能: FG功能
运行温度: -10℃ ~70℃
贮存温度: -40℃ ~75℃
点击咨询
点击下载pdf

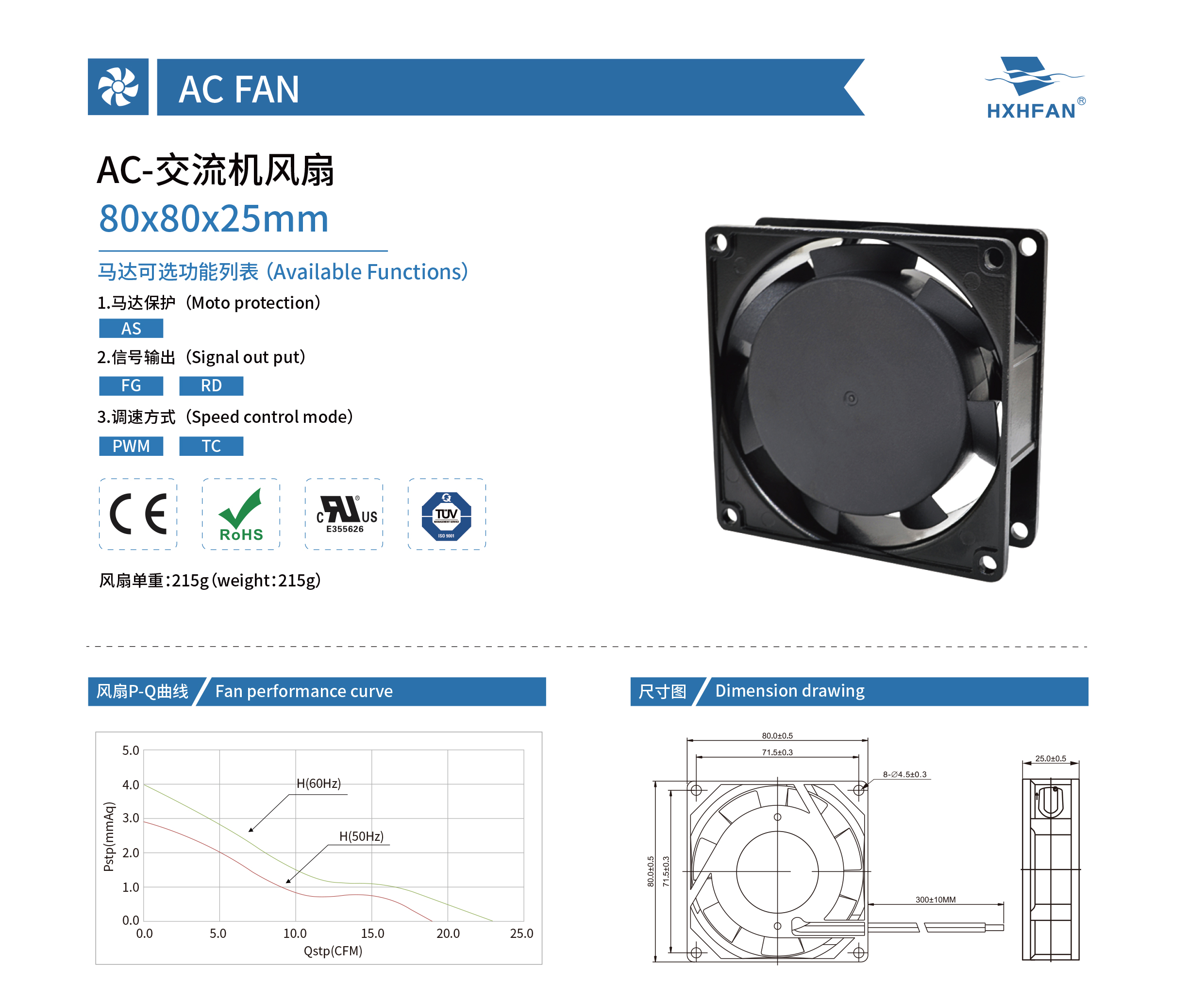

80×80×25mm
Model Bearing Rated Voltage  Voltage Range Freq. Current Speed Air Flow Static Pressure Noise
Part NO. Type System VAC VAC Hz A RPM M3/min CFM mmH2O INH2O dBA
HAS08110HA W/T Sleeve 110 100-125 50/60 0.11/0.10 2300/2700 0.54/0.65 19/23 2.9/4.0 0.11/0.16 36/38
HAS08110MA W/T 100-125 50/60 0.13/0.12 1700/2200 0.40/0.51 14/18 1.8/2.9 0.07/0.11 30/35
HAB08110HA W/T Ball 100-125 50/60 0.11/0.10 2300/2700 0.54/0.65 19/23 2.9/4.0 0.11/0.16 36/38
HAB08110MA W/T 100-125 50/60 0.13/0.12 1700/2200 0.40/0.51 14/18 1.8/2.9 0.07/0.11 30/35
HAS08220HA W/T Sleeve 220 200-240 50/60 0.06/0.05 2300/2700 0.54/0.65 19/23 2.9/4.0 0.11/0.16 36/38
HAS08220MA W/T 200-240 50/60 0.07/0.06 1700/2200 0.40/0.51 14/18 1.8/2.9 0.07/0.11 30/35
HAB08220HA W/T Ball 200-240 50/60 0.06/0.05 2300/2700 0.54/0.65 19/23 2.9/4.0 0.11/0.16 36/38
HAB08220MA W/T 200-240 50/60 0.07/0.06 1700/2200 0.40/0.51 14/18 1.8/2.9 0.07/0.11 30/35
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
