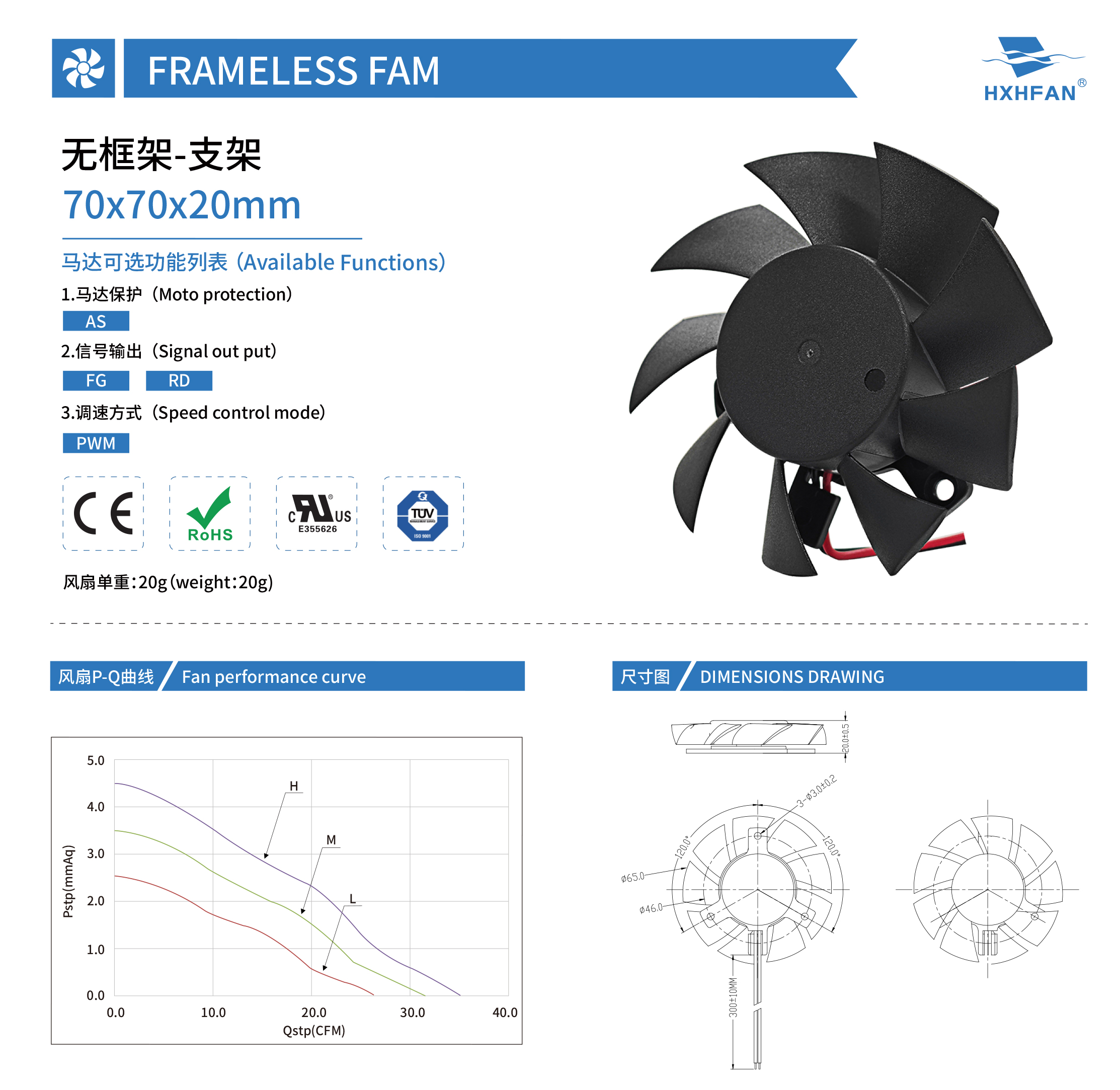

| 70*70*20MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0712HC | Hydraulic | 12 | 6.0 | 0.18 | 2.16 | 4000 | 0.99 | 35.05 | 4.52 | 0.18 | 37.3 | |
| HYH0712MC | 6.0 | 0.11 | 1.32 | 3500 | 0.89 | 31.30 | 3.51 | 0.14 | 34.2 | |||
| HYH0712LC | 6.0 | 0.06 | 0.72 | 3000 | 0.74 | 26.20 | 2.55 | 0.10 | 30.2 | |||
| HYB0712HC | Ball | 6.0 | 0.18 | 2.16 | 4000 | 0.99 | 35.05 | 4.52 | 0.18 | 37.3 | ||
| HYB0712MC | 6.0 | 0.11 | 1.32 | 3500 | 0.89 | 31.30 | 3.51 | 0.14 | 34.2 | |||
| HYB0712LC | 6.0 | 0.06 | 0.72 | 3000 | 0.74 | 26.20 | 2.55 | 0.10 | 30.2 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
