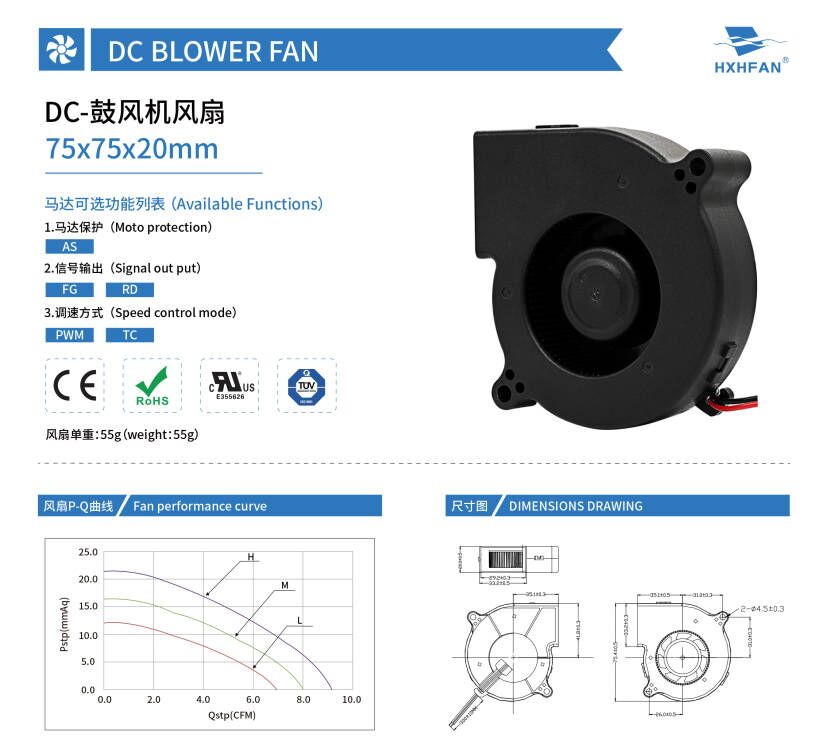

| 75*75*20MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH7512HC | Hydraulic | 12 | 9.5 | 0.30 | 3.60 | 4000 | 0.26 | 9.18 | 21.42 | 0.84 | 36.0 | |
| HBH7512MC | 9.5 | 0.25 | 3.00 | 3500 | 0.23 | 8.03 | 16.4 | 0.65 | 33.1 | |||
| HBH7512LC | 9.5 | 0.20 | 2.40 | 3000 | 0.19 | 6.89 | 12.05 | 0.47 | 29.8 | |||
| HBB7512HC | BALL | 9.5 | 0.30 | 3.60 | 4000 | 0.26 | 9.18 | 21.42 | 0.84 | 36.0 | ||
| HBB7512MC | 9.5 | 0.25 | 3.00 | 3500 | 0.23 | 8.03 | 16.4 | 0.65 | 33.1 | |||
| HBB7512LC | 9.5 | 0.20 | 2.40 | 3000 | 0.19 | 6.89 | 12.05 | 0.47 | 29.8 | |||
| HBH7524HC | Hydraulic | 24 | 12.0 | 0.25 | 6.00 | 4000 | 0.26 | 9.18 | 21.42 | 0.84 | 36.0 | |
| HBH7524MC | 12.0 | 0.20 | 4.80 | 3500 | 0.23 | 8.03 | 16.4 | 0.65 | 33.1 | |||
| HBH7524LC | 12.0 | 0.15 | 3.60 | 3000 | 0.19 | 6.89 | 12.05 | 0.47 | 29.8 | |||
| HBB7524HC | BALL | 12.0 | 0.25 | 6.00 | 4000 | 0.26 | 9.18 | 21.42 | 0.84 | 36.0 | ||
| HBB7524MC | 12.0 | 0.20 | 4.80 | 3500 | 0.23 | 8.03 | 16.4 | 0.65 | 33.1 | |||
| HBB7524LC | 12.0 | 0.15 | 3.60 | 3000 | 0.19 | 6.89 | 12.05 | 0.47 | 29.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
