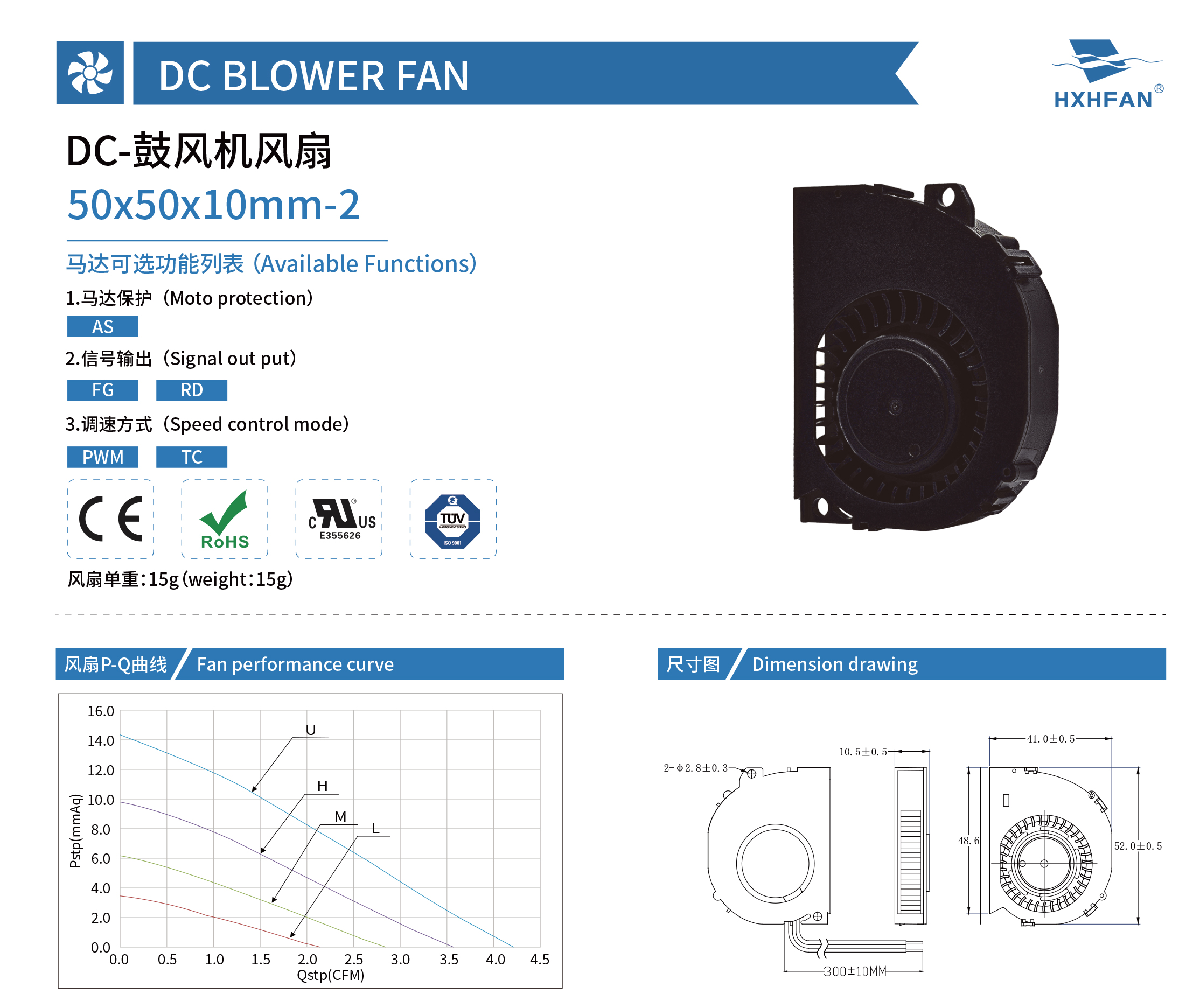

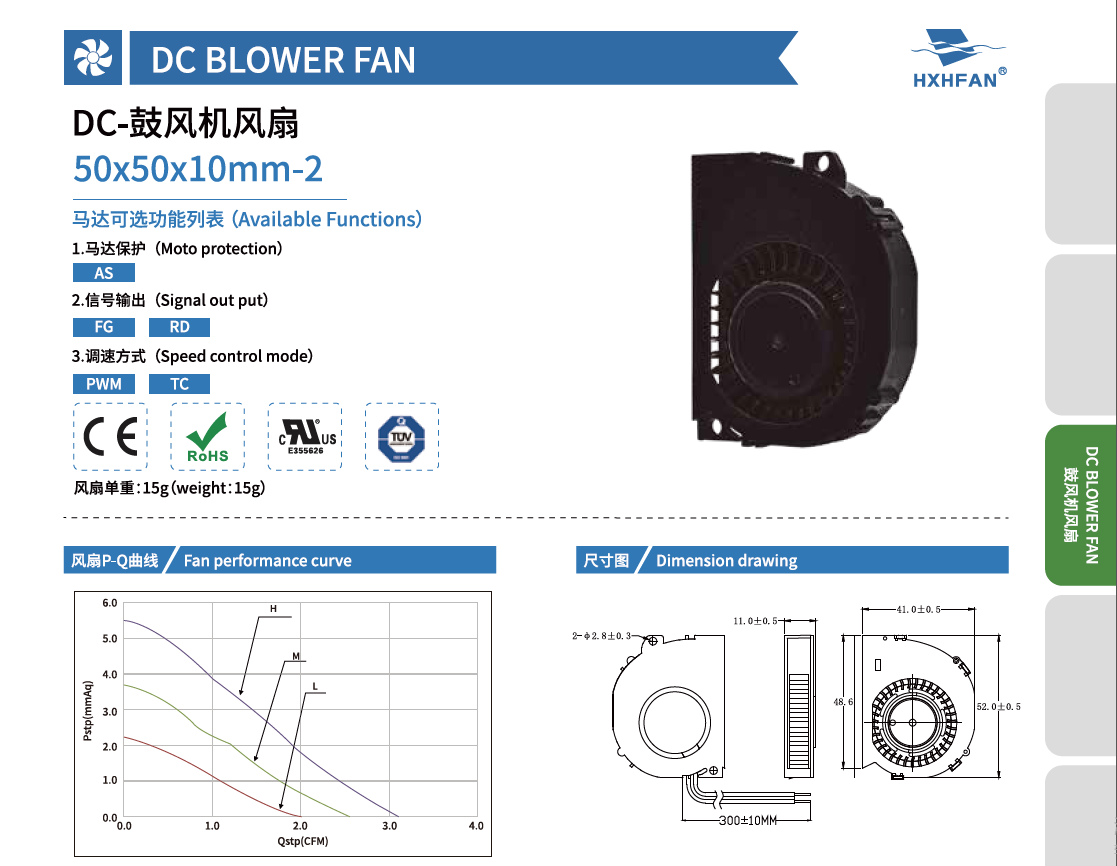

| 50×50×10MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0505HG-2 | Sleeve | 5 | 4.0 | 0.25 | 1.25 | 5500 | 0.10 | 3.57 | 9.85 | 0.39 | 33.5 | |
| HBS0505MG-2 | 4.0 | 0.18 | 0.90 | 4500 | 0.08 | 2.84 | 6.16 | 0.24 | 27.5 | |||
| HBS0505LG-2 | 4.0 | 0.15 | 0.75 | 3500 | 0.06 | 2.13 | 3.47 | 0.14 | 20.4 | |||
| HBB0505UG-2 | Ball | 4.0 | 0.30 | 1.50 | 6500 | 0.12 | 4.21 | 14.38 | 0.57 | 38.6 | ||
| HBB0505HG-2 | 4.0 | 0.25 | 1.25 | 5500 | 0.10 | 3.57 | 9.85 | 0.39 | 33.5 | |||
| HBB0505MG-2 | 4.0 | 0.18 | 0.90 | 4500 | 0.08 | 2.84 | 6.16 | 0.24 | 27.5 | |||
| HBB0505LG-2 | 4.0 | 0.15 | 0.75 | 3500 | 0.06 | 2.13 | 3.47 | 0.14 | 20.4 | |||
| HBS0512HG-2 | Sleeve | 12 | 4.0 | 0.15 | 1.80 | 5500 | 0.10 | 3.57 | 9.85 | 0.39 | 33.5 | |
| HBS0512MG-2 | 4.0 | 0.10 | 1.20 | 4500 | 0.08 | 2.84 | 6.16 | 0.24 | 27.5 | |||
| HBS0512LG-2 | 4.0 | 0.08 | 0.96 | 3500 | 0.06 | 2.13 | 3.47 | 0.14 | 20.4 | |||
| HBB0512HG-2 | Ball | 6.0 | 0.15 | 1.80 | 5500 | 0.10 | 3.57 | 9.85 | 0.39 | 33.5 | ||
| HBB0512MG-2 | 6.0 | 0.10 | 1.20 | 4500 | 0.08 | 2.84 | 6.16 | 0.24 | 27.5 | |||
| HBB0512LG-2 | 6.0 | 0.08 | 0.96 | 3500 | 0.06 | 2.13 | 3.47 | 0.14 | 20.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
