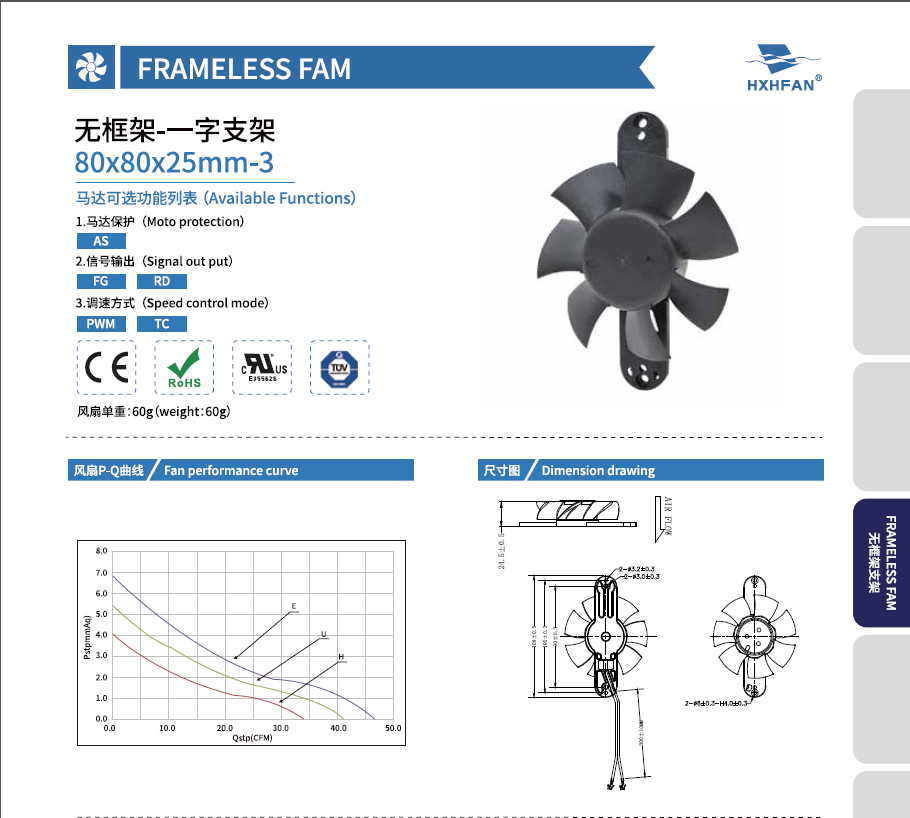

80x80x25mm-3
产品简介:
| 尺寸: | 80x80x25mm-3 |
|---|---|
| 材质: | 环保防火PBT UL 94V-0 |
| 工作电压: | 5V 12V 24V |
| 轴承结构: | 滚珠轴承 |
| 产品寿命: | 7万小时 |
| 输出功能: | FG功能 RD功能 PWM功能 |
| 运行温度: | -10℃ ~70℃ |
| 贮存温度: | -40℃ ~75℃ |
| 80*80*25MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0812EA-3 | Ball | 12 | 6.0 | 0.38 | 4.56 | 4000 | 1.32 | 46.57 | 6.82 | 0.27 | 40.7 | |
| HYB0812UA-3 | 6.0 | 0.28 | 3.36 | 3500 | 1.16 | 41.09 | 5.44 | 0.21 | 39.4 | |||
| HYB0812HA-3 | 6.0 | 0.23 | 2.76 | 3000 | 0.97 | 34.21 | 4.04 | 0.16 | 35.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
