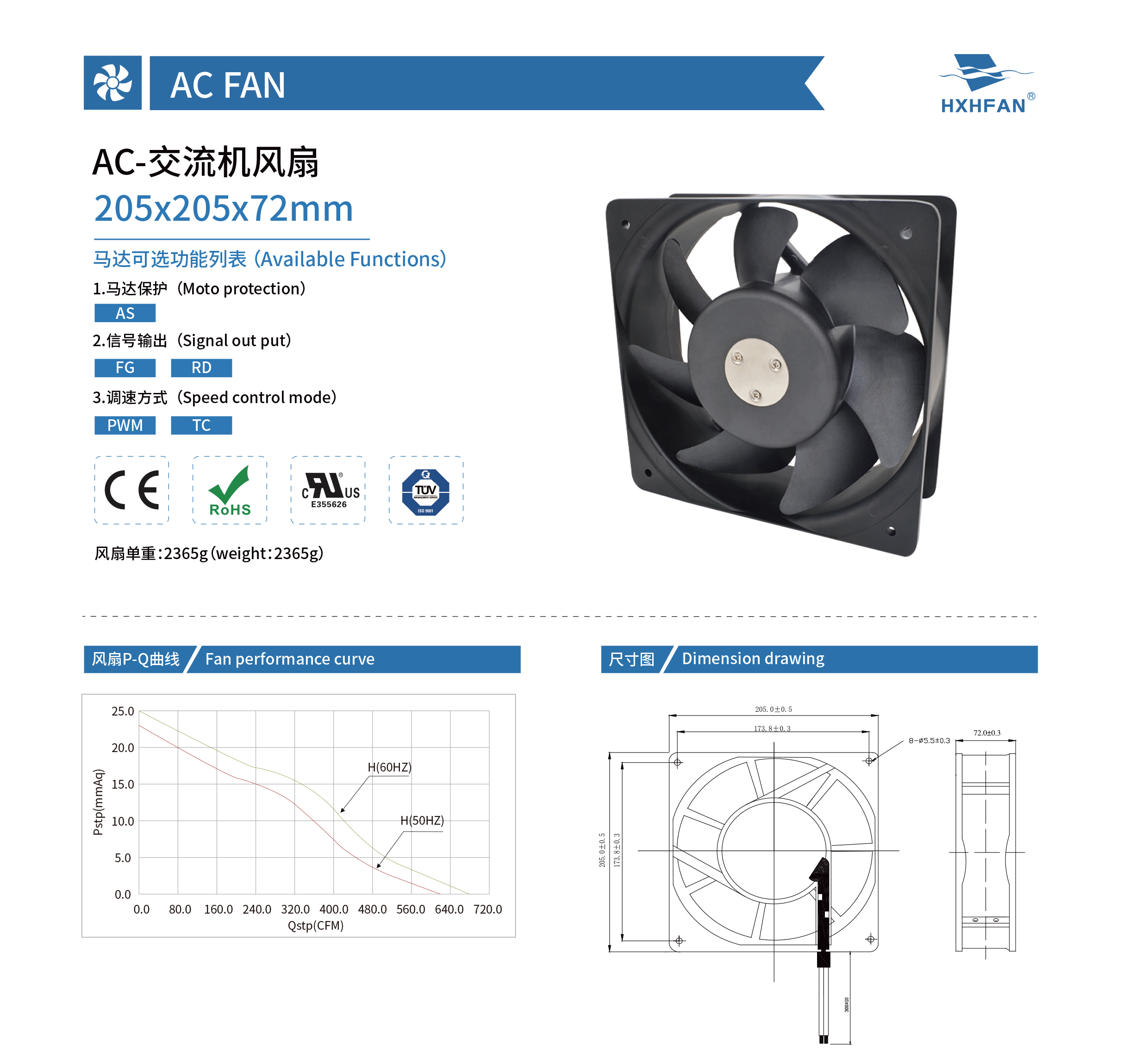

| 205×205×72mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB20110HX | W/T | Ball | 110 | 100-125 | 50/60 | 0.58/0.60 | 2850/3300 | 17.5/19.2 | 620/680 | 23/25 | 0.91/0.98 | 63/68 |
| HAB20220HX | W/T | Ball | 220 | 200-240 | 50/60 | 0.32/0.50 | 2850/3300 | 17.5/19.2 | 620/680 | 23/25 | 0.91/0.98 | 63/68 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
