120*120*38-2MM
120*120*38-2MM
  • 120*120*38-2MM

120*120*38-2MM

产品简介:

尺寸: 120*120*38-2mm
材质: 环保防火PBT UL 94V-0
工作电压: 110V 220V
轴承结构: 含油轴承,滚珠轴承
产品寿命: 3万小时,7万小时
输出功能: FG功能
运行温度: -10℃ ~70℃
贮存温度: -40℃ ~75℃
点击咨询
点击下载pdf

产品描述

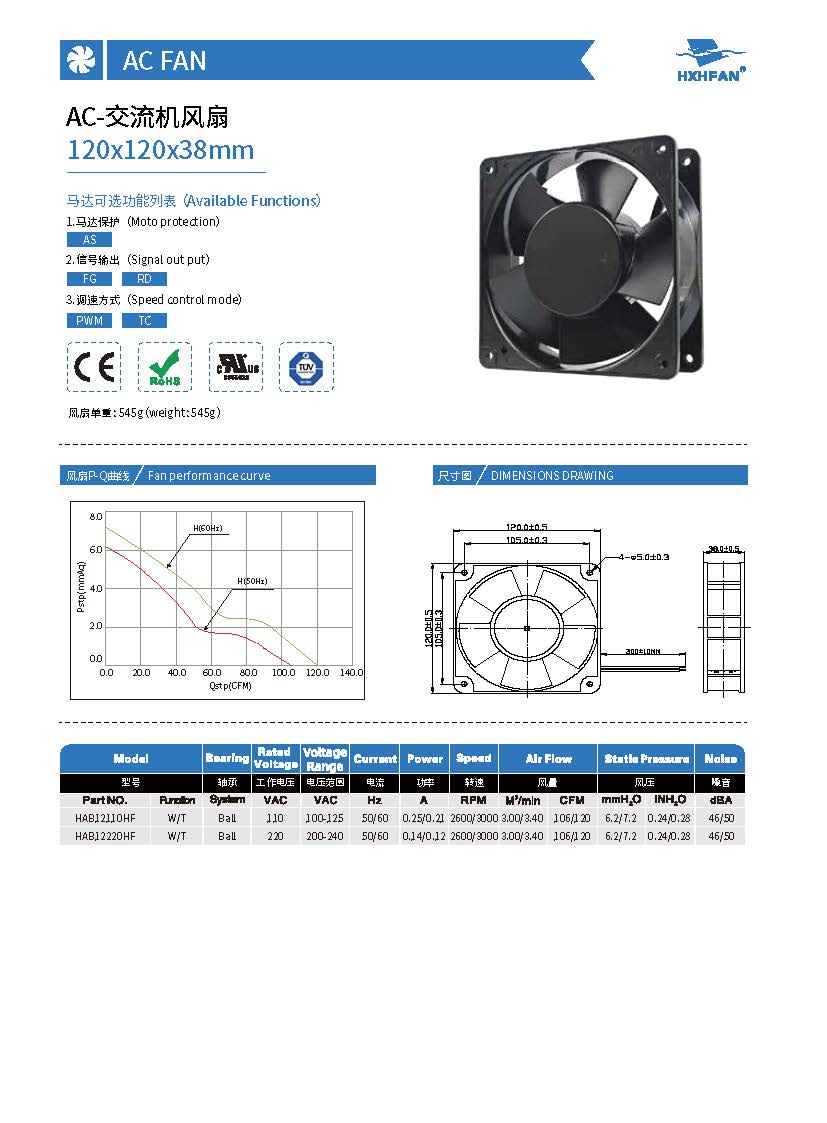

120×120×38MM
Model Bearing Rated Voltage  Voltage Range Freq. Current Speed Air Flow Static Pressure Noise
Part NO. Type System VAC VAC Hz A RPM M3/min CFM mmH2O INH2O dBA
HAB12110HF-2 W/T Ball 110 100-125 50/60 0.25/0.21 2600/3000 3.00/3.40 106/120 6.2/7.2 0.24/0.28 46/50
HAB12220HF-2 W/T Ball 220 200-240 50/60 0.14/0.12 2600/3000 3.00/3.40 106/120 6.2/7.2 0.24/0.28 46/50
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
