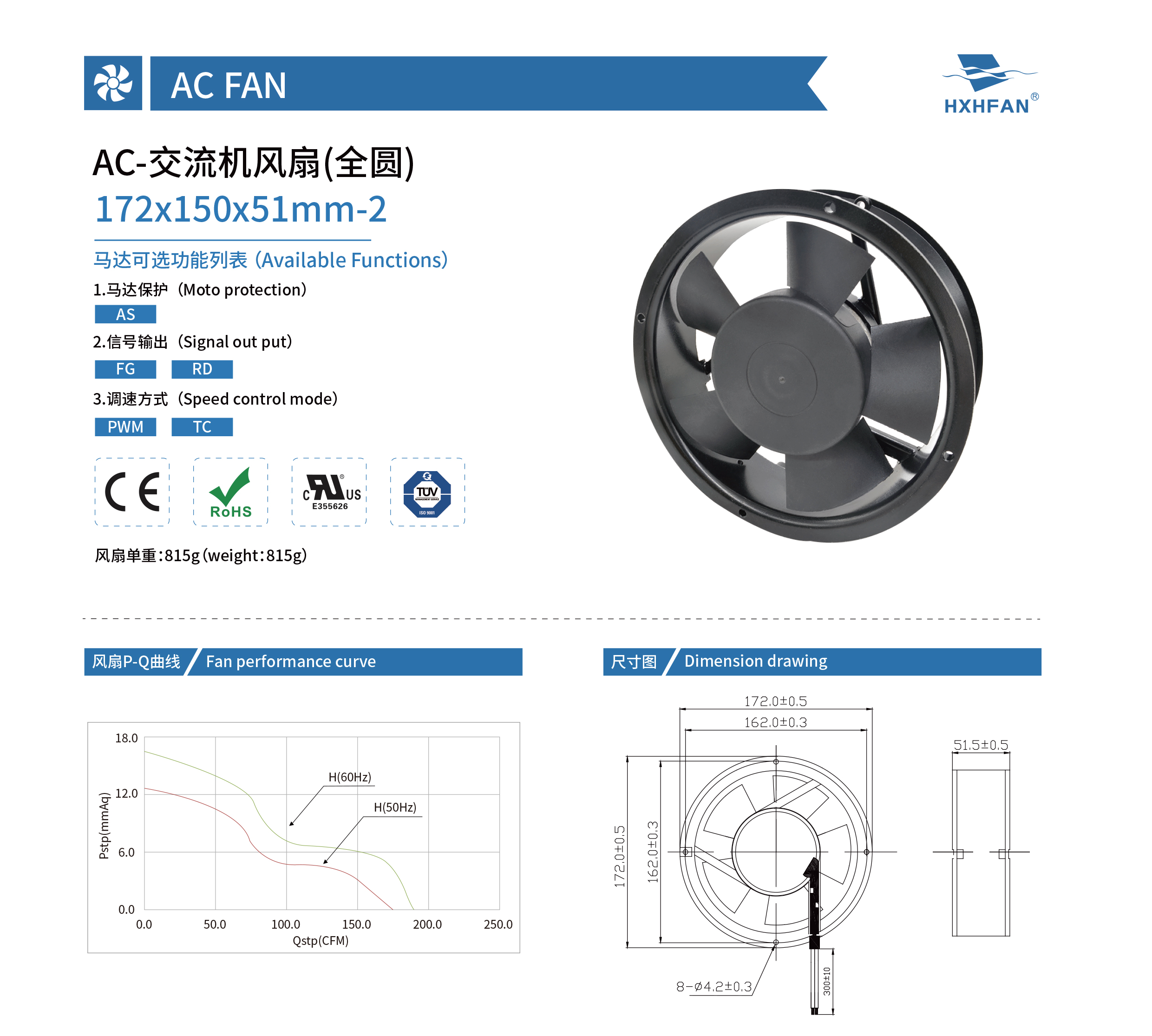

| 172×150×51mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB17110HU-2 | W/T | Ball | 110 | 100-125 | 50/60 | 0.51/0.47 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 |
| HAB17220HU-2 | W/T | Ball | 220 | 200-240 | 50/60 | 0.26/0.24 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
