产品简介:

尺寸: 80*80*38mm
材质: 环保防火PBT UL 94V-0
工作电压: 110V 220V
轴承结构: 滚珠轴承
产品寿命: 7万小时
输出功能: FG功能
运行温度: -10℃ ~70℃
贮存温度: -40℃ ~75℃
点击咨询
点击下载pdf

产品描述

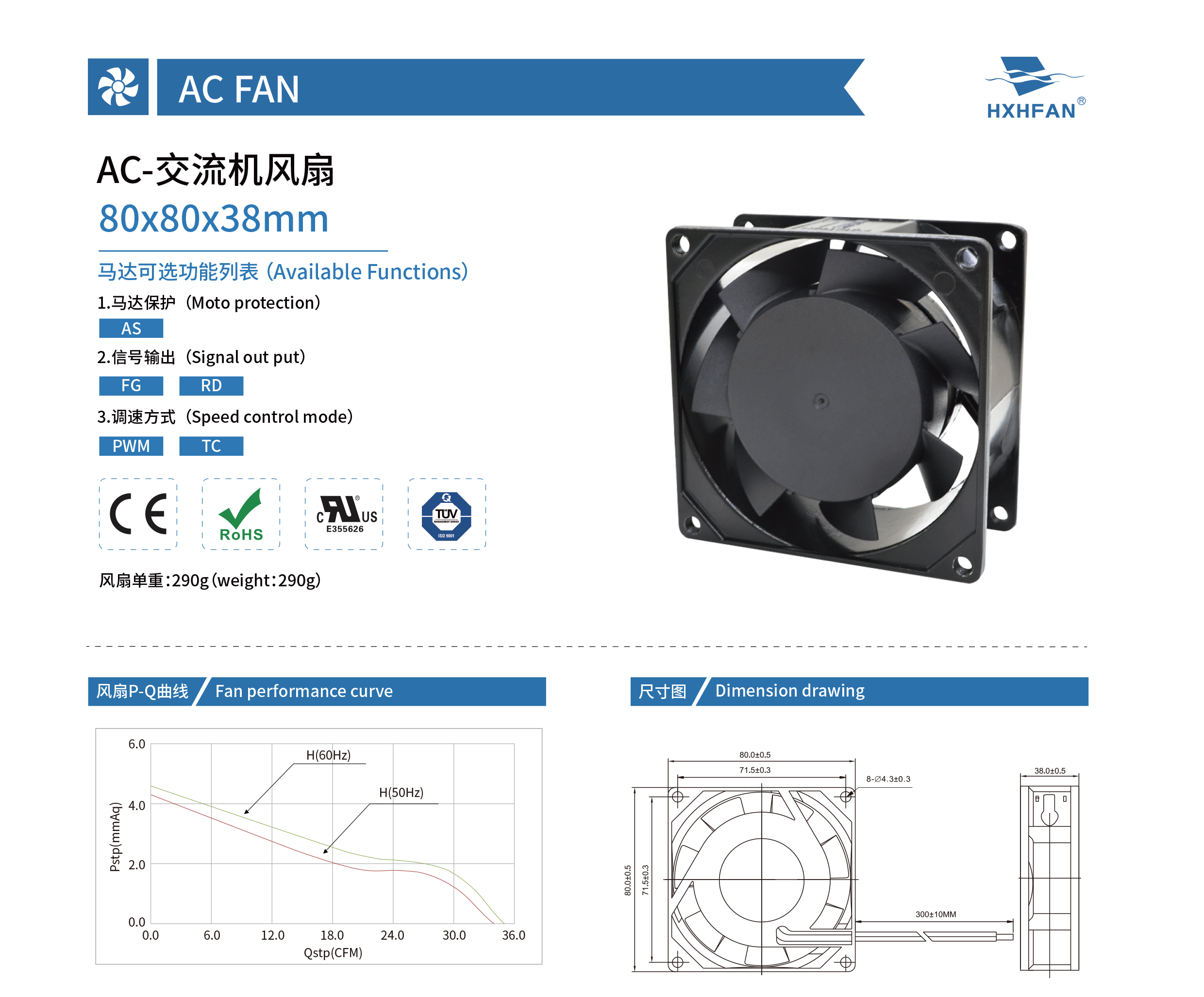

80×80×38MM
Model Bearing Rated Voltage  Voltage Range Freq. Current Speed Air Flow Static Pressure Noise
Part NO. Type System VAC VAC Hz A RPM M3/min CFM mmH2O INH2O dBA
HAS08110HF W/T Sleeve 110 100-125 50/60 0.15/0.13 2600/2800 0.96/0.99 34/35 4.3/4.6 0.17/0.18 33/35
HAS08110MF W/T 100-125 50/60 0.11/0.10 2100/2300 0.85/0.93 30/33 2.5/2.8 0.10/0.11 28/30
HAB08110HF W/T Ball 100-125 50/60 0.15/0.13 2600/2800 0.96/0.99 34/35 4.3/4.6 0.17/0.18 33/35
HAB08110MF W/T 100-125 50/60 0.11/0.10 2100/2300 0.85/0.93 30/33 2.5/2.8 0.10/0.11 28/30
HAS08220HF W/T Sleeve 220 200-240 50/60 0.08/0.07 2600/2800 0.96/0.99 34/35 4.3/4.6 0.17/0.18 33/35
HAS08220MF W/T 200-240 50/60 0.06/0.05 2100/2300 0.85/0.93 30/33 2.5/2.8 0.10/0.11 28/30
HAB08220HF W/T Ball 200-240 50/60 0.08/0.07 2600/2800 0.96/0.99 34/35 4.3/4.6 0.17/0.18 33/35
HAB08220MF W/T 200-240 50/60 0.06/0.05 2100/2300 0.85/0.93 30/33 2.5/2.8 0.10/0.11 28/30
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
