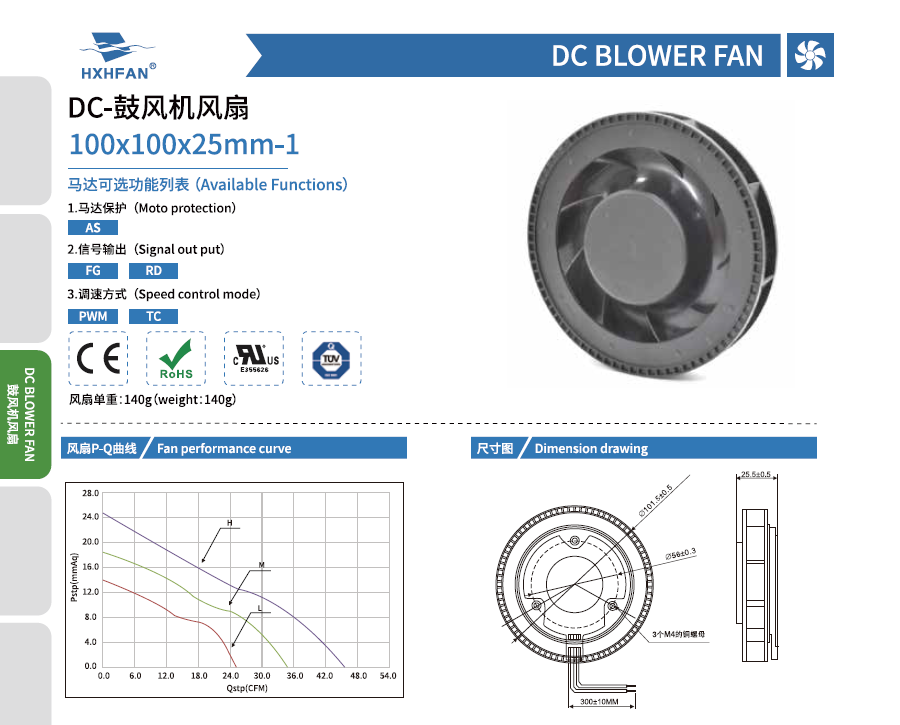

| 100*100*25MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS1005HA-1 | SLEEVE | 5 | 4.5 | 0.53 | 2.65 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | |
| HBS1005MA-1 | 4.5 | 0.41 | 2.05 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBS1005LA-1 | 4.5 | 0.29 | 1.45 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| HBB1005HA-1 | BALL | 4.5 | 0.53 | 2.65 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | ||
| HBB1005MA-1 | 4.5 | 0.41 | 2.05 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBB1005LA-1 | 4.5 | 0.29 | 1.45 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| HBS1012HA-1 | SLEEVE | 12 | 9.5 | 0.27 | 3.24 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | |
| HBS1012MA-1 | 9.5 | 0.21 | 2.52 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBS1012LA-1 | 9.5 | 0.15 | 1.80 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| HBB1012HA-1 | BALL | 9.5 | 0.27 | 3.24 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | ||
| HBB1012MA-1 | 9.5 | 0.21 | 2.52 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBB1012LA-1 | 9.5 | 0.15 | 1.80 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
