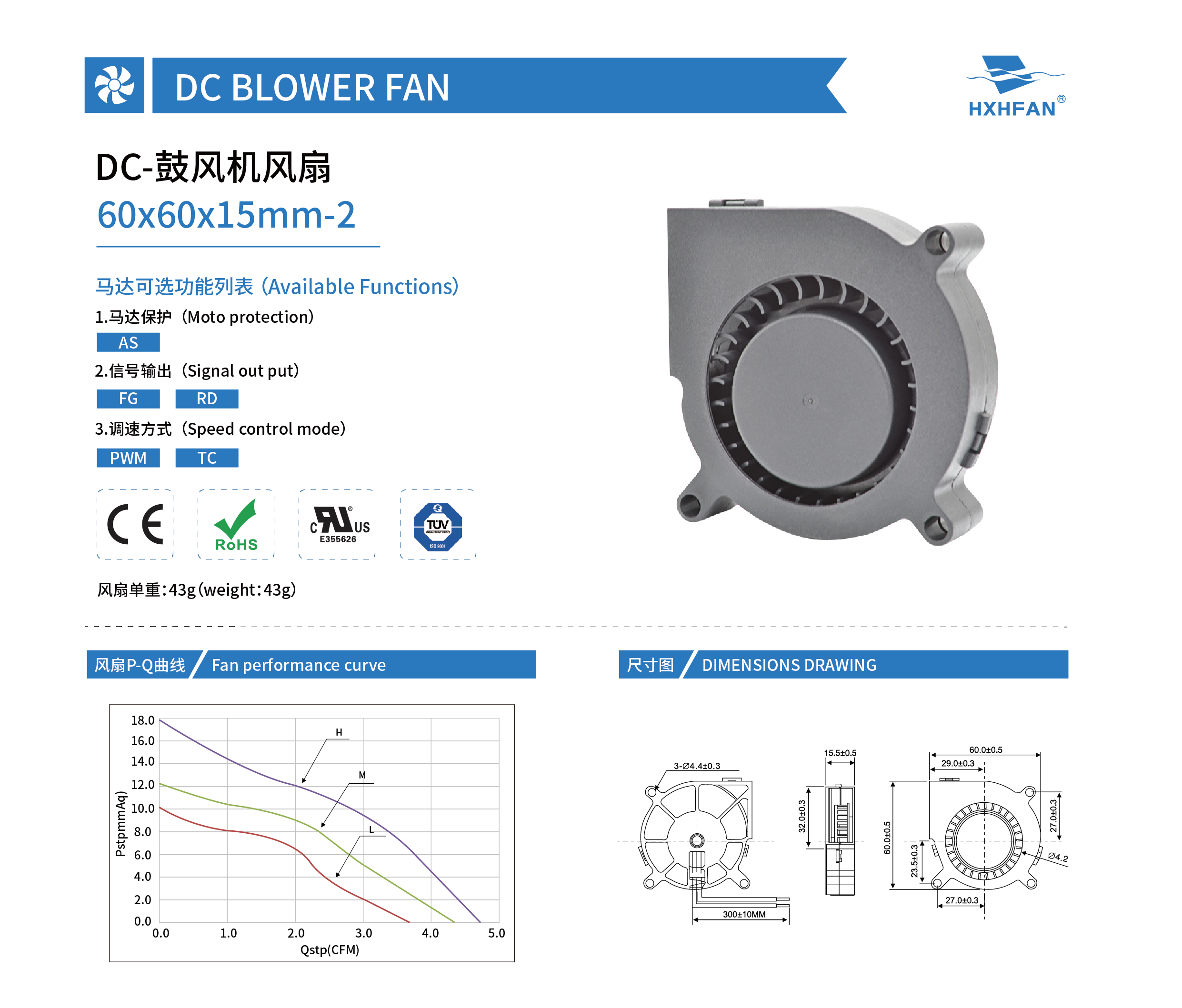

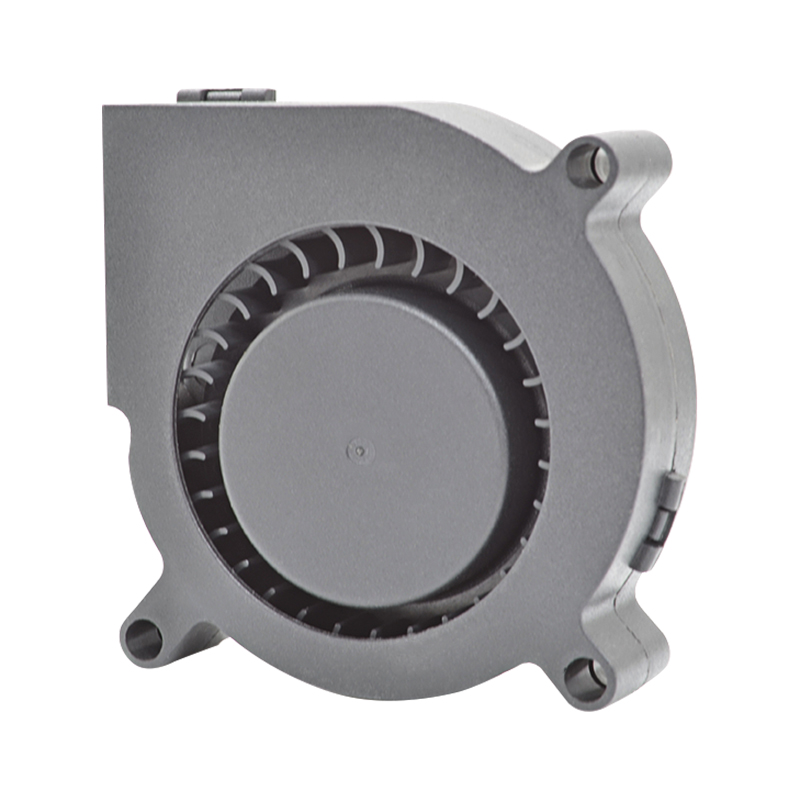

| 60*60*15MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0605HD-2 | SLEEVE | 5 | 4.5 | 0.23 | 1.15 | 4500 | 0.13 | 4.72 | 17.97 | 0.71 | 41.3 | |
| HBS0605MD-2 | 4.5 | 0.15 | 0.75 | 4000 | 0.12 | 4.35 | 12.23 | 0.48 | 37.9 | |||
| HBS0605LD-2 | 4.5 | 0.13 | 0.65 | 3500 | 0.10 | 3.71 | 10.24 | 0.40 | 32.4 | |||
| HBB0605HD-2 | BALL | 4.5 | 0.23 | 1.15 | 4500 | 0.13 | 4.72 | 17.97 | 0.71 | 41.3 | ||
| HBB0605MD-2 | 4.5 | 0.15 | 0.75 | 4000 | 0.12 | 4.35 | 12.23 | 0.48 | 37.9 | |||
| HBB0605LD-2 | 4.5 | 0.13 | 0.65 | 3500 | 0.10 | 3.71 | 10.24 | 0.40 | 32.4 | |||
| HBS0612HD-2 | SLEEVE | 12 | 9.5 | 0.13 | 1.56 | 4500 | 0.13 | 4.72 | 17.97 | 0.71 | 41.3 | |
| HBS0612MD-2 | 9.5 | 0.10 | 1.20 | 4000 | 0.12 | 4.35 | 12.23 | 0.48 | 37.9 | |||
| HBS0612LD-2 | 9.5 | 0.08 | 0.96 | 3500 | 0.10 | 3.71 | 10.24 | 0.40 | 32.4 | |||
| HBB0612HD-2 | BALL | 9.5 | 0.13 | 1.56 | 4500 | 0.13 | 4.72 | 17.97 | 0.71 | 41.3 | ||
| HBB0612MD-2 | 9.5 | 0.10 | 1.20 | 4000 | 0.12 | 4.35 | 12.23 | 0.48 | 37.9 | |||
| HBB0612LD-2 | 9.5 | 0.08 | 0.96 | 3500 | 0.10 | 3.71 | 10.24 | 0.40 | 32.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
