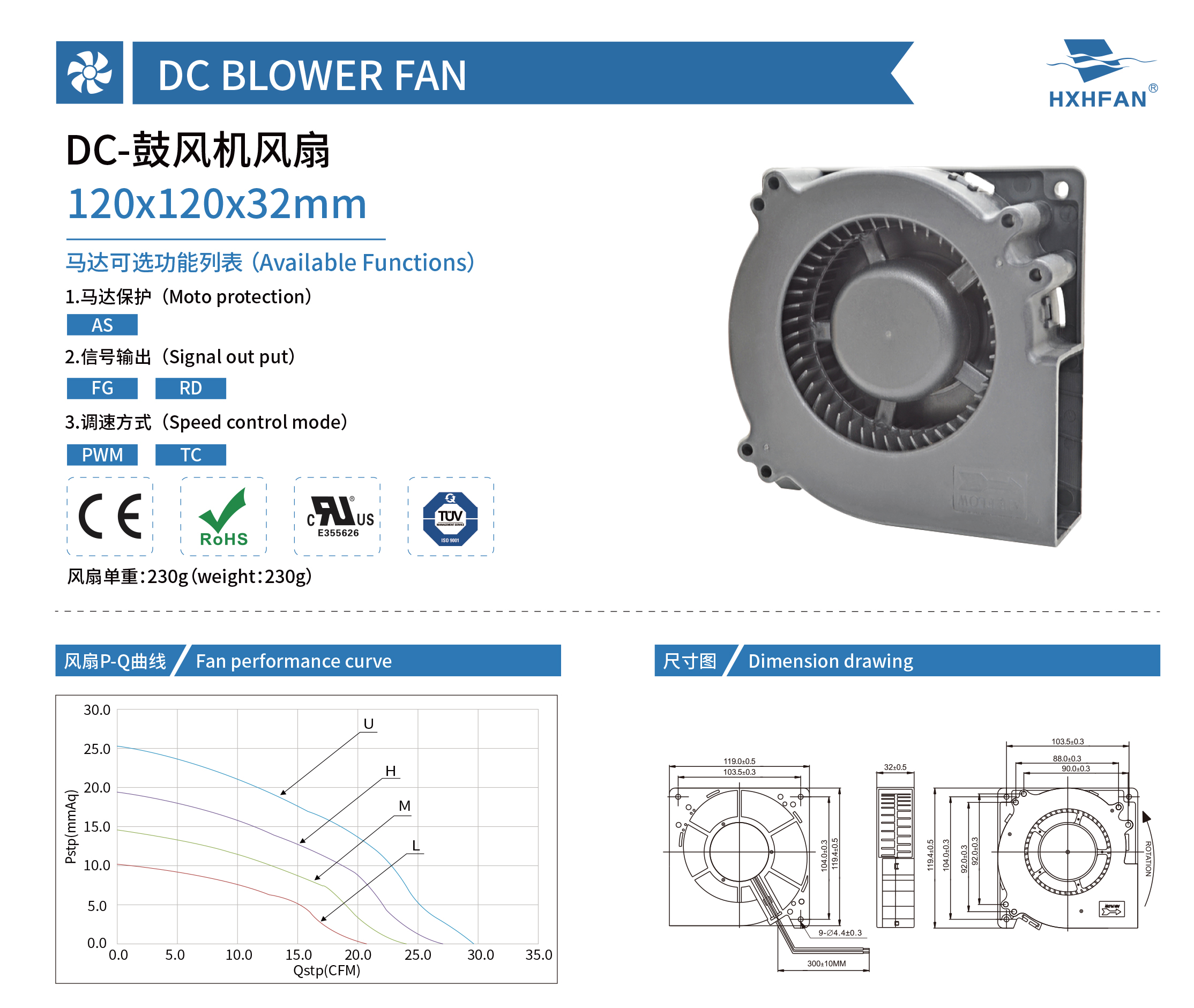

| 120×120×32MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS1212HY | -A | Sleeve | 12 | 5.0 | 1.10 | 13.20 | 2800 | 0.76 | 26.75 | 19.23 | 0.76 | 50.4 |
| HBS1212MY | -A | 5.0 | 0.85 | 10.20 | 2500 | 0.68 | 23.88 | 14.45 | 0.57 | 47.9 | ||
| HBS1212LY | -A | 5.0 | 0.45 | 5.40 | 2100 | 0.58 | 20.49 | 10.09 | 0.40 | 44.5 | ||
| HBB1212UY | -A | Ball | 5.0 | 1.40 | 16.80 | 3100 | 0.84 | 29.68 | 25.19 | 0.99 | 53.9 | |
| HBB1212HY | -A | 5.0 | 1.10 | 13.20 | 2800 | 0.76 | 26.75 | 19.23 | 0.76 | 50.4 | ||
| HBB1212MY | -A | 5.0 | 0.85 | 10.20 | 2500 | 0.68 | 23.88 | 14.45 | 0.57 | 47.9 | ||
| HBB1212LY | -A | 5.0 | 0.45 | 5.40 | 2100 | 0.58 | 20.49 | 10.09 | 0.40 | 44.5 | ||
| HBS1224HY | -A | Sleeve | 24 | 12.0 | 0.55 | 13.20 | 2800 | 0.76 | 26.75 | 19.23 | 0.76 | 50.4 |
| HBS1224MY | -A | 12.0 | 0.45 | 10.80 | 2500 | 0.68 | 23.88 | 14.45 | 0.57 | 47.9 | ||
| HBS1224LY | -A | 12.0 | 0.30 | 7.20 | 2100 | 0.58 | 20.49 | 10.09 | 0.40 | 44.5 | ||
| HBB1224UY | -A | Ball | 12.0 | 0.72 | 17.28 | 3100 | 0.84 | 29.68 | 25.19 | 0.99 | 53.9 | |
| HBB1224HY | -A | 12.0 | 0.55 | 13.20 | 2800 | 0.76 | 26.75 | 19.23 | 0.76 | 50.4 | ||
| HBB1224MY | -A | 12.0 | 0.45 | 10.80 | 2500 | 0.68 | 23.88 | 14.45 | 0.57 | 47.9 | ||
| HBB1224LY | -A | 12.0 | 0.30 | 7.20 | 2100 | 0.58 | 20.49 | 10.09 | 0.40 | 44.5 | ||
| HBS1248HY | -A | Sleeve | 48 | 24.0 | 0.35 | 16.80 | 2800 | 0.76 | 26.75 | 19.23 | 0.76 | 50.4 |
| HBS1248MY | -A | 24.0 | 0.24 | 11.52 | 2500 | 0.68 | 23.88 | 14.45 | 0.57 | 47.9 | ||
| HBS1248LY | -A | 24.0 | 0.18 | 8.64 | 2100 | 0.58 | 20.49 | 10.09 | 0.40 | 44.5 | ||
| HBB1248HY | -A | Ball | 24.0 | 0.35 | 16.80 | 2800 | 0.76 | 26.75 | 19.23 | 0.76 | 50.4 | |
| HBB1248MY | -A | 24.0 | 0.24 | 11.52 | 2500 | 0.68 | 23.88 | 14.45 | 0.57 | 47.9 | ||
| HBB1248LY | -A | 24.0 | 0.18 | 8.64 | 2100 | 0.58 | 20.49 | 10.09 | 0.40 | 44.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
