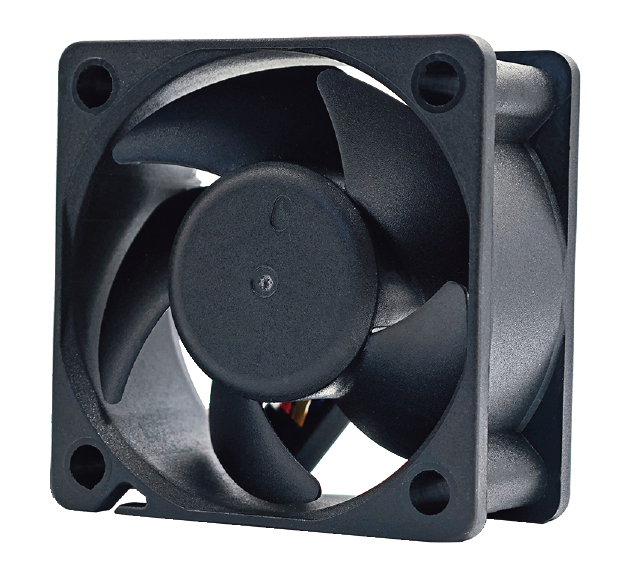

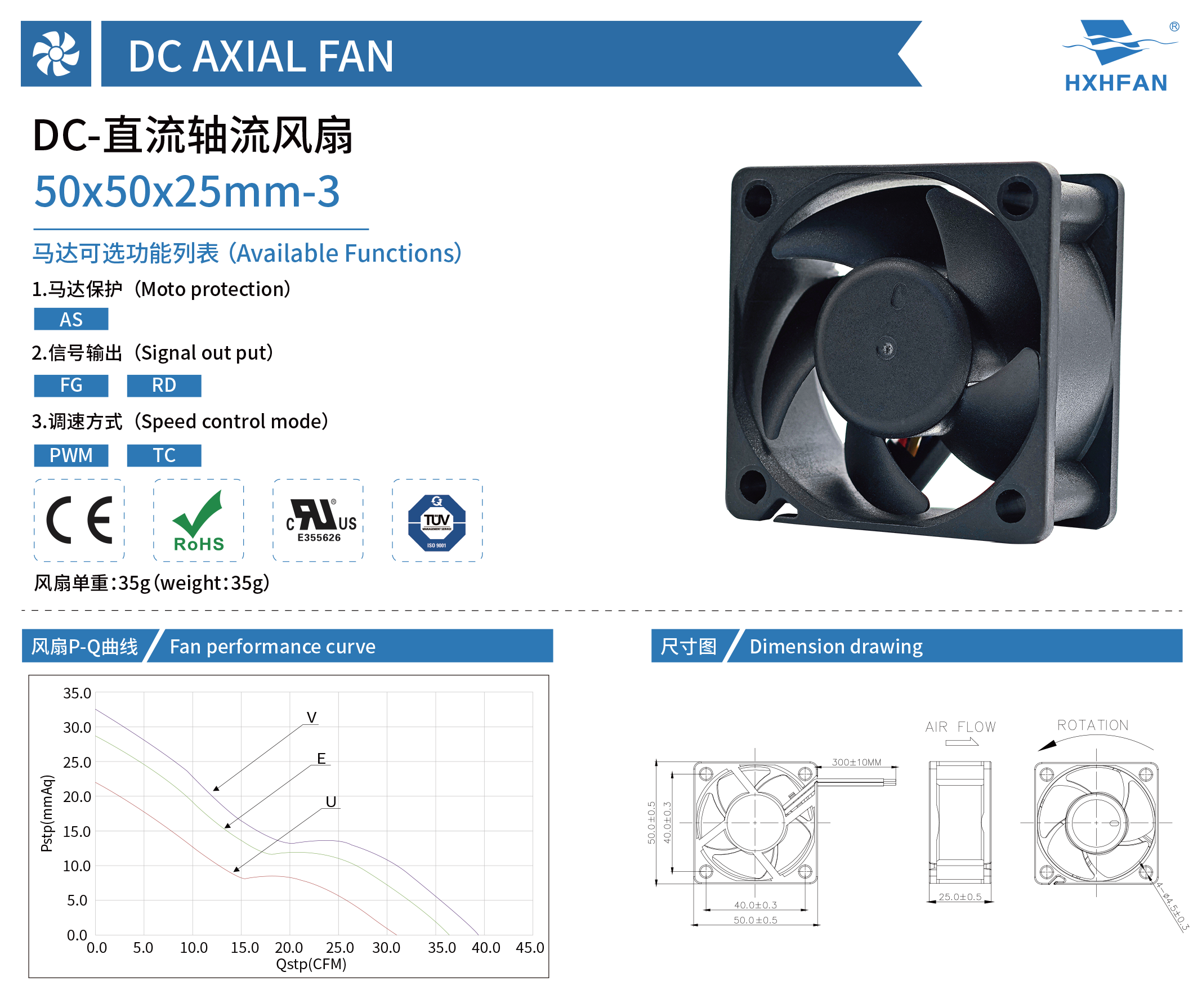

| 50×50×25-3MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0512VA-3 | Ball | 12 | 7.0 | 0.65 | 7.80 | 15000 | 1.11 | 39.38 | 32.48 | 1.28 | 55.7 | |
| HDB0512EA-3 | 7.0 | 0.54 | 6.48 | 14000 | 1.03 | 36.23 | 28.75 | 1.13 | 51.9 | |||
| HDB0512UA-3 | 7.0 | 0.34 | 4.08 | 12000 | 0.87 | 30.82 | 21.96 | 0.86 | 50.6 | |||
| HDB0524VA-3 | Ball | 24 | 12.0 | 0.33 | 3.96 | 15000 | 1.11 | 39.38 | 32.48 | 1.28 | 55.7 | |
| HDB0524EA-3 | 12.0 | 0.27 | 3.24 | 14000 | 1.03 | 36.23 | 28.75 | 1.13 | 51.9 | |||
| HDB0524UA-3 | 12.0 | 0.17 | 2.04 | 12000 | 0.87 | 30.82 | 21.96 | 0.86 | 50.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
