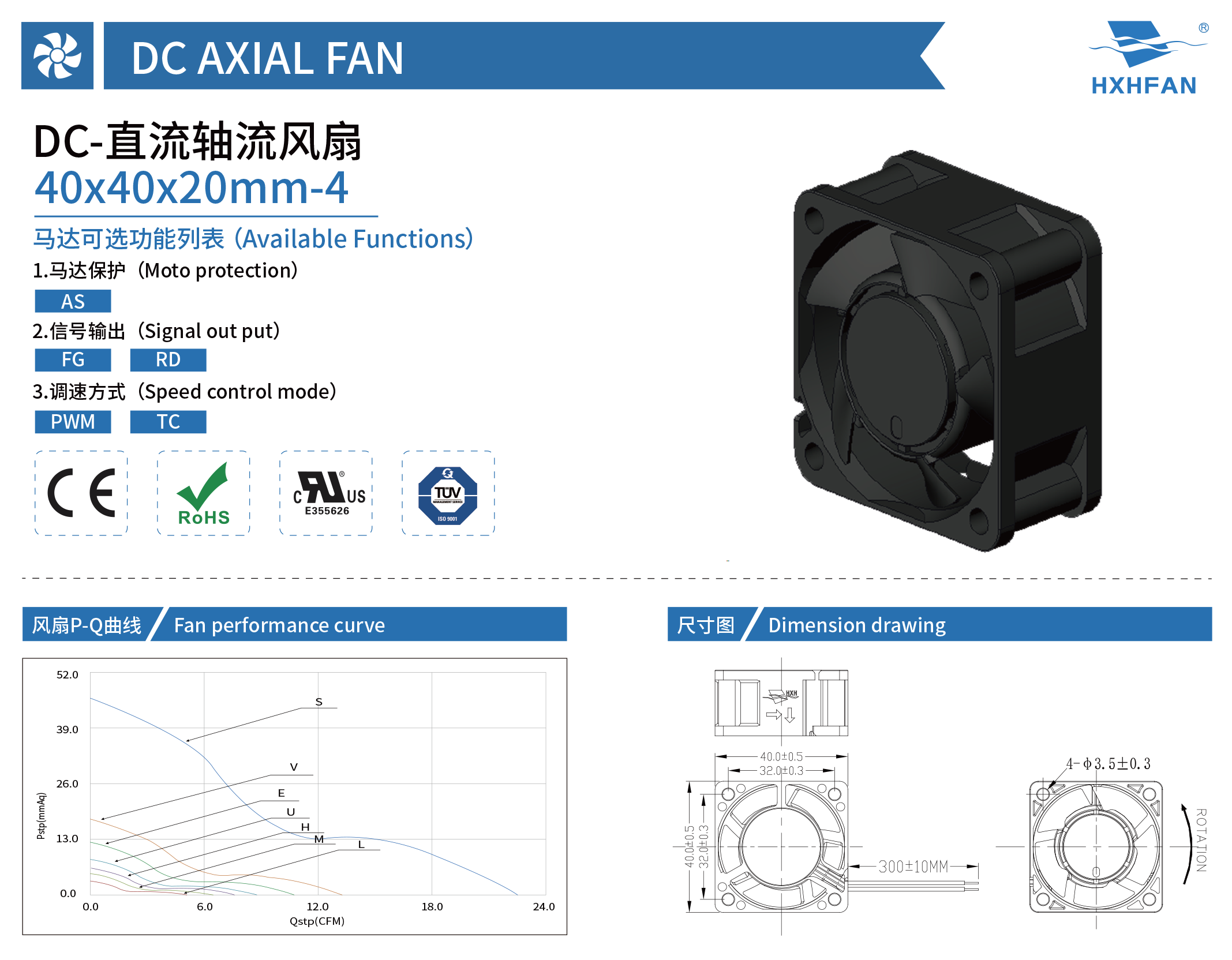

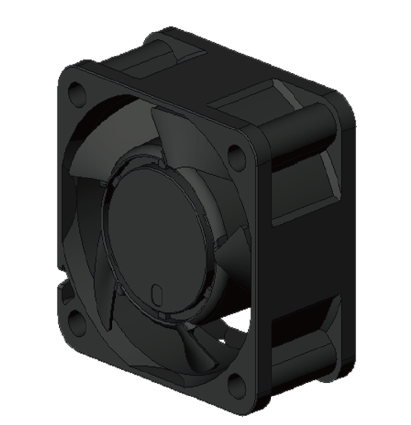

| 40×40×20MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0405UC-4 | Ball | 5 | 4.0 | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.39 | 0.33 | 33.8 | |
| HDB0405HC-4 | 4.0 | 0.22 | 1.10 | 7200 | 0.22 | 7.71 | 6.40 | 0.25 | 30.3 | |||
| HDB0405MC-4 | 4.0 | 0.16 | 0.80 | 6200 | 0.19 | 6.60 | 5.07 | 0.20 | 26.0 | |||
| HDB0405LC-4 | 4.0 | 0.14 | 0.70 | 5000 | 0.15 | 5.21 | 3.27 | 0.13 | 19.5 | |||
| HDB0412SC-4 | Ball | 12 | 7.0 | 0.80 | 9.60 | 20000 | 0.64 | 22.49 | 46.04 | 1.81 | 56.3 | |
| HDB0412VC-4 | 7.0 | 0.30 | 3.60 | 12000 | 0.38 | 13.32 | 17.85 | 0.70 | 45.9 | |||
| HDB0412EC-4 | 7.0 | 0.20 | 2.40 | 10000 | 0.31 | 10.83 | 12.40 | 0.49 | 41.4 | |||
| HDB0412UC-4 | 7.0 | 0.12 | 1.44 | 8200 | 0.25 | 8.90 | 8.39 | 0.33 | 33.8 | |||
| HDB0412HC-4 | 7.0 | 0.10 | 1.20 | 7200 | 0.22 | 7.71 | 6.40 | 0.25 | 30.3 | |||
| HDB0412MC-4 | 7.0 | 0.08 | 0.96 | 6200 | 0.19 | 6.60 | 5.07 | 0.20 | 26.0 | |||
| HDB0412LC-4 | 7.0 | 0.06 | 0.72 | 5000 | 0.15 | 5.21 | 3.27 | 0.13 | 19.5 | |||
| HDB0424SC-4 | Ball | 24 | 12.0 | 0.50 | 12.00 | 20000 | 0.64 | 22.49 | 46.04 | 1.81 | 56.3 | |
| HDB0424VC-4 | 12.0 | 0.25 | 6.00 | 12000 | 0.38 | 13.32 | 17.85 | 0.70 | 45.9 | |||
| HDB0424EC-4 | 12.0 | 0.18 | 4.32 | 10000 | 0.31 | 10.83 | 12.40 | 0.49 | 41.4 | |||
| HDB0424UC-4 | 12.0 | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.39 | 0.33 | 33.8 | |||
| HDB0424HC-4 | 12.0 | 0.07 | 1.68 | 7200 | 0.22 | 7.71 | 6.40 | 0.25 | 30.3 | |||
| HDB0424MC-4 | 12.0 | 0.06 | 1.44 | 6200 | 0.19 | 6.60 | 5.07 | 0.20 | 26.0 | |||
| HDB0424LC-4 | 12.0 | 0.05 | 1.20 | 5000 | 0.15 | 5.21 | 3.27 | 0.13 | 19.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
