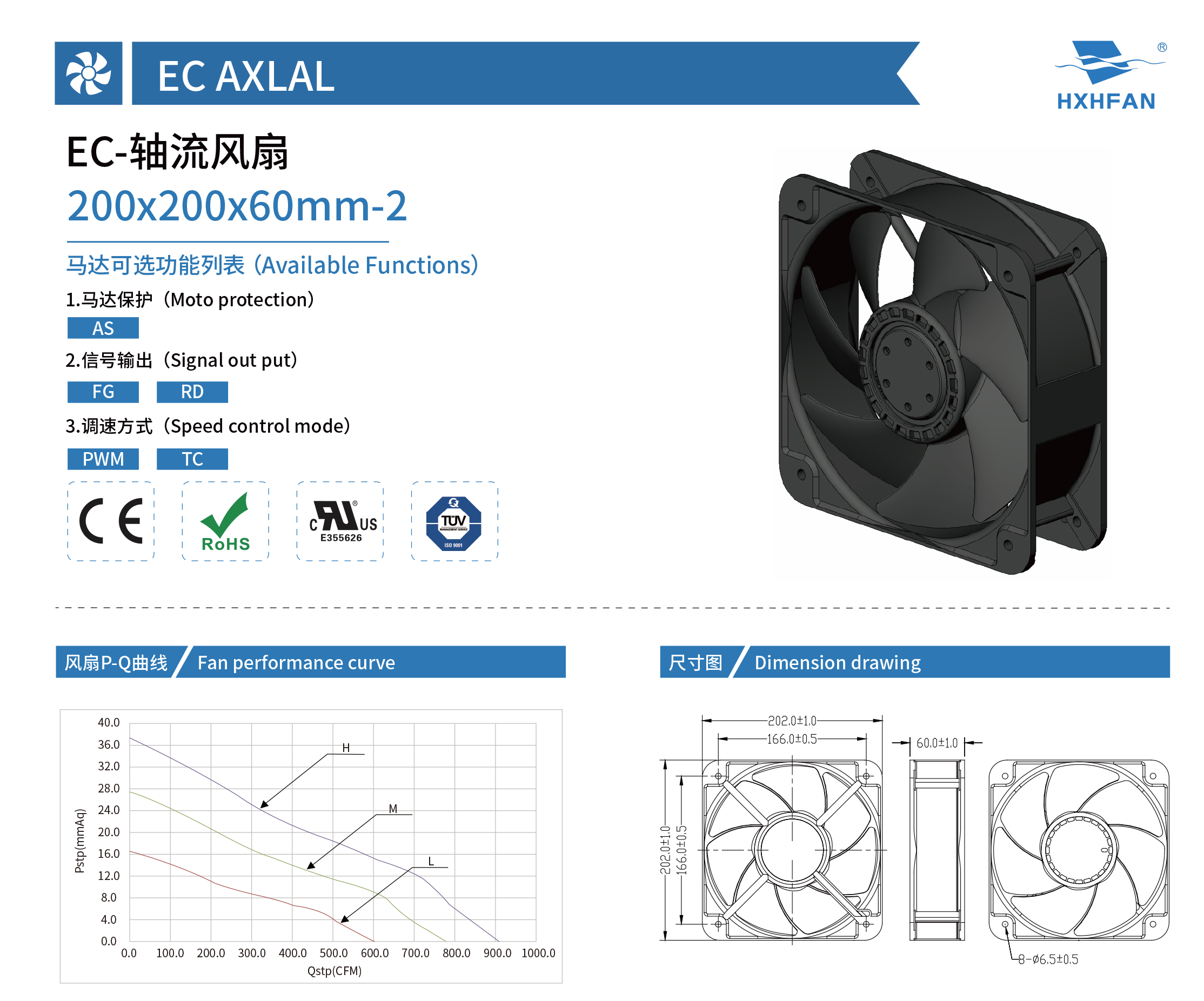

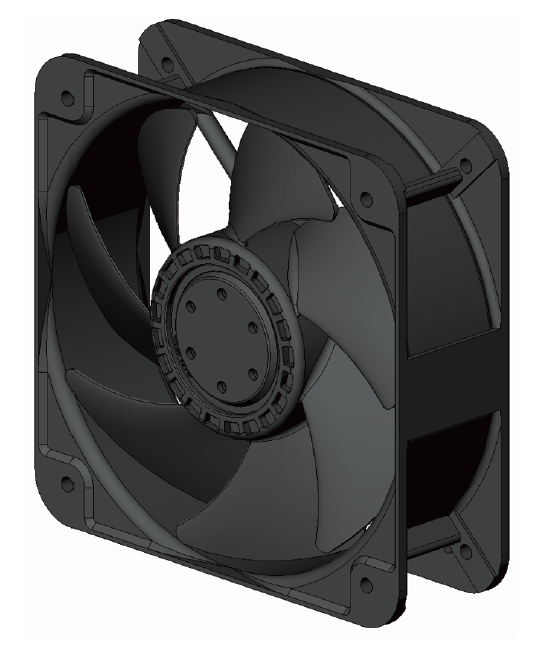

| 200×200×60MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB200230HW-2 | -A | Ball | 110-230 | 90-260 | 50/60 | 146.90 | 5000 | 25.63 | 905.60 | 36.20 | 1.43 | 73.3 |
| HEB200230MW-2 | -A | 90-260 | 50/60 | 93.00 | 4500 | 22.05 | 779.10 | 27.40 | 1.08 | 69.9 | ||
| HEB200230LW-2 | -A | 90-260 | 50/60 | 44.10 | 3500 | 17.15 | 606.00 | 16.60 | 0.65 | 64.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
