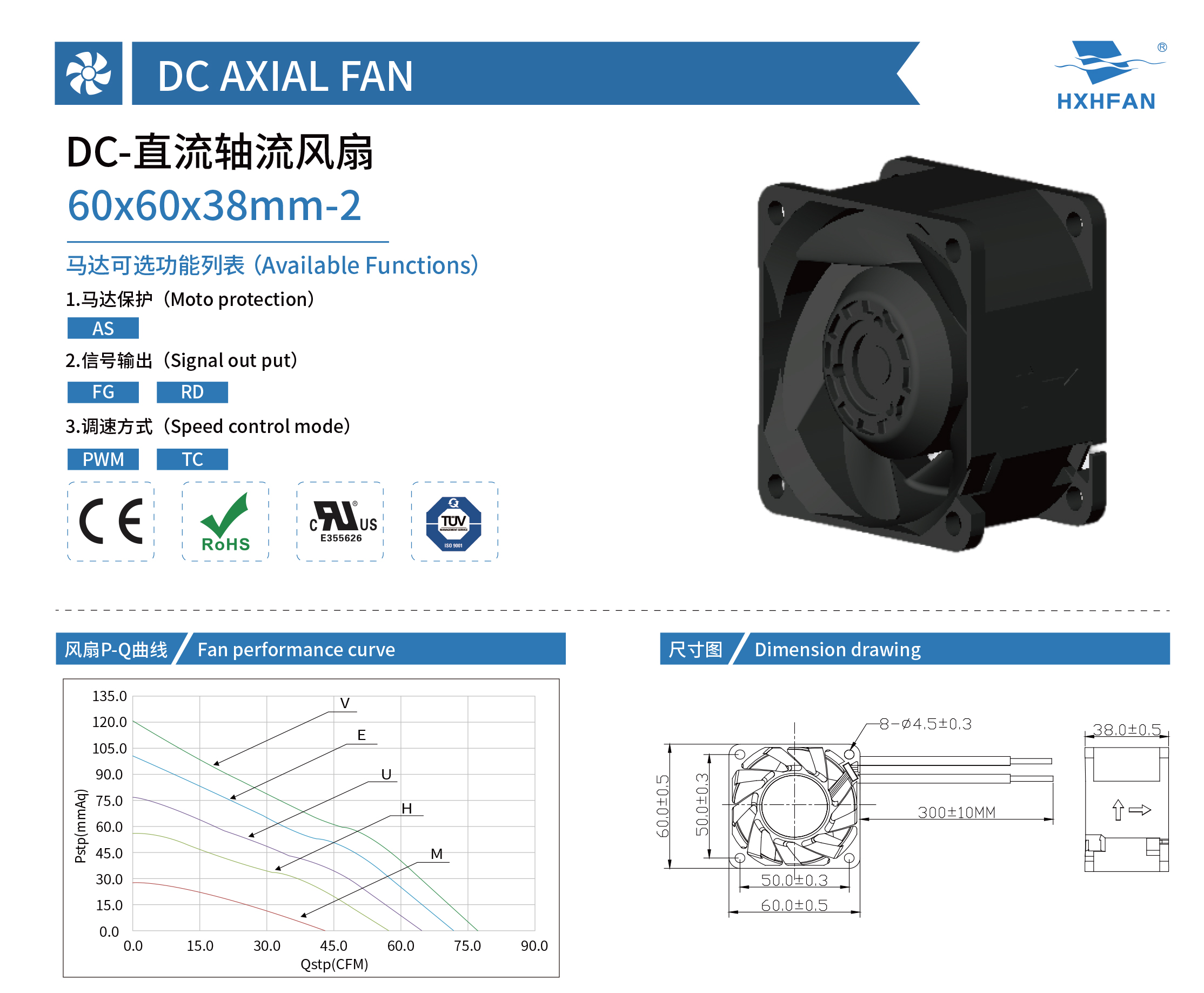

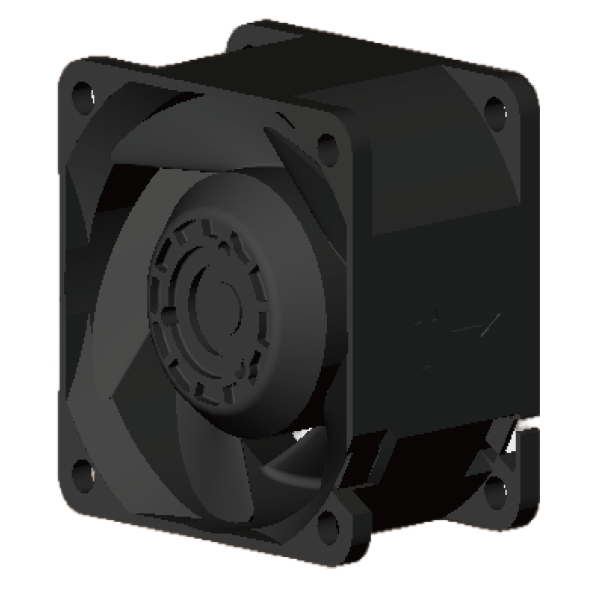

| 60×60×38MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612VF-2 | -A | Ball | 12 | 6.0 | 2.80 | 33.60 | 21500 | 2.18 | 77.01 | 120.55 | 4.75 | 71.3 |
| HDB0612EF-2 | 6.0 | 2.10 | 25.20 | 20000 | 2.03 | 71.61 | 100.52 | 3.96 | 69.8 | |||
| HDB0612UF-2 | 6.0 | 1.60 | 19.20 | 18000 | 1.82 | 64.45 | 76.64 | 3.02 | 67.5 | |||
| HDB0612HF-2 | 6.0 | 1.20 | 14.40 | 16000 | 1.62 | 57.29 | 55.99 | 2.20 | 64.9 | |||
| HDB0612MF-2 | 9.0 | 0.60 | 7.20 | 12000 | 1.22 | 42.97 | 27.40 | 1.08 | 58.7 | |||
| HDB0624VF-2 | -A | Ball | 24 | 12.0 | 1.47 | 35.28 | 21500 | 2.18 | 77.01 | 120.55 | 4.75 | 71.3 |
| HDB0624EF-2 | 12.0 | 1.09 | 26.16 | 20000 | 2.03 | 71.61 | 100.52 | 3.96 | 69.8 | |||
| HDB0624UF-2 | 12.0 | 0.83 | 19.92 | 18000 | 1.82 | 64.45 | 76.64 | 3.02 | 67.5 | |||
| HDB0624HF-2 | 12.0 | 0.62 | 14.88 | 16000 | 1.62 | 57.29 | 55.99 | 2.20 | 64.9 | |||
| HDB0624MF-2 | 18.0 | 0.31 | 7.44 | 12000 | 1.22 | 42.97 | 27.40 | 1.08 | 58.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
