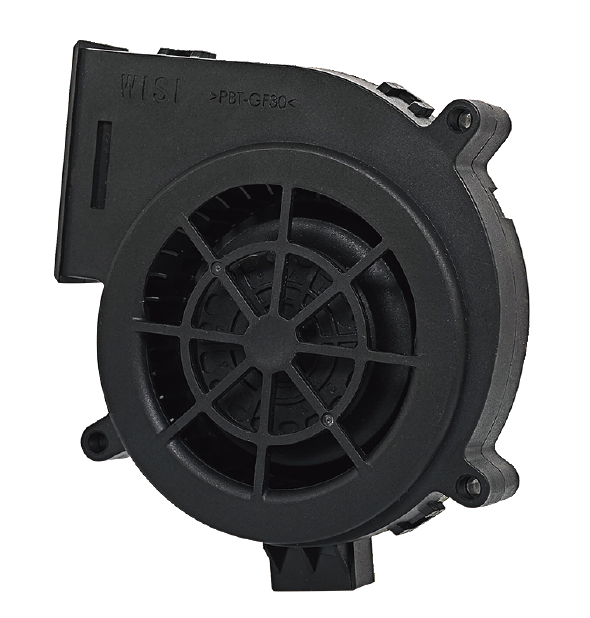

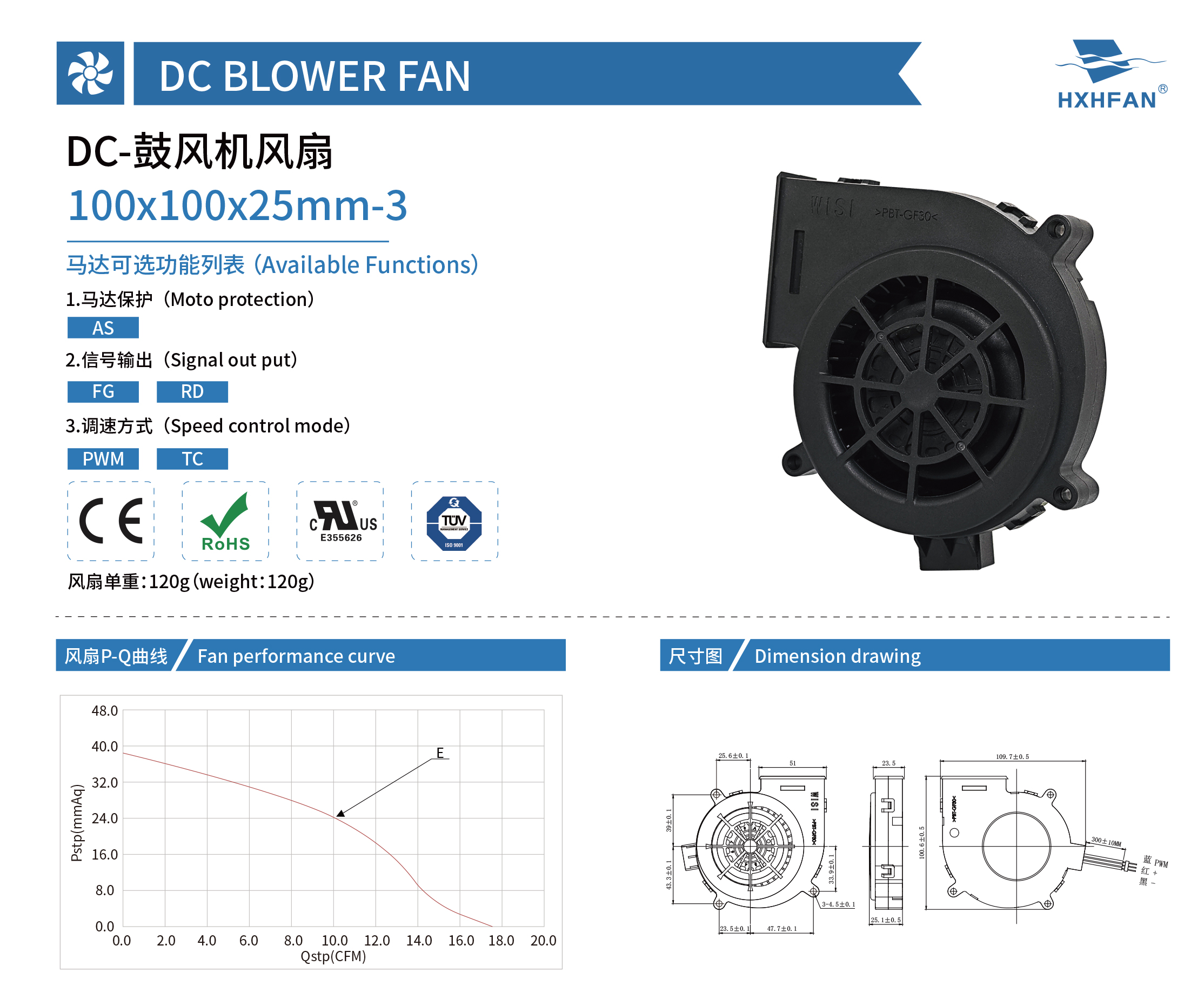

| 100*100*25MM-3左出风 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBB1013EA-3 | -P | BALL | 13.5 | 6.0 | 0.54 | 7.29 | 4100 | 0.50 | 17.50 | 38.30 | 1.51 | 54.0 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
