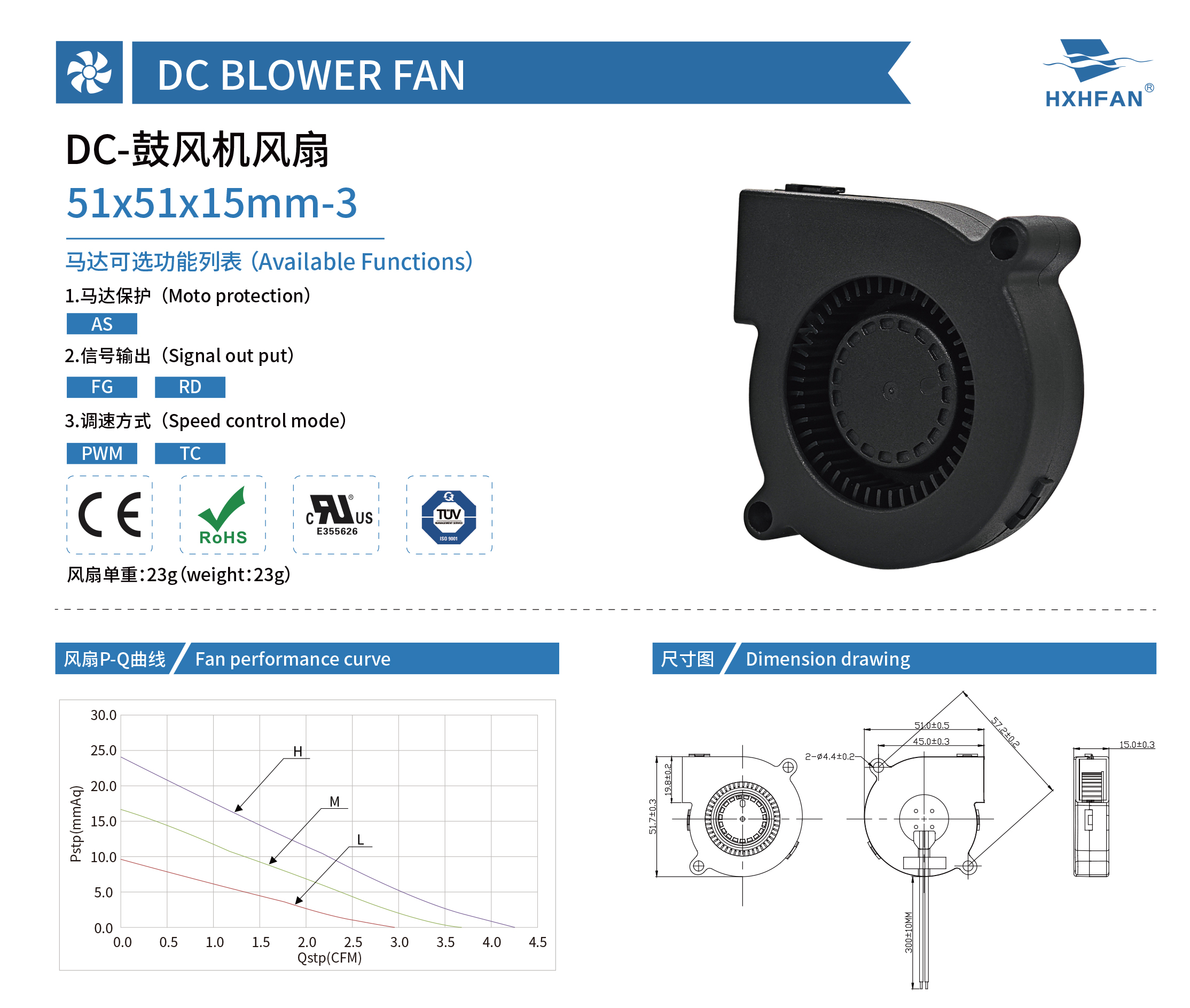

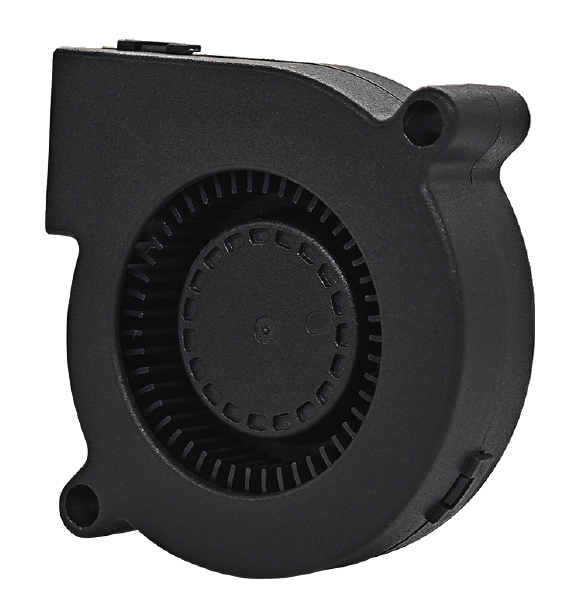

| 51×51×15MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0505HD-3 | -A | Hydraulic | 5 | 4.0 | 0.33 | 1.65 | 6500 | 0.12 | 4.24 | 23.97 | 0.94 | 40.8 |
| HBH0505MD-3 | 4.0 | 0.28 | 1.40 | 5500 | 0.10 | 3.69 | 16.65 | 0.66 | 36.2 | |||
| HBH0505LD-3 | 4.0 | 0.14 | 0.70 | 4500 | 0.08 | 2.94 | 9.68 | 0.38 | 23.9 | |||
| HBB0505HD-3 | -A | Ball | 4.0 | 0.33 | 1.65 | 6500 | 0.12 | 4.24 | 23.97 | 0.94 | 40.8 | |
| HBB0505MD-3 | 4.0 | 0.28 | 1.40 | 5500 | 0.10 | 3.69 | 16.65 | 0.66 | 36.2 | |||
| HBB0505LD-3 | 4.0 | 0.14 | 0.70 | 4500 | 0.08 | 2.94 | 9.68 | 0.38 | 23.9 | |||
| HBH0512HD-3 | Hydraulic | 12 | 5.0 | 0.18 | 2.16 | 6500 | 0.12 | 4.24 | 23.97 | 0.94 | 40.8 | |
| HBH0512MD-3 | 5.0 | 0.12 | 1.44 | 5500 | 0.10 | 3.69 | 16.65 | 0.66 | 36.2 | |||
| HBH0512LD-3 | 5.0 | 0.08 | 0.96 | 4500 | 0.08 | 2.94 | 9.68 | 0.38 | 23.9 | |||
| HBB0512HD-3 | Ball | 5.0 | 0.18 | 2.16 | 6500 | 0.12 | 4.24 | 23.97 | 0.94 | 40.8 | ||
| HBB0512MD-3 | 5.0 | 0.12 | 1.44 | 5500 | 0.10 | 3.69 | 16.65 | 0.66 | 36.2 | |||
| HBB0512LD-3 | 5.0 | 0.08 | 0.96 | 4500 | 0.08 | 2.94 | 9.68 | 0.38 | 23.9 | |||
| HBH0524HD-3 | Hydraulic | 24 | 12.0 | 0.12 | 2.88 | 6500 | 0.12 | 4.24 | 23.97 | 0.94 | 40.8 | |
| HBH0524MD-3 | 12.0 | 0.08 | 1.92 | 5500 | 0.10 | 3.69 | 16.65 | 0.66 | 36.2 | |||
| HBH0524LD-3 | 12.0 | 0.05 | 1.20 | 4500 | 0.08 | 2.94 | 9.68 | 0.38 | 23.9 | |||
| HBB0524HD-3 | Ball | 12.0 | 0.12 | 2.88 | 6500 | 0.12 | 4.24 | 23.97 | 0.94 | 40.8 | ||
| HBB0524MD-3 | 12.0 | 0.08 | 1.92 | 5500 | 0.10 | 3.69 | 16.65 | 0.66 | 36.2 | |||
| HBB0524LD-3 | 12.0 | 0.05 | 1.20 | 4500 | 0.08 | 2.94 | 9.68 | 0.38 | 23.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
