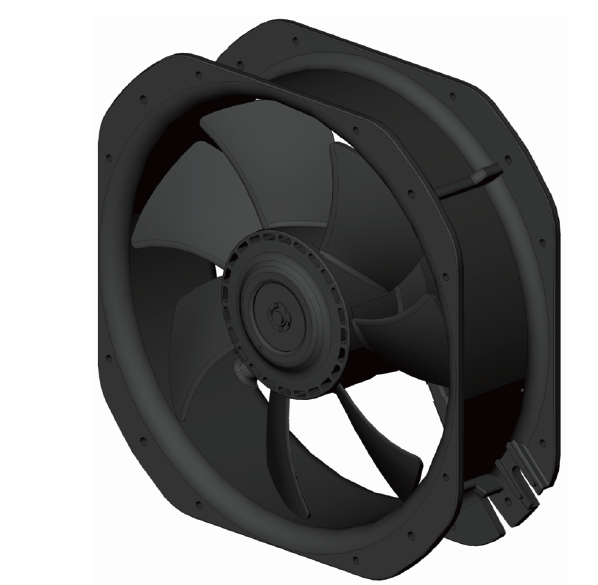

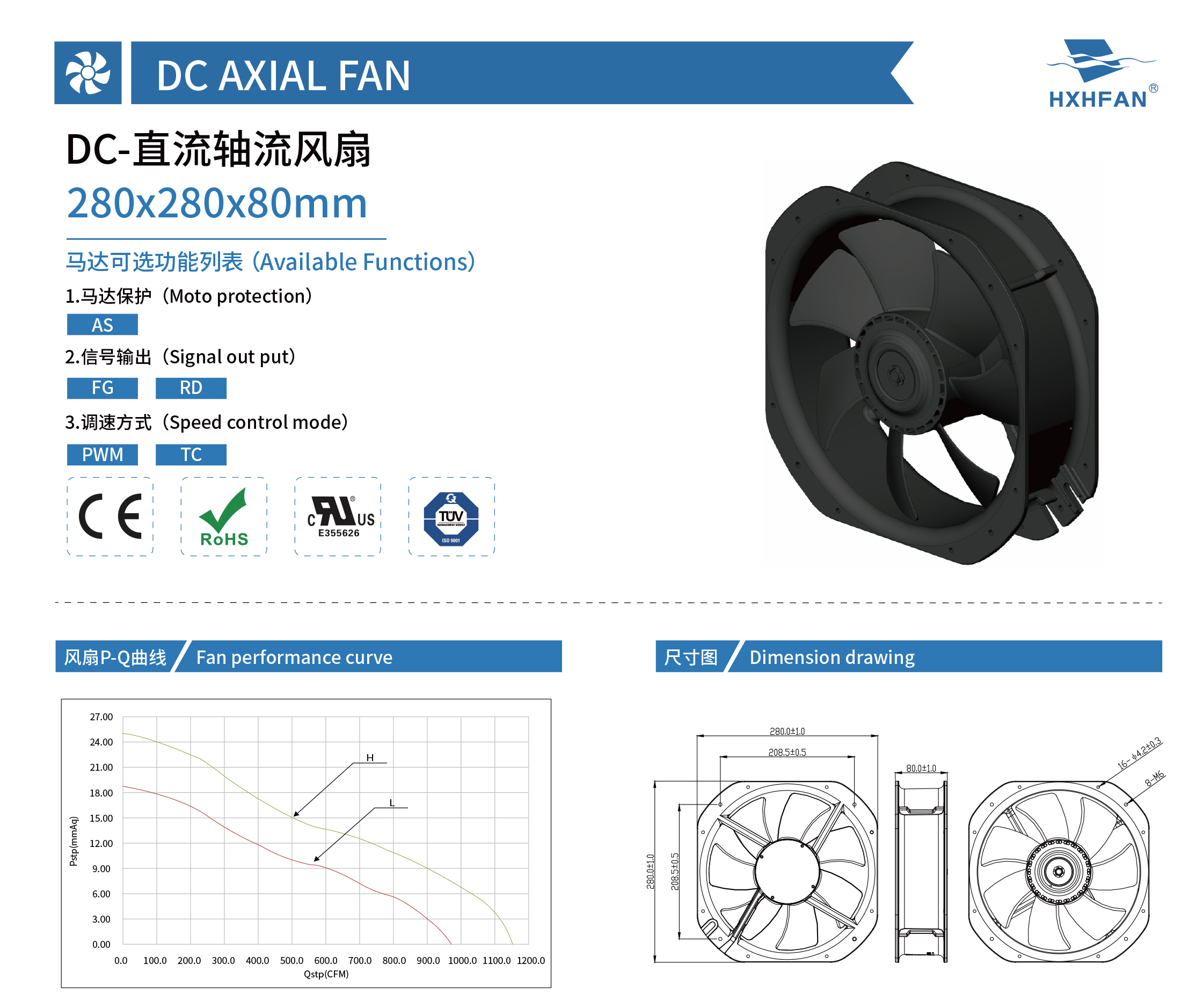

| 280×280×80MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB28024H80 | -A | Ball | 24 | 18.0 | 5.45 | 130.80 | 3200 | 32.57 | 1151.00 | 24.90 | 0.98 | 68.5 |
| HDB28024L80 | -A | Ball | 18.0 | 3.27 | 78.48 | 2700 | 27.48 | 971.20 | 18.70 | 0.74 | 65.0 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
