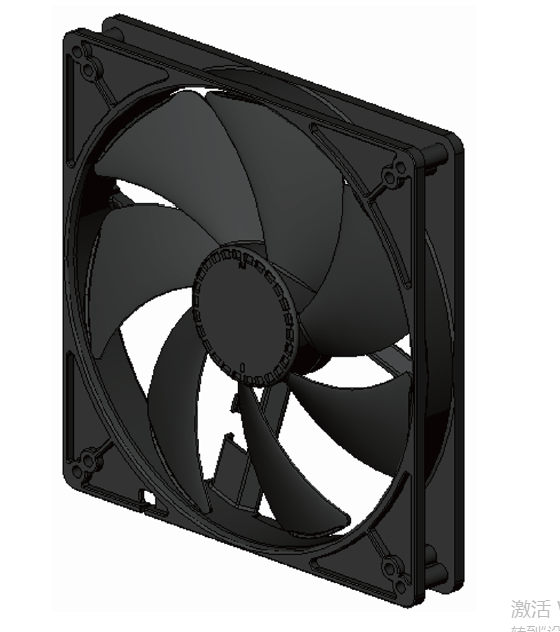

| 180×180×25MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB18012HA-2 | -A | Ball | 12 | 6.0 | 0.50 | 6.00 | 2300 | 5.18 | 182.94 | 4.80 | 0.19 | 47.0 |
| HDB18012MA-2 | -A | 6.0 | 0.33 | 3.96 | 2000 | 4.35 | 153.70 | 3.70 | 0.15 | 41.6 | ||
| HDB18012LA-2 | -A | 6.0 | 0.23 | 2.76 | 1800 | 4.00 | 141.50 | 2.80 | 0.11 | 39.3 | ||
| HDB18024HA-2 | -A | Ball | 24 | 12.0 | 0.25 | 6.00 | 2300 | 5.18 | 182.94 | 4.80 | 0.19 | 47.0 |
| HDB18024MA-2 | -A | 12.0 | 0.17 | 4.08 | 2000 | 4.35 | 153.70 | 3.70 | 0.15 | 41.6 | ||
| HDB18024LA-2 | -A | 12.0 | 0.12 | 2.88 | 1800 | 4.00 | 141.50 | 2.80 | 0.11 | 39.3 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
