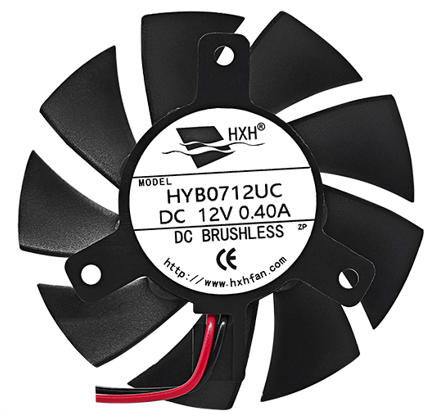

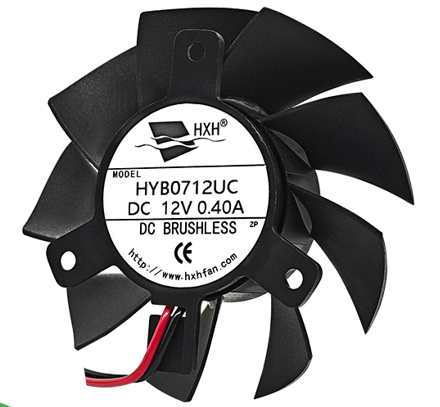

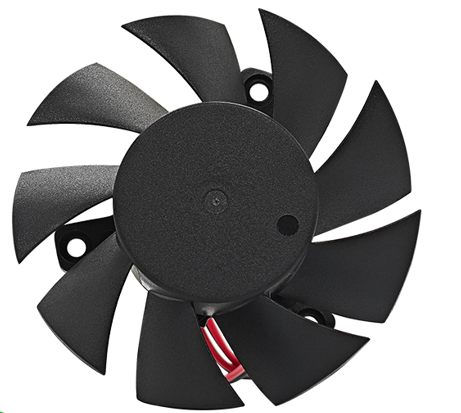

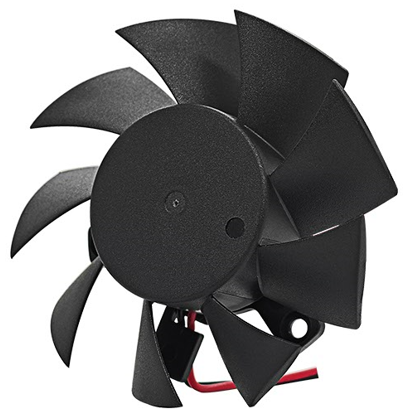

Product introduction:
| Size: | 70x70x20mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

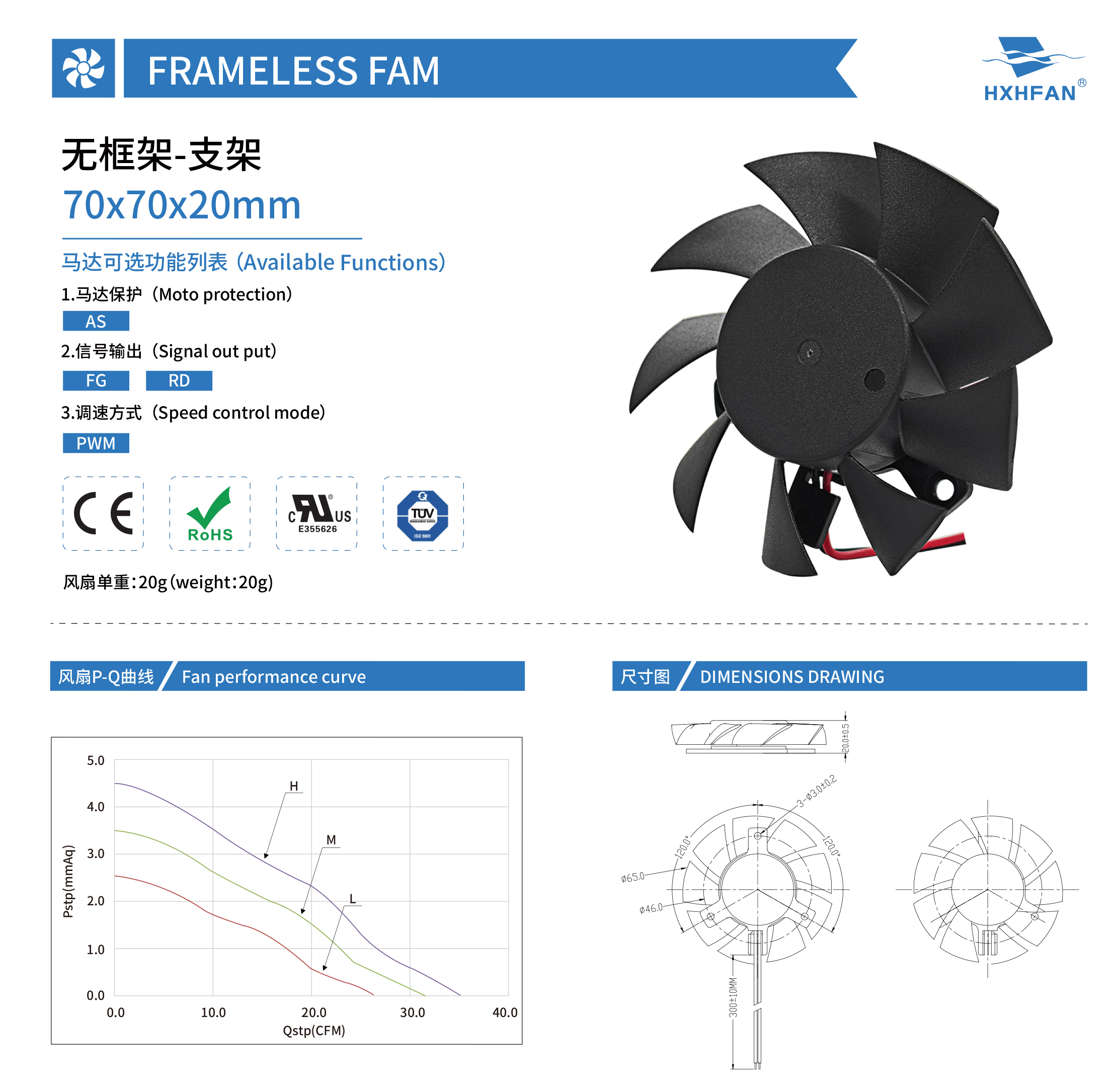

| 70×70×20MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0712HC | Hydraulic | 12 | 6.0 | 0.18 | 2.16 | 4000 | 0.99 | 35.05 | 4.52 | 0.18 | 37.3 | |
| HYH0712MC | 6.0 | 0.11 | 1.32 | 3500 | 0.89 | 31.30 | 3.51 | 0.14 | 34.2 | |||
| HYH0712LC | 6.0 | 0.06 | 0.72 | 3000 | 0.74 | 26.20 | 2.55 | 0.10 | 30.2 | |||
| HYB0712HC | Ball | 6.0 | 0.18 | 2.16 | 4000 | 0.99 | 35.05 | 4.52 | 0.18 | 37.3 | ||
| HYB0712MC | 6.0 | 0.11 | 1.32 | 3500 | 0.89 | 31.30 | 3.51 | 0.14 | 34.2 | |||
| HYB0712LC | 6.0 | 0.06 | 0.72 | 3000 | 0.74 | 26.20 | 2.55 | 0.10 | 30.2 | |||
