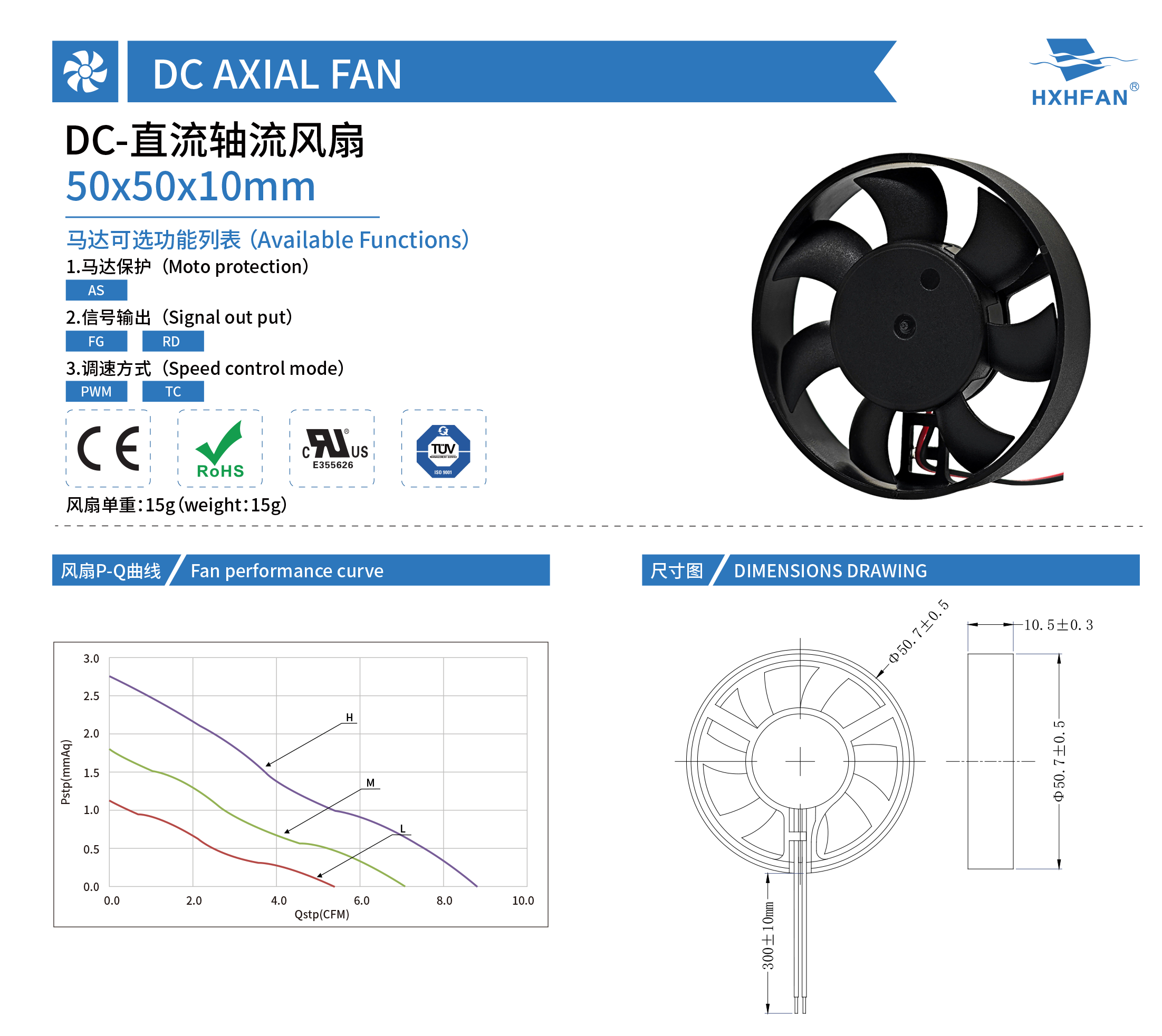

Product introduction:
| Size: | 50x50x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic bearing or two ball |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 50×50×10MM圆框 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0505HG | Hydraulic | 5 | 4.0 | 0.22 | 1.10 | 5000 | 0.25 | 8.79 | 2.68 | 0.11 | 26.1 | |
| HDH0505MG | 4.0 | 0.20 | 1.00 | 4000 | 0.20 | 7.01 | 1.79 | 0.07 | 22.6 | |||
| HDH0505LG | 4.5 | 0.16 | 0.80 | 3000 | 0.15 | 5.36 | 1.12 | 0.04 | 17.7 | |||
| HDB0505HG | Ball | 4.0 | 0.22 | 1.10 | 5000 | 0.25 | 8.79 | 2.68 | 0.11 | 26.1 | ||
| HDB0505MG | 4.0 | 0.20 | 1.00 | 4000 | 0.20 | 7.01 | 1.79 | 0.07 | 22.6 | |||
| HDB0505LG | 4.5 | 0.16 | 0.80 | 3000 | 0.15 | 5.36 | 1.12 | 0.04 | 17.7 | |||
| HDH0512HG | Hydraulic | 12 | 9.0 | 0.15 | 1.80 | 5000 | 0.25 | 8.79 | 2.68 | 0.11 | 26.1 | |
| HDH0512MG | 9.0 | 0.10 | 1.20 | 4000 | 0.20 | 7.01 | 1.79 | 0.07 | 22.6 | |||
| HDH0512LG | 9.0 | 0.08 | 0.96 | 3000 | 0.15 | 5.36 | 1.12 | 0.04 | 17.7 | |||
| HDB0512HG | Ball | 9.0 | 0.15 | 1.80 | 5000 | 0.25 | 8.79 | 2.68 | 0.11 | 26.1 | ||
| HDB0512MG | 9.0 | 0.10 | 1.20 | 4000 | 0.20 | 7.01 | 1.79 | 0.07 | 22.6 | |||
| HDB0512LG | 9.0 | 0.08 | 0.96 | 3000 | 0.15 | 5.36 | 1.12 | 0.04 | 17.7 | |||
| HDH0524HG | Hydraulic | 24 | 12.0 | 0.10 | 2.40 | 5000 | 0.25 | 8.79 | 2.68 | 0.11 | 26.1 | |
| HDH0524MG | 12.0 | 0.09 | 2.16 | 4000 | 0.20 | 7.01 | 1.79 | 0.07 | 22.6 | |||
| HDH0524LG | 12.0 | 0.06 | 1.44 | 3000 | 0.15 | 5.36 | 1.12 | 0.04 | 17.7 | |||
| HDB0524HG | Ball | 12.0 | 0.10 | 2.40 | 5000 | 0.25 | 8.79 | 2.68 | 0.11 | 26.1 | ||
| HDB0524MG | 12.0 | 0.09 | 2.16 | 4000 | 0.20 | 7.01 | 1.79 | 0.07 | 22.6 | |||
| HDB0524LG | 12.0 | 0.06 | 1.44 | 3000 | 0.15 | 5.36 | 1.12 | 0.04 | 17.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
