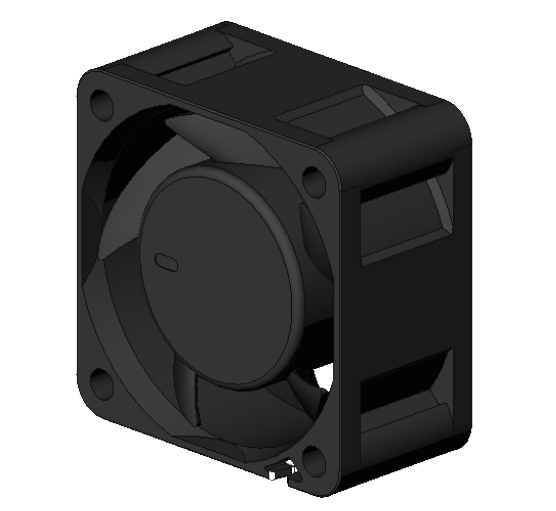

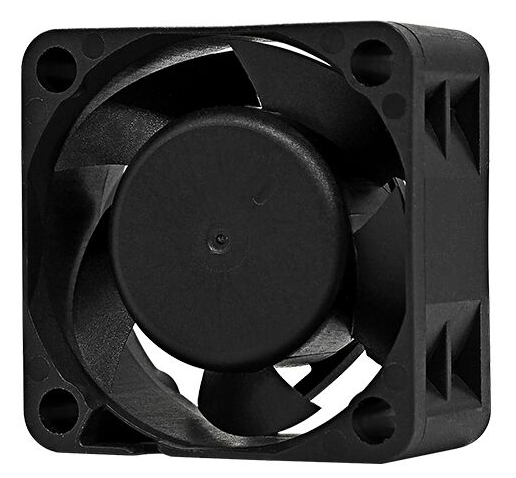

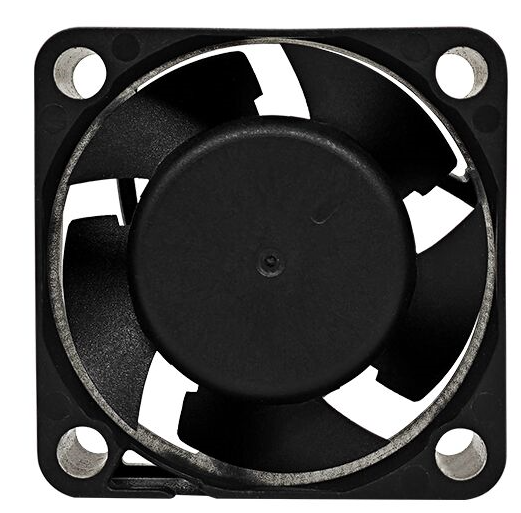

Product introduction:
| Size: | 40x40x20mm-3 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Two Ball Bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

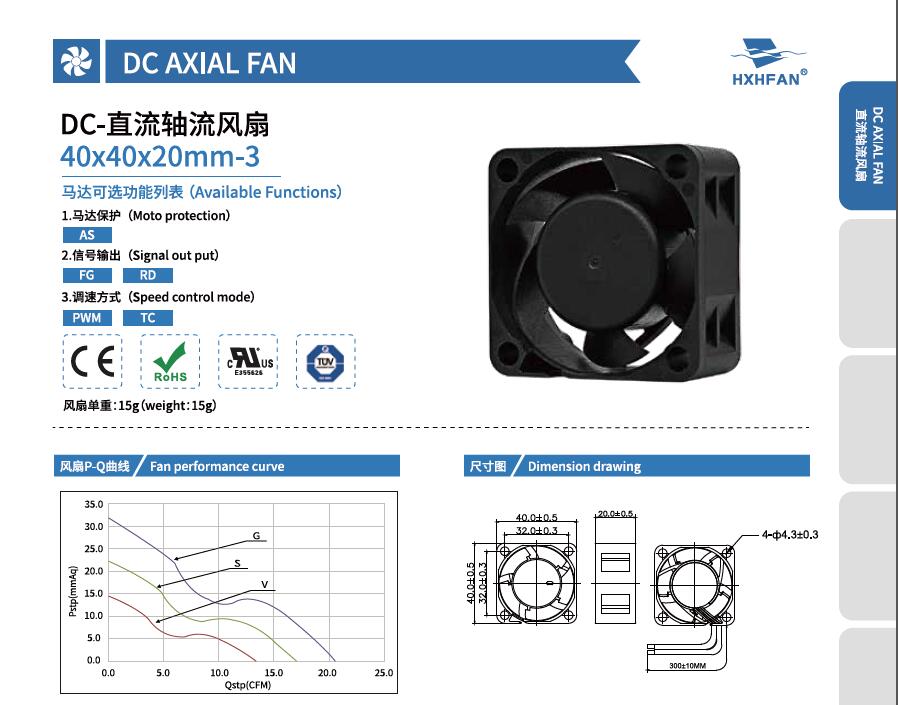

| 40*40*20MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

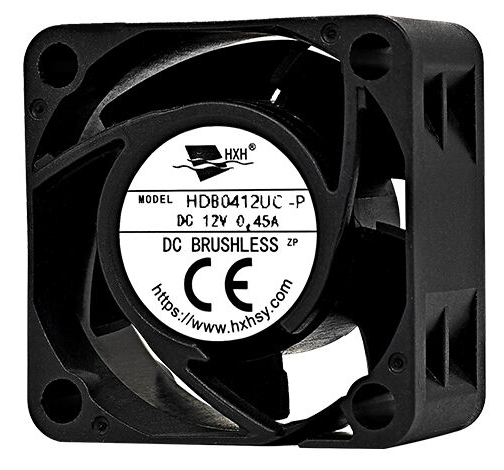

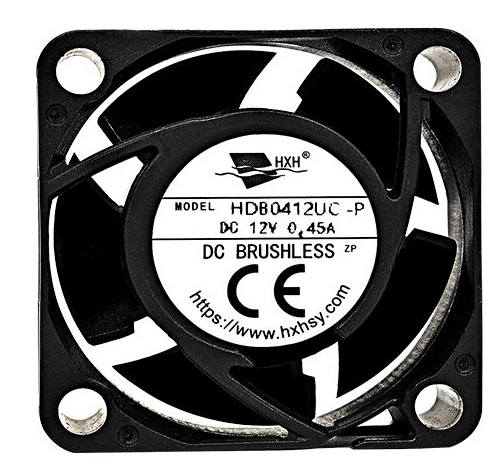

| HDB0412UC-3 | Ball | 12 | 7.0 | 0.45 | 5.40 | 17000 | 0.58 | 20.63 | 31.80 | 1.24 | 52.5 | |
| HDB0412HC-3 | 7.0 | 0.30 | 3.60 | 14000 | 0.48 | 17.10 | 22.30 | 0.87 | 46.5 | |||
| HDB0412MC-3 | 7.0 | 0.19 | 2.28 | 11000 | 0.38 | 13.40 | 14.40 | 0.56 | 39.4 | |||
| HDB0412LC-3 | 7.0 | 0.08 | 0.96 | 7000 | 0.24 | 8.40 | 6.00 | 0.23 | 29.4 | |||
| HDB0424UC-3 | Ball | 24 | 12.0 | 0.23 | 5.52 | 17000 | 0.58 | 20.63 | 31.80 | 1.24 | 52.5 | |
| HDB0424HC-3 | 12.0 | 0.15 | 3.60 | 14000 | 0.48 | 17.10 | 22.30 | 0.87 | 46.5 | |||
| HDB0424MC-3 | 12.0 | 0.10 | 2.40 | 11000 | 0.38 | 13.40 | 14.40 | 0.56 | 39.4 | |||
| HDB0424LC-3 | 12.0 | 0.04 | 0.96 | 7000 | 0.24 | 8.40 | 6.00 | 0.23 | 29.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
