Product introduction:
| Size: | 40x40x15mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Two Ball Bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

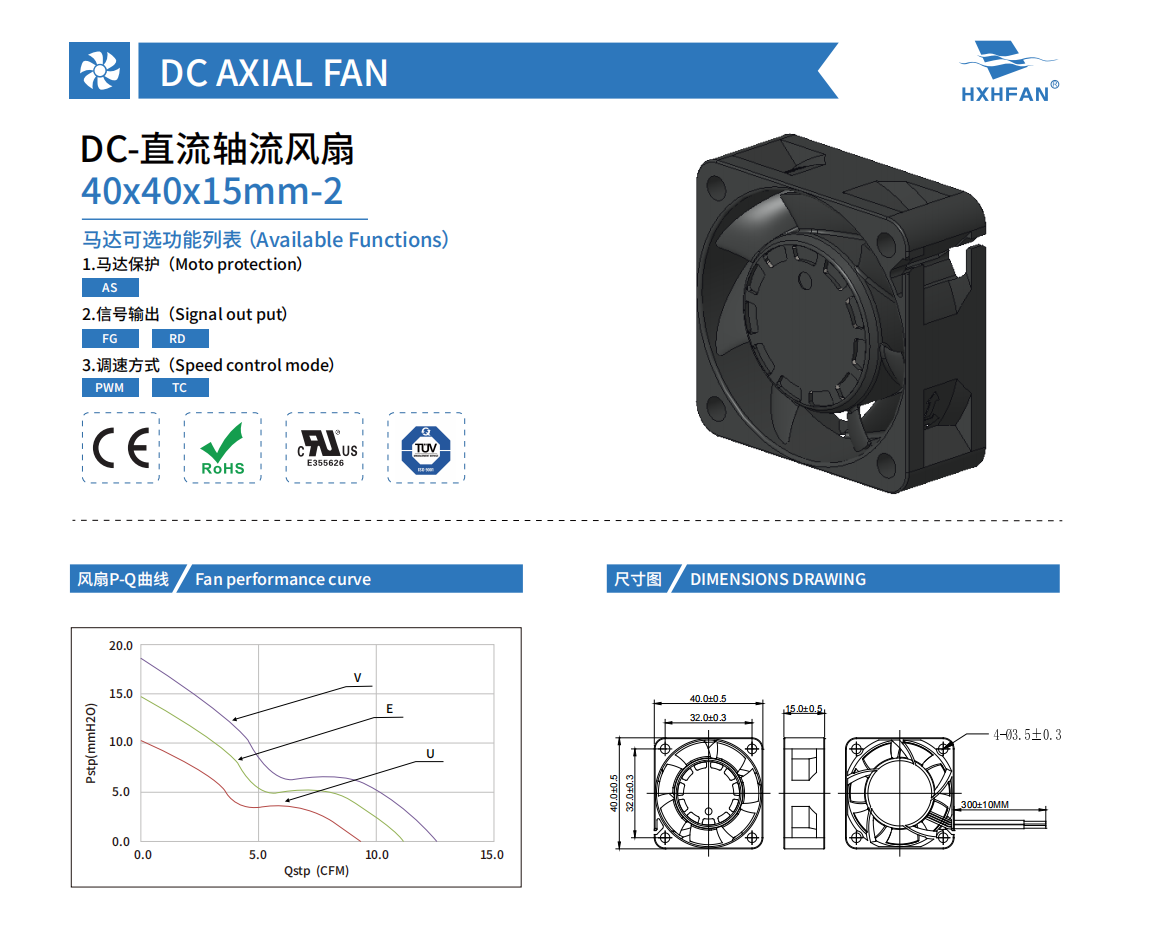

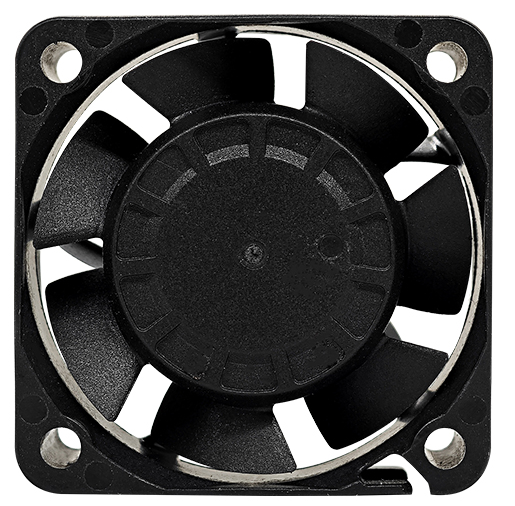

| 40*40*15MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

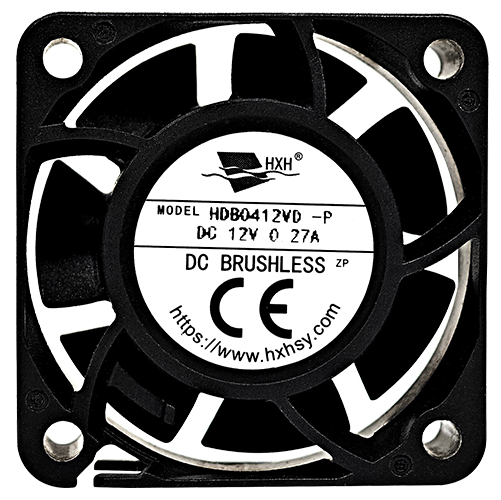

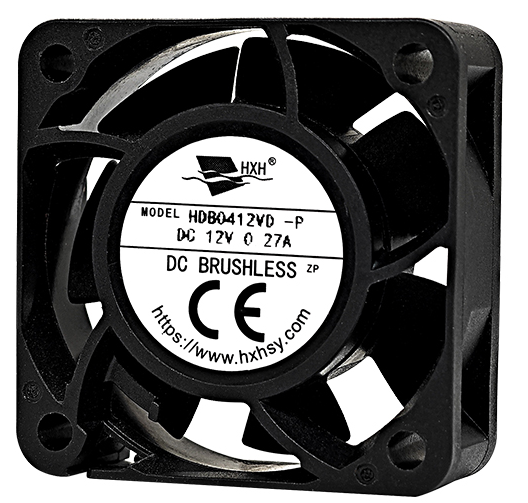

| HDB0412VD-2 | Ball | 12 | 6.0 | 0.27 | 3.24 | 13500 | 0.36 | 12.60 | 18.60 | 0.73 | 46.5 | |
| HDB0412ED-2 | 6.0 | 0.21 | 2.52 | 12000 | 0.32 | 11.20 | 14.70 | 0.58 | 43.9 | |||
| HDB0412UD-2 | 6.0 | 0.15 | 1.80 | 10000 | 0.26 | 9.33 | 10.21 | 0.40 | 40.0 | |||
| HDB0424VD-2 | Ball | 24 | 12.0 | 0.14 | 3.24 | 13500 | 0.36 | 12.60 | 18.60 | 0.73 | 46.5 | |
| HDB0424ED-2 | 12.0 | 0.11 | 2.52 | 12000 | 0.32 | 11.20 | 14.70 | 0.58 | 43.9 | |||
| HDB0424UD-2 | 12.0 | 0.08 | 1.80 | 10000 | 0.26 | 9.33 | 10.21 | 0.40 | 40.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
