Product introduction:
| Size: | 40x40x10mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic Bearing or Two Ball |
| Product life: | 40,000 hours or 70.000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

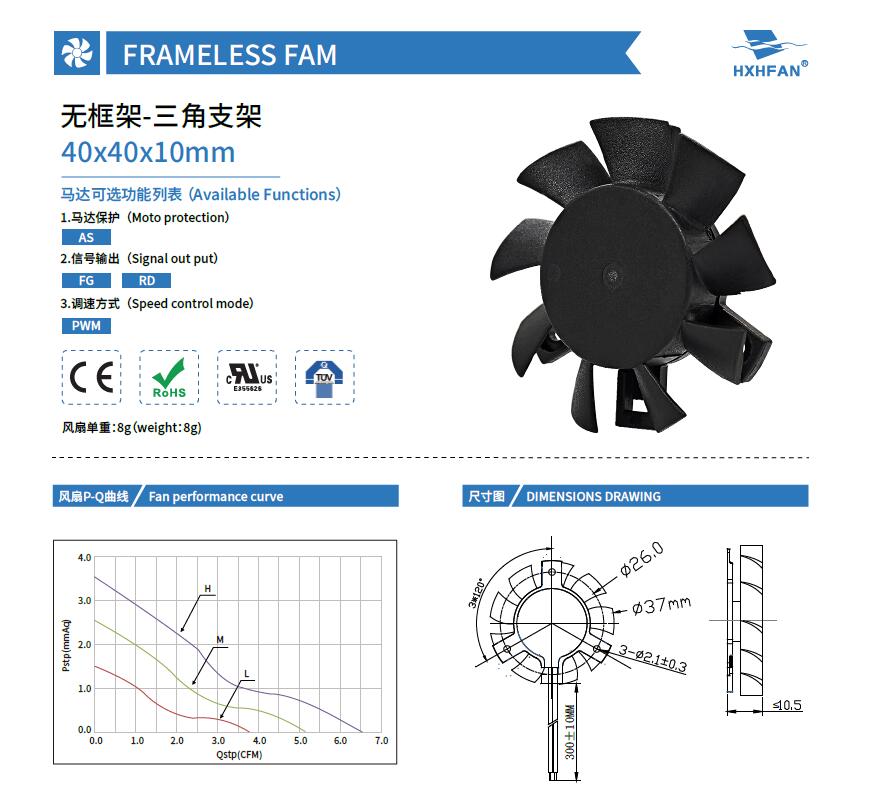

| 40×40×10MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0412HG-4 | Hydraulic | 12 | 6.0 | 0.10 | 1.20 | 6000 | 0.19 | 6.54 | 3.54 | 0.14 | 27.6 | |
| HYH0412MG-4 | 6.0 | 0.08 | 0.96 | 5000 | 0.15 | 5.14 | 2.53 | 0.10 | 23.7 | |||
| HYH0412LG-4 | 6.0 | 0.07 | 0.84 | 4000 | 0.11 | 3.77 | 1.49 | 0.06 | 21.2 | |||
| HYB0412HG-4 | Ball | 6.0 | 0.10 | 1.20 | 6000 | 0.19 | 6.54 | 3.54 | 0.14 | 27.6 | ||

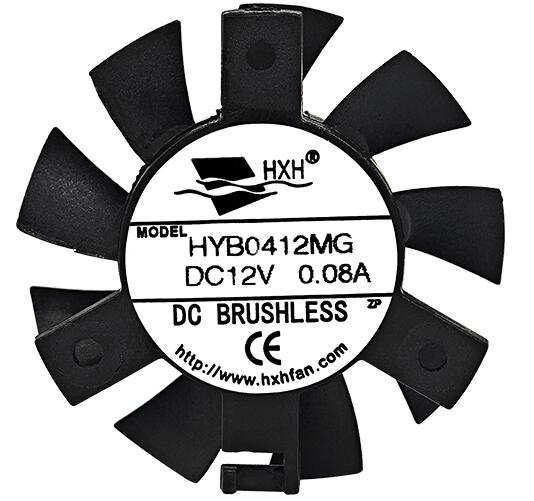

| HYB0412MG-4 | 6.0 | 0.08 | 0.96 | 5000 | 0.15 | 5.14 | 2.53 | 0.10 | 23.7 | |||
| HYB0412LG-4 | 6.0 | 0.07 | 0.84 | 4000 | 0.11 | 3.77 | 1.49 | 0.06 | 21.2 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
