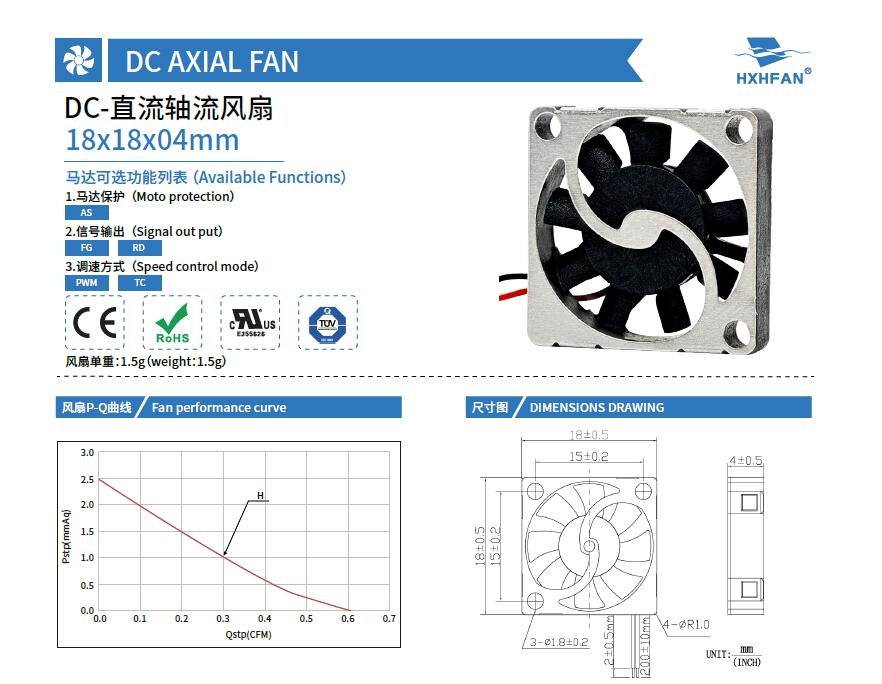

| 18*18*04MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise (0.3M) | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

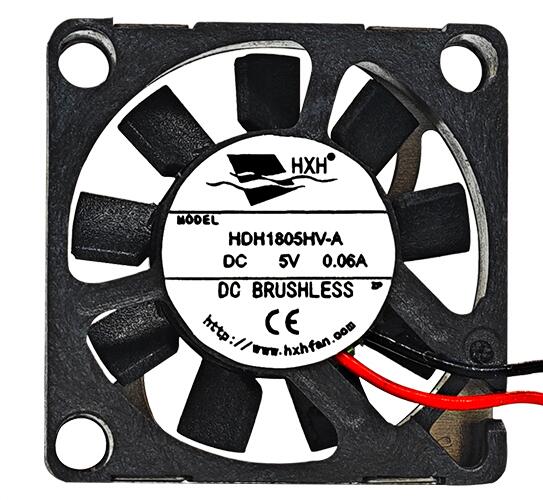

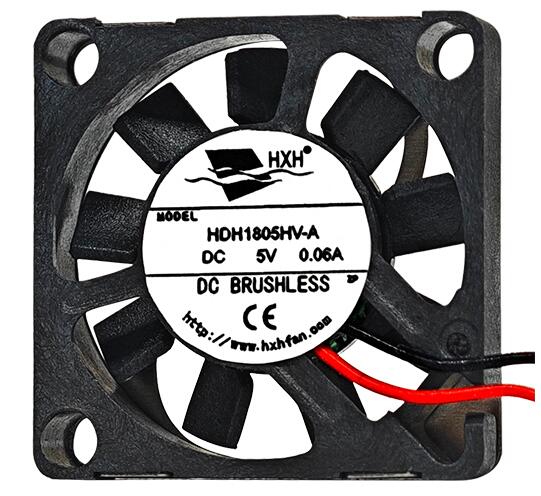

| HDH1805HV | -A | Hydraulic | 5 | 4.0 | 0.06 | 0.30 | 15000 | 0.02 | 0.60 | 2.47 | 0.10 | 36.4 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
