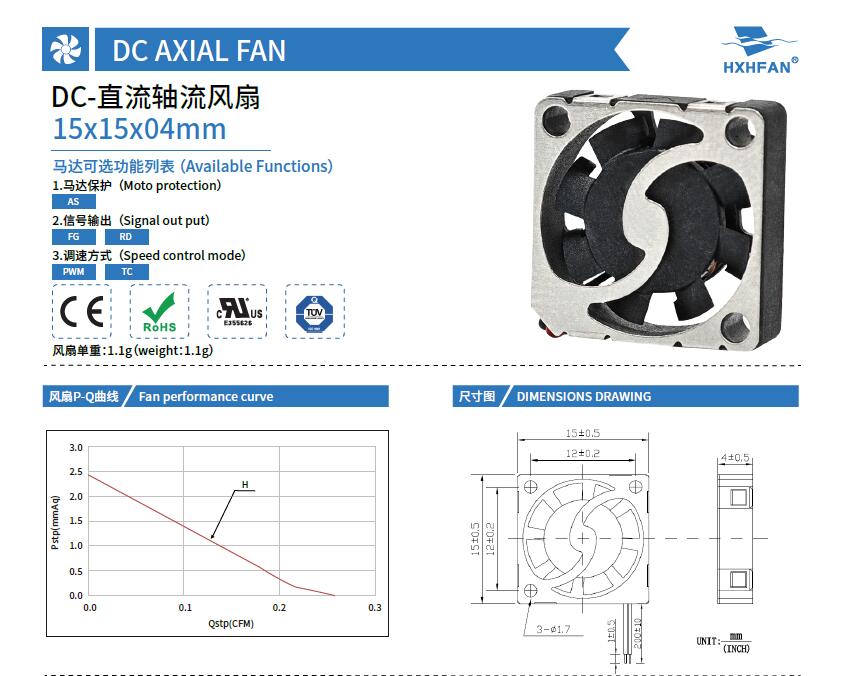

| 15*15*04MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise (0.3M) | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

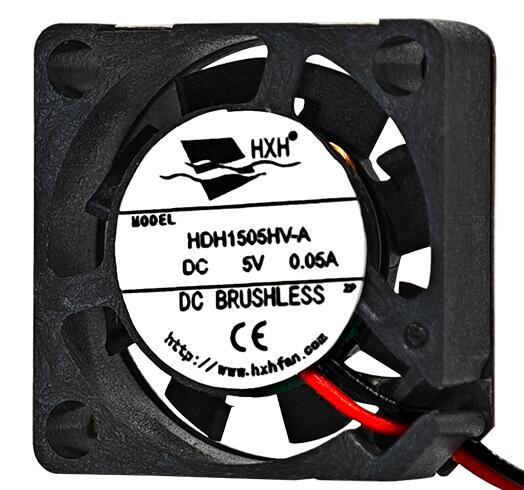

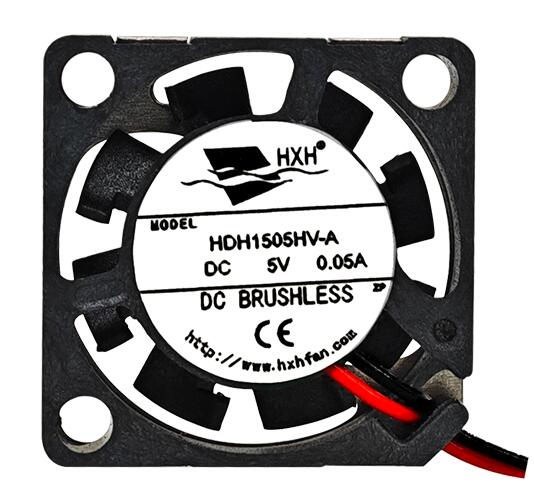

| HDH1505HV | -A | Hydraulic | 5 | 4.0 | 0.05 | 0.25 | 20000 | 0.01 | 0.26 | 2.45 | 0.10 | 36.5 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
