Product introduction:
| Size: | 60x60x15mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V |
| Bearing structure: | two Ball Bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

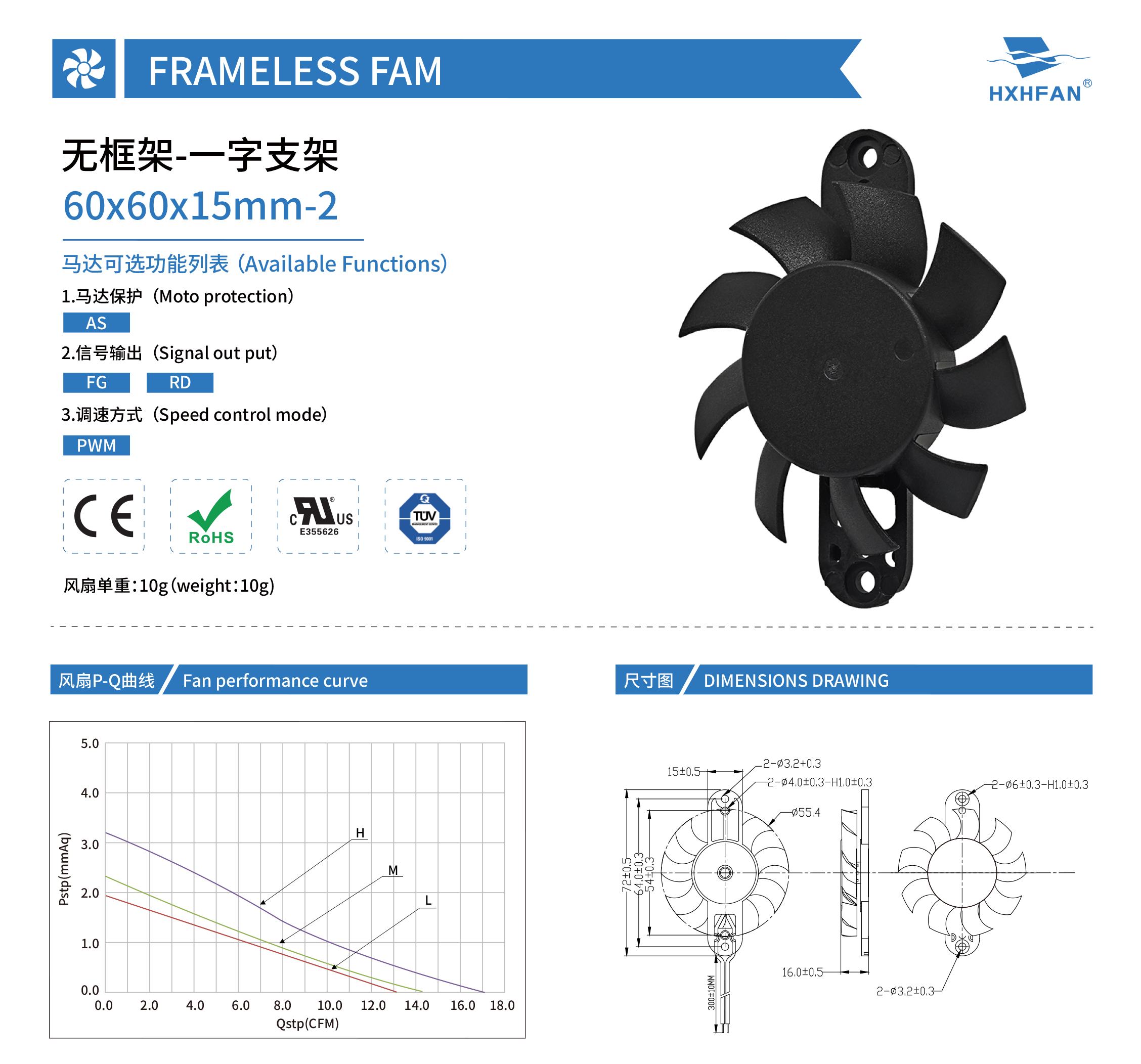

| 60*60*15mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0612HD-2 | Ball | 12 | 7.0 | 0.16 | 1.92 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |

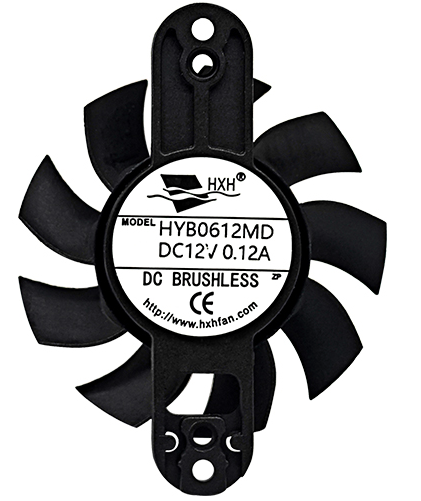

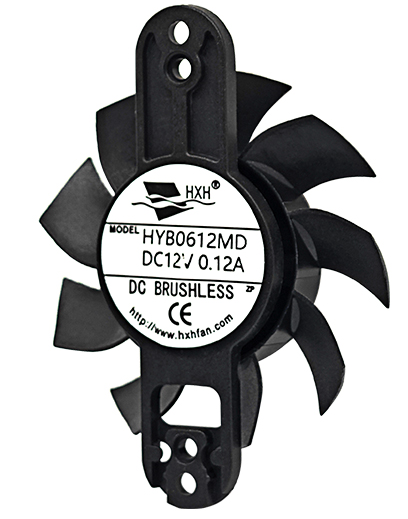

| HYB0612MD-2 | 7.0 | 0.12 | 1.44 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HYB0612LD-2 | 7.0 | 0.08 | 0.96 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| HYB0624HD-2 | Ball | 24 | 12.0 | 0.10 | 2.40 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |
| HYB0624MD-2 | 12.0 | 0.08 | 1.92 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HYB0624LD-2 | 12.0 | 0.05 | 1.20 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
