Product introduction:
| Size: | 40x40x07mm-3 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil-impregnated bearings Ball bearings |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 40*40*07MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0405HQ-3 | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 7000 | 0.18 | 6.37 | 2.35 | 0.09 | 30.5 | |

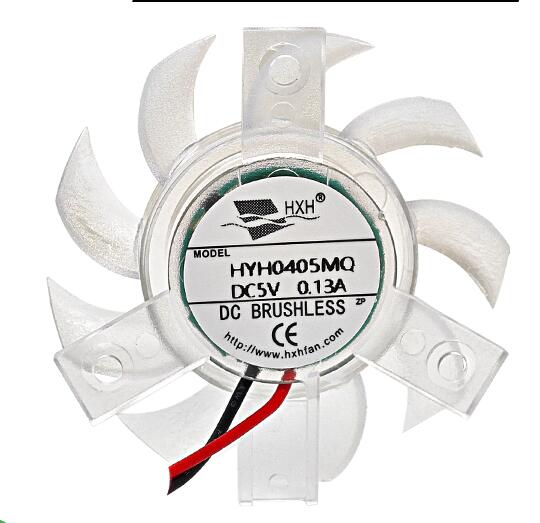

| HYH0405MQ-3 | 4.0 | 0.13 | 0.65 | 6000 | 0.15 | 5.18 | 2.07 | 0.08 | 26.7 | |||
| HYH0405LQ-3 | 4.0 | 0.11 | 0.55 | 5000 | 0.12 | 4.28 | 1.38 | 0.05 | 22.8 | |||
| HYH0412HQ-3 | Hydraulic | 12 | 9.0 | 0.13 | 1.56 | 7000 | 0.18 | 6.37 | 2.35 | 0.09 | 30.5 | |
| HYH0412MQ-3 | 9.0 | 0.09 | 1.08 | 6000 | 0.15 | 5.18 | 2.07 | 0.08 | 26.7 | |||
| HYH0412LQ-3 | 9.0 | 0.07 | 0.84 | 5000 | 0.12 | 4.28 | 1.38 | 0.05 | 22.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
