Product introduction:
| Size: | 120x120x38mm-7 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

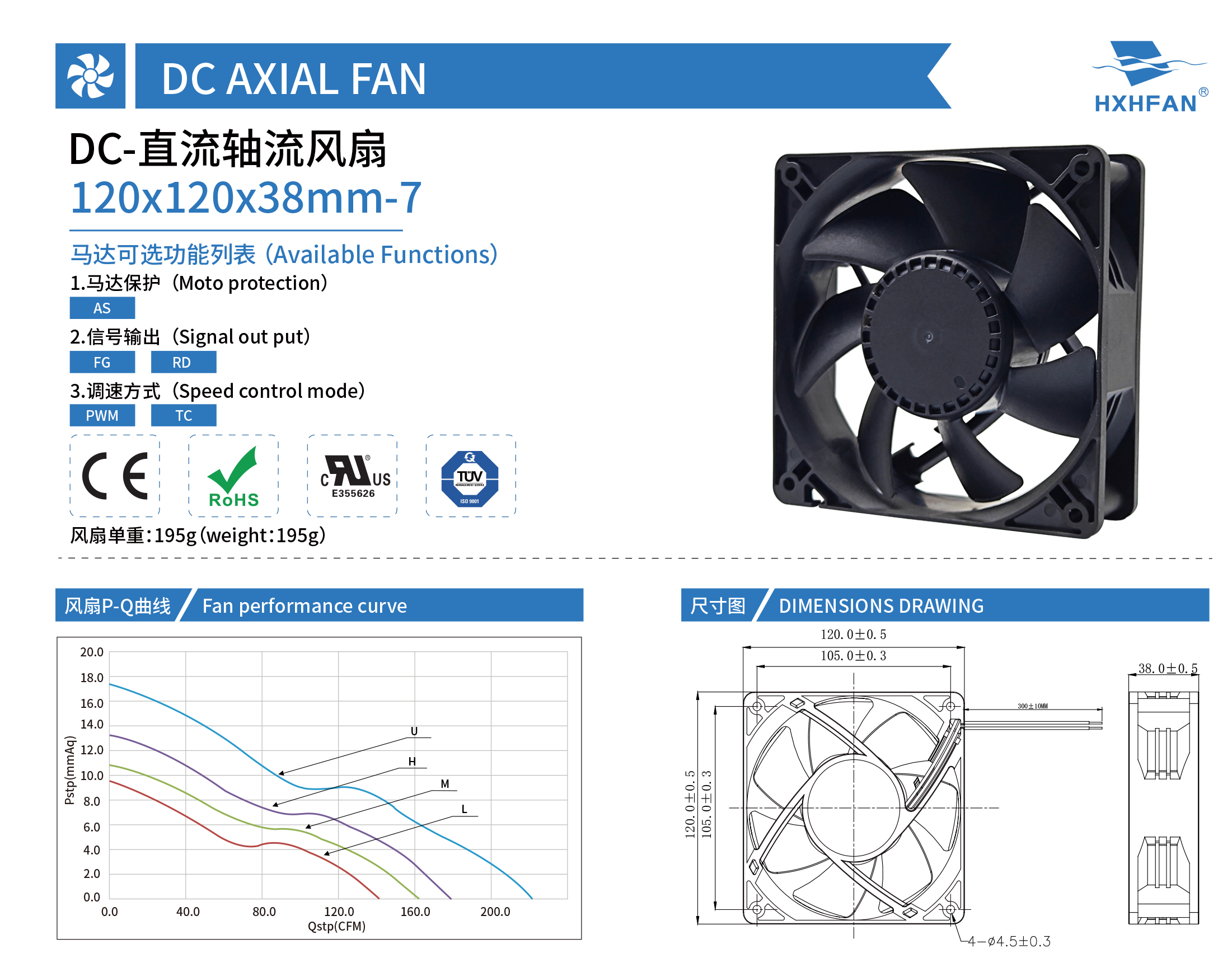

| 120*120*38mm-7 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212UF-7 | -A | Ball | 12 | 6.0 | 1.70 | 20.40 | 4600 | 5.90 | 208.56 | 17.36 | 0.68 | 58.1 |
| HDB1212HF-7 | -A | 6.0 | 1.40 | 16.80 | 4000 | 5.07 | 179.00 | 13.22 | 0.52 | 54.9 | ||
| HDB1212MF-7 | -A | 6.0 | 0.96 | 11.52 | 3600 | 4.58 | 161.90 | 10.82 | 0.43 | 52.6 | ||
| HDB1212LF-7 | -A | 6.0 | 0.70 | 8.40 | 3200 | 4.02 | 142.10 | 9.50 | 0.37 | 44.5 | ||
| HDB1224UF-7 | -A | Ball | 24 | 12.0 | 0.85 | 20.40 | 4600 | 5.90 | 208.56 | 17.36 | 0.68 | 58.1 |
| HDB1224HF-7 | -A | 12.0 | 0.70 | 16.80 | 4000 | 5.07 | 179.00 | 13.22 | 0.52 | 54.9 | ||
| HDB1224MF-7 | -A | 12.0 | 0.48 | 11.52 | 3600 | 4.58 | 161.90 | 10.82 | 0.43 | 52.6 | ||
| HDB1224LF-7 | -A | 12.0 | 0.35 | 8.40 | 3200 | 4.02 | 142.10 | 9.50 | 0.37 | 44.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
