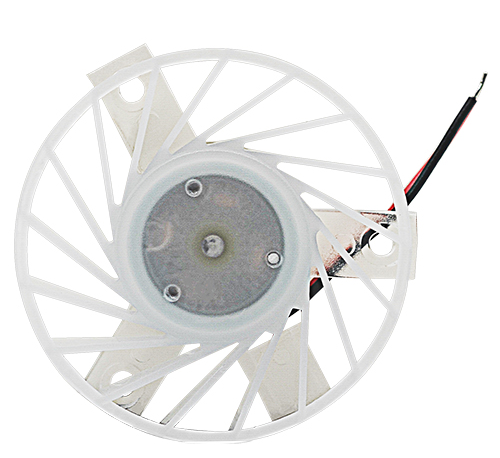

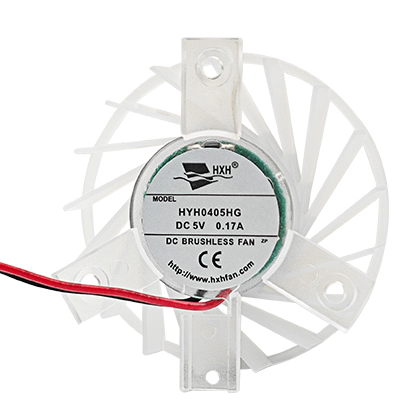

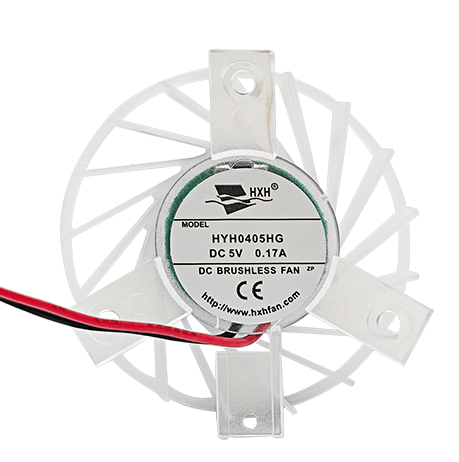

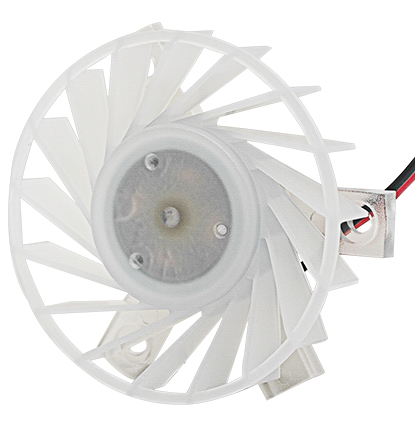

40x40x10mm Round frame bracket
40x40x10mm Round frame bracket
  • 40x40x10mm Round frame bracket
  • 40x40x10mm Round frame bracket
  • 40x40x10mm Round frame bracket
  • 40x40x10mm Round frame bracket

40x40x10mm Round frame bracket

Product introduction:

Size: 40x40x10mm
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Hydraulic bearing
Product life: 40,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

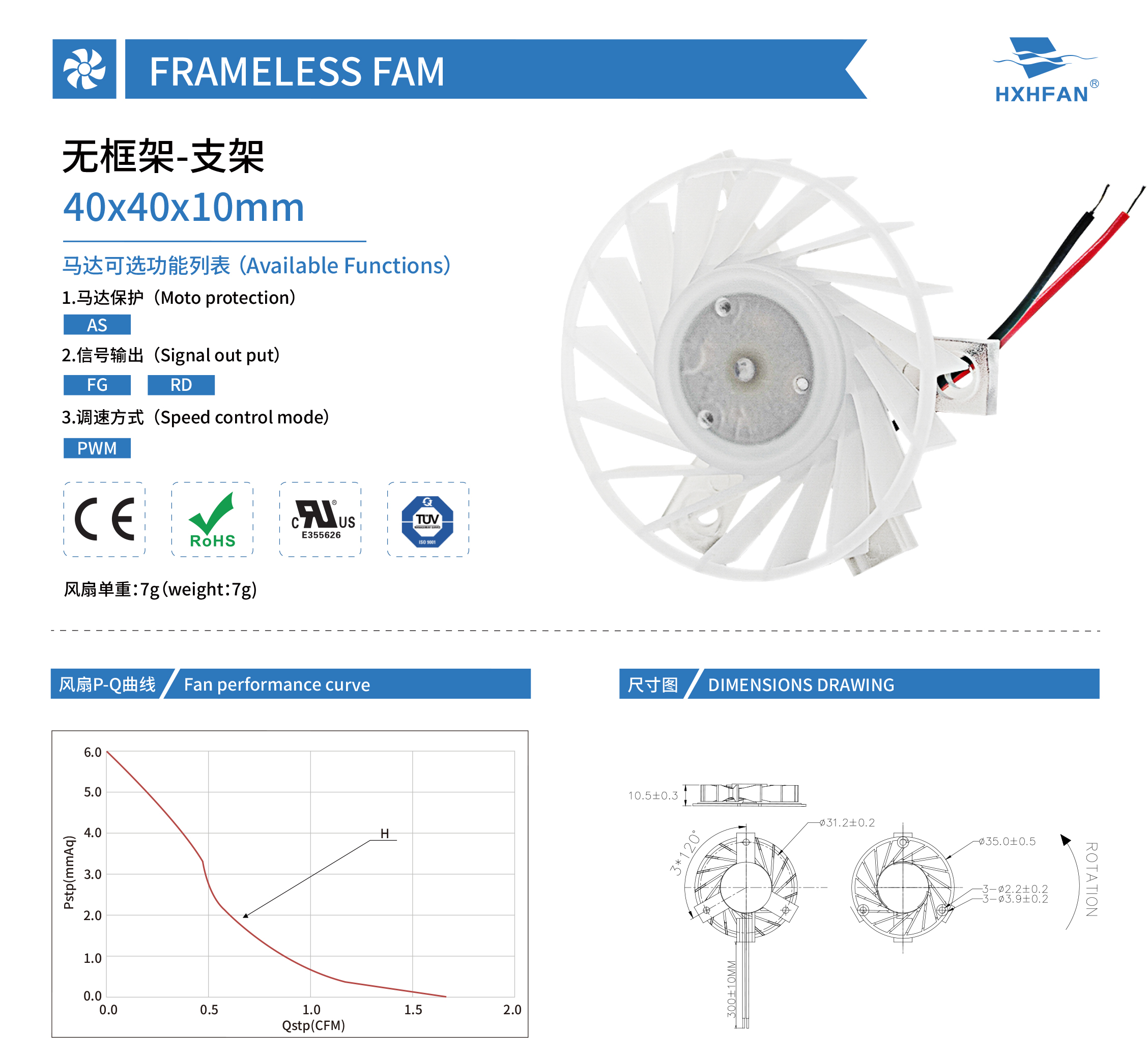

40×40×10MM支架
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA
HYH0405HG   Hydraulic  5 4.0 0.17 0.85 4200 0.05 1.66 5.91 0.23 26.4
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
