Product introduction:

Size: 35x35x10mm-1
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Oil-impregnated bearings Ball bearings
Product life: 30,000 hours  70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries

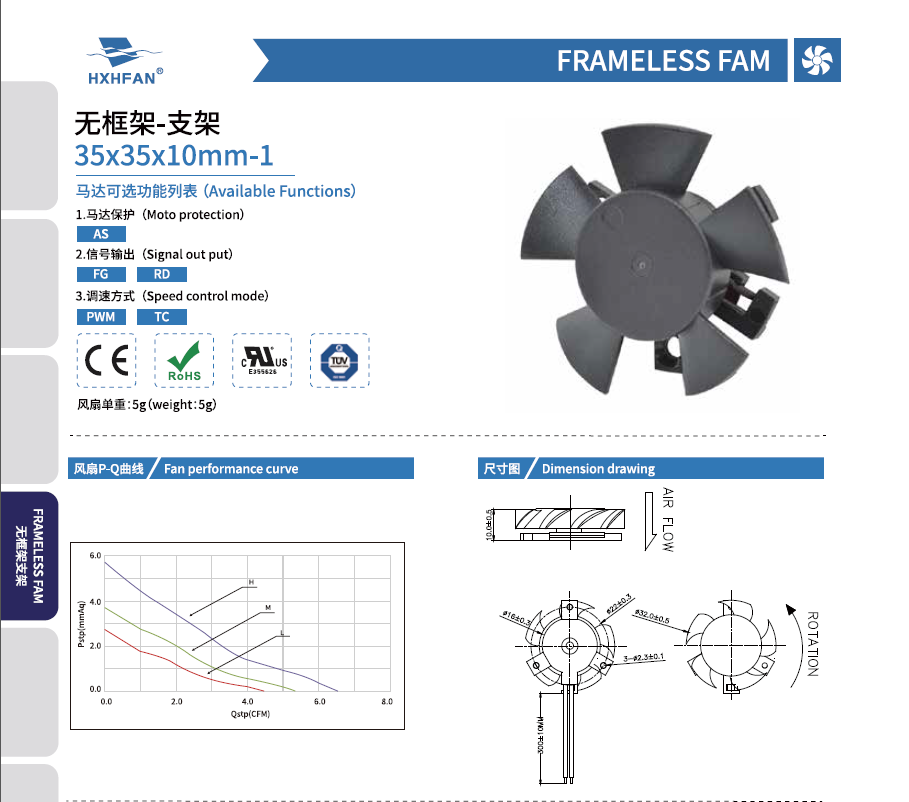

Click to Download pdf

35x35x10mm-1
Frame Size(mm) Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA
35x35x10 HYB3512HG-1   Hydraulic /Ball 12 9.0  0.16 1.92 11000 0.18 6.53 5.72 0.23 35.1
HYB3512MG-1   9.0  0.12 1.44 9000 0.15 5.30 3.70 0.15 29.9
HYB3512LG-1   9.0  0.10 1.20 7000 0.13 4.47 2.69 0.11 23.6
