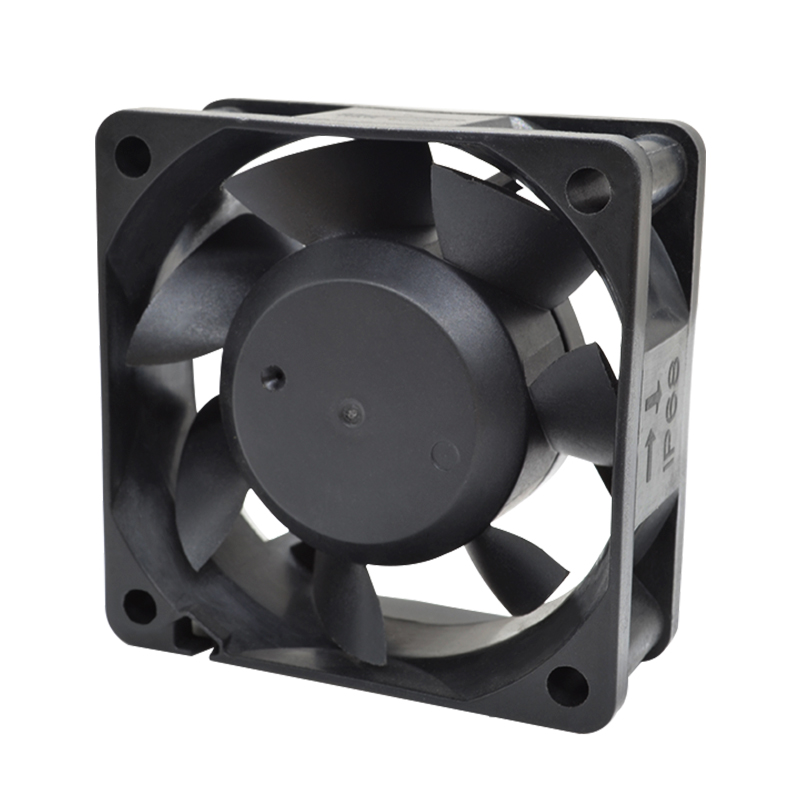

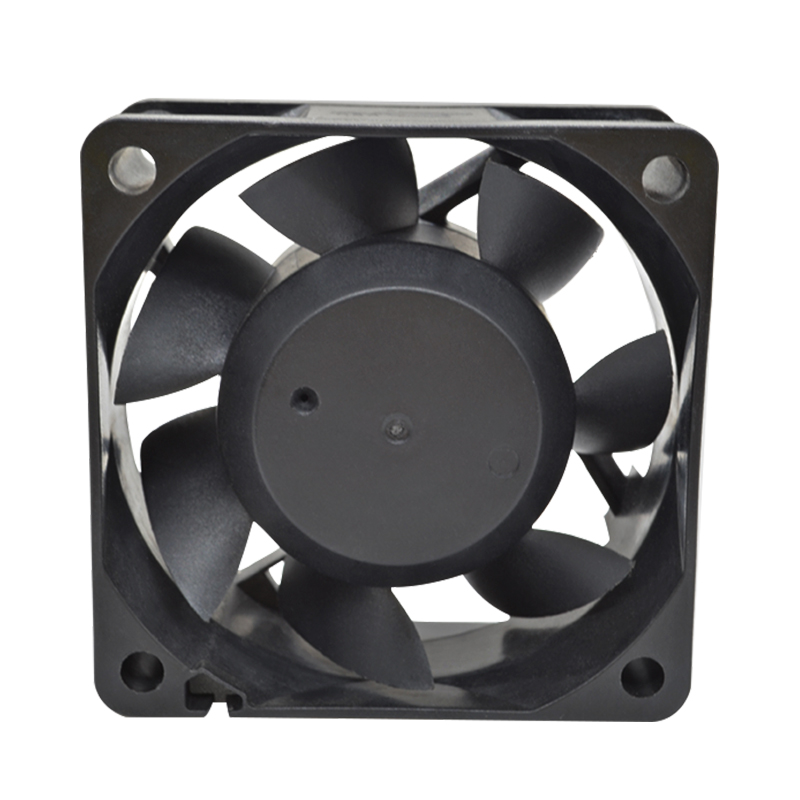

Product introduction:
| Size: | 60x60x25mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 60×60×25mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612EA-2 | IP68 | Ball | 12 | 5.0 | 0.38 | 4.56 | 6000 | 0.81 | 28.78 | 10.21 | 0.40 | 41.2 |
| HDB0612UA-2 | IP68 | 5.0 | 0.27 | 3.24 | 5000 | 0.67 | 23.67 | 6.90 | 0.27 | 36.3 | ||

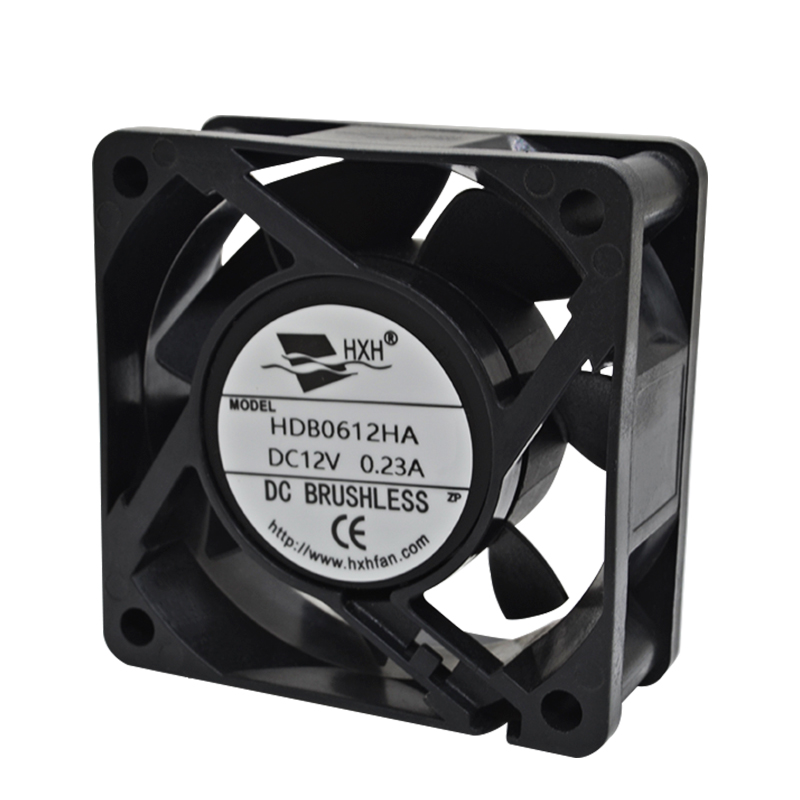

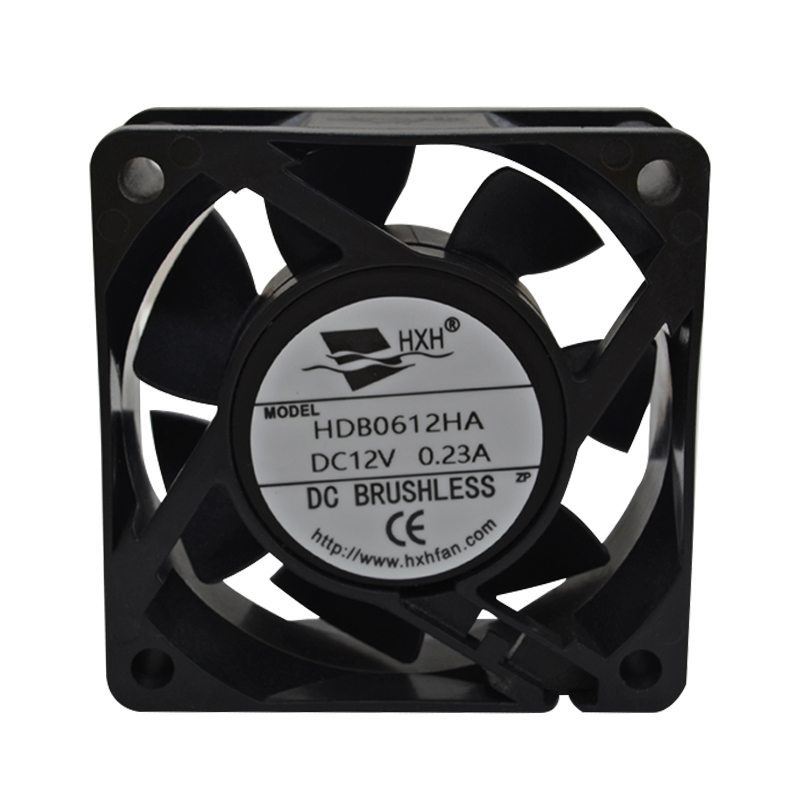

| HDB0612HA-2 | IP68 | 5.0 | 0.18 | 2.16 | 4000 | 0.53 | 18.66 | 4.43 | 0.17 | 32.4 | ||
| HDB0612MA-2 | IP68 | 5.0 | 0.14 | 1.68 | 3000 | 0.38 | 13.55 | 2.52 | 0.10 | 20.5 | ||
| HDB0612LA-2 | IP68 | 5.0 | 0.10 | 1.20 | 2500 | 0.32 | 11.19 | 1.74 | 0.07 | 18.1 | ||
| HDB0624EA-2 | IP68 | Ball | 24 | 12.0 | 0.25 | 6.00 | 6000 | 0.81 | 28.78 | 10.21 | 0.40 | 41.2 |
| HDB0624UA-2 | IP68 | 12.0 | 0.18 | 4.32 | 5000 | 0.67 | 23.67 | 6.90 | 0.27 | 36.3 | ||
| HDB0624HA-2 | IP68 | 12.0 | 0.12 | 2.88 | 4000 | 0.53 | 18.66 | 4.43 | 0.17 | 32.4 | ||
| HDB0624MA-2 | IP68 | 12.0 | 0.09 | 2.16 | 3000 | 0.38 | 13.55 | 2.52 | 0.10 | 20.5 | ||
| HDB0624LA-2 | IP68 | 12.0 | 0.07 | 1.68 | 2500 | 0.32 | 11.19 | 1.74 | 0.07 | 18.1 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
