Product introduction:
| Size: | 80x80x15mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

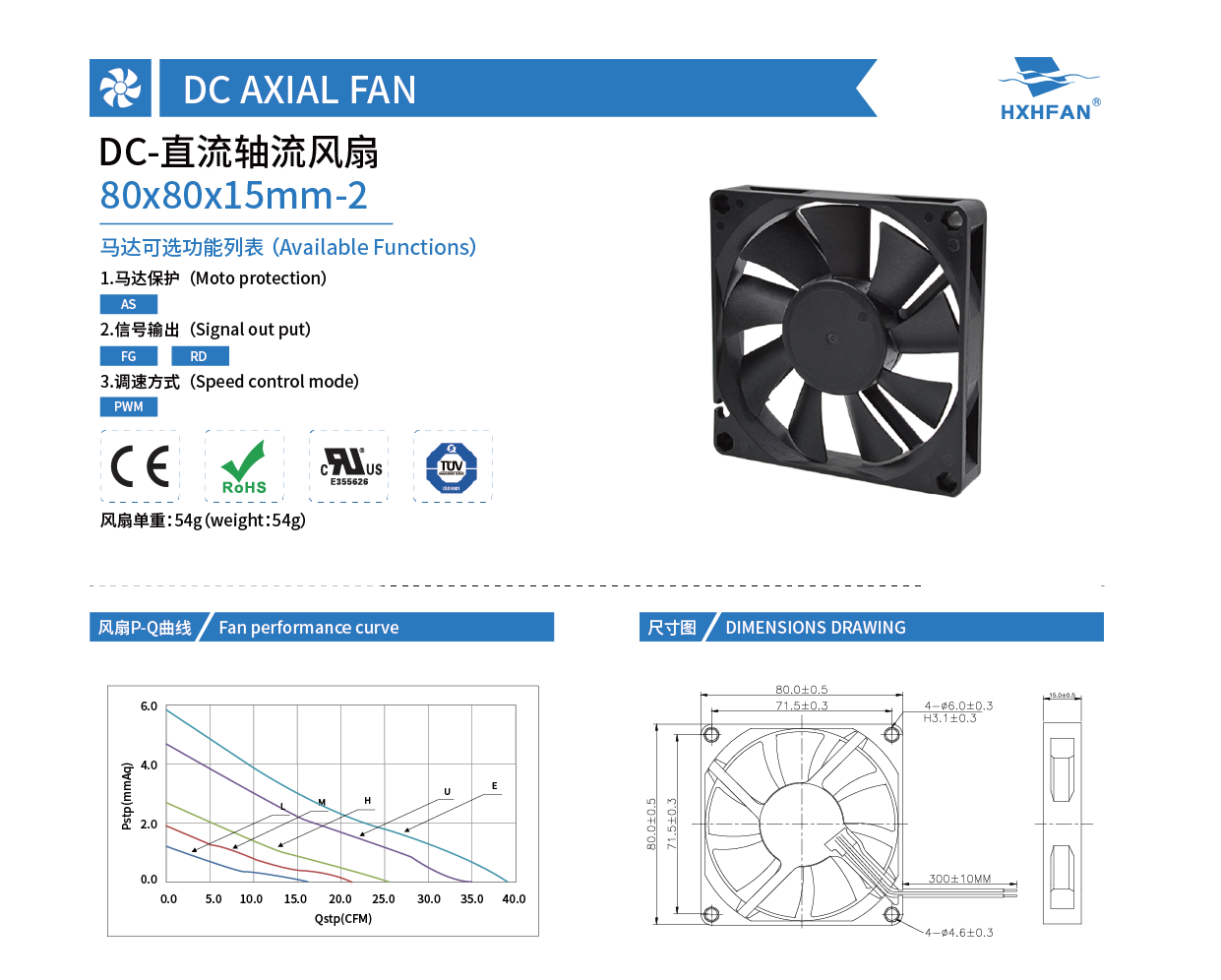

| 80×80×15mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

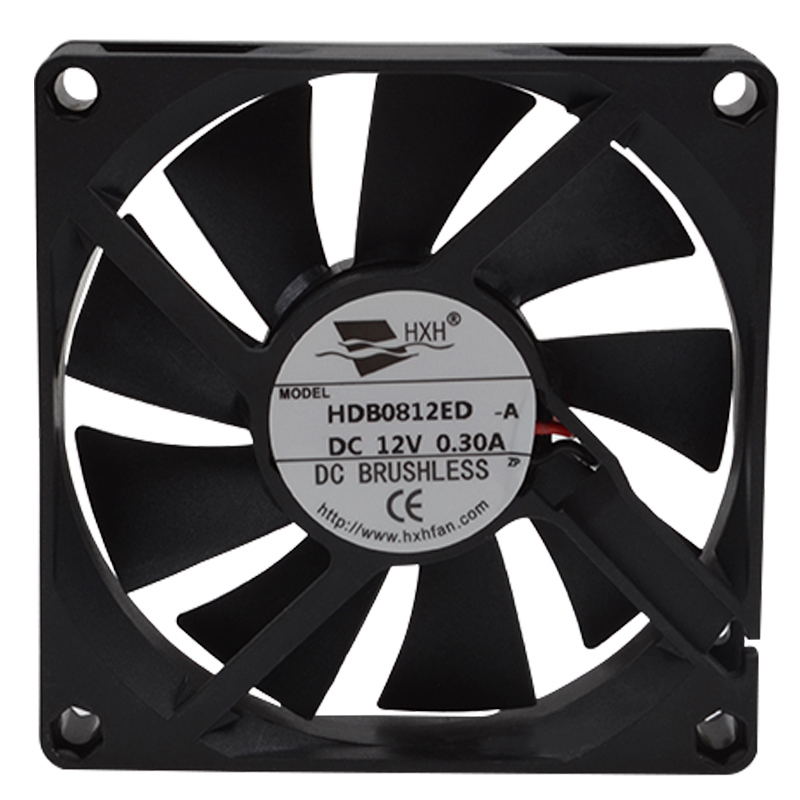

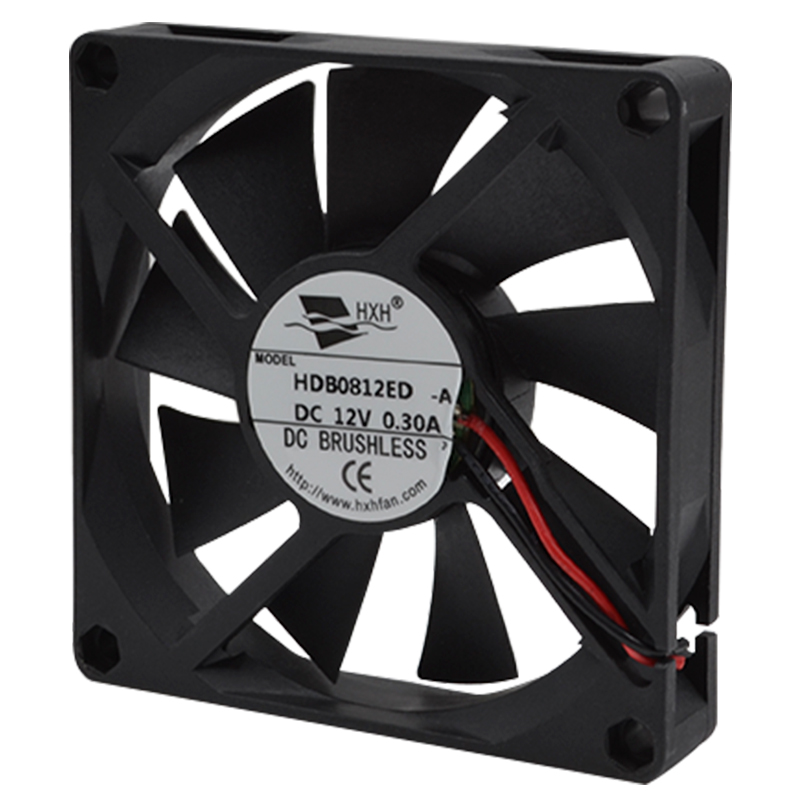

| HDB0812ED-2 | -A | Ball | 12 | 6.0 | 0.38 | 4.56 | 4500 | 1.11 | 39.06 | 5.79 | 0.23 | 41.4 |
| HDB0812UD-2 | -A | 6.0 | 0.30 | 3.60 | 4000 | 1.00 | 35.28 | 4.67 | 0.18 | 38.3 | ||
| HDB0812HD-2 | 6.0 | 0.25 | 3.00 | 3000 | 0.72 | 25.49 | 2.70 | 0.11 | 32.3 | |||
| HDB0812MD-2 | 9.0 | 0.17 | 2.04 | 2500 | 0.60 | 21.08 | 1.89 | 0.07 | 29.9 | |||
| HDB0812LD-2 | 9.0 | 0.09 | 1.08 | 2000 | 0.46 | 16.10 | 1.20 | 0.05 | 28.0 | |||
| HDB0824ED-2 | -A | Ball | 24 | 12.0 | 0.28 | 6.72 | 4500 | 1.11 | 39.06 | 5.79 | 0.23 | 41.4 |
| HDB0824UD-2 | -A | 12.0 | 0.20 | 4.80 | 4000 | 1.00 | 35.28 | 4.67 | 0.18 | 38.3 | ||
| HDB0824HD-2 | 12.0 | 0.13 | 3.12 | 3000 | 0.72 | 25.49 | 2.70 | 0.11 | 32.3 | |||
| HDB0824MD-2 | 18.0 | 0.10 | 2.40 | 2500 | 0.60 | 21.08 | 1.89 | 0.07 | 29.9 | |||
| HDB0824LD-2 | 18.0 | 0.06 | 1.44 | 2000 | 0.46 | 16.10 | 1.20 | 0.05 | 28.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
