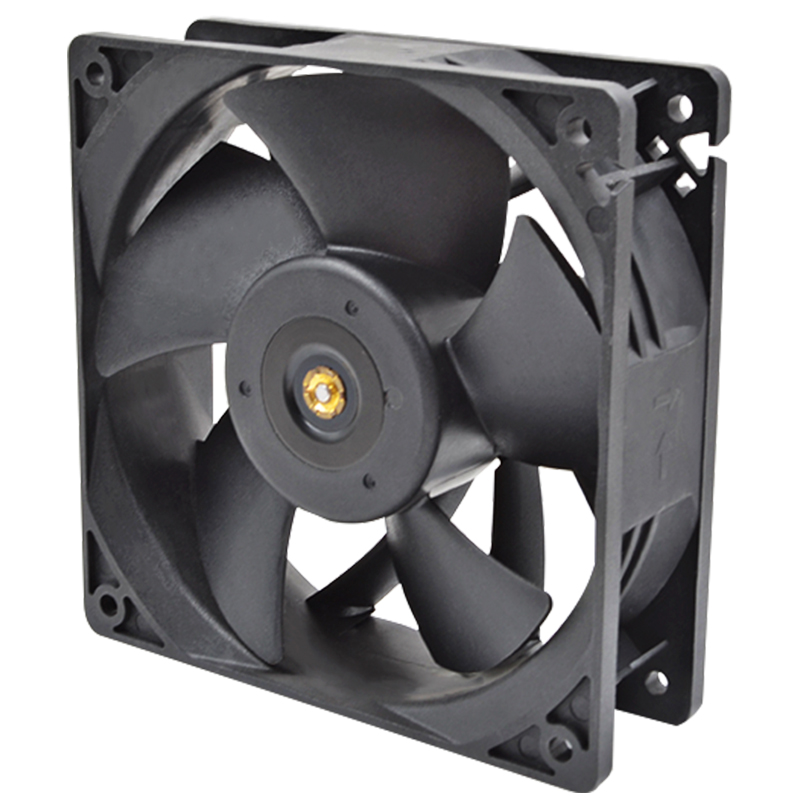

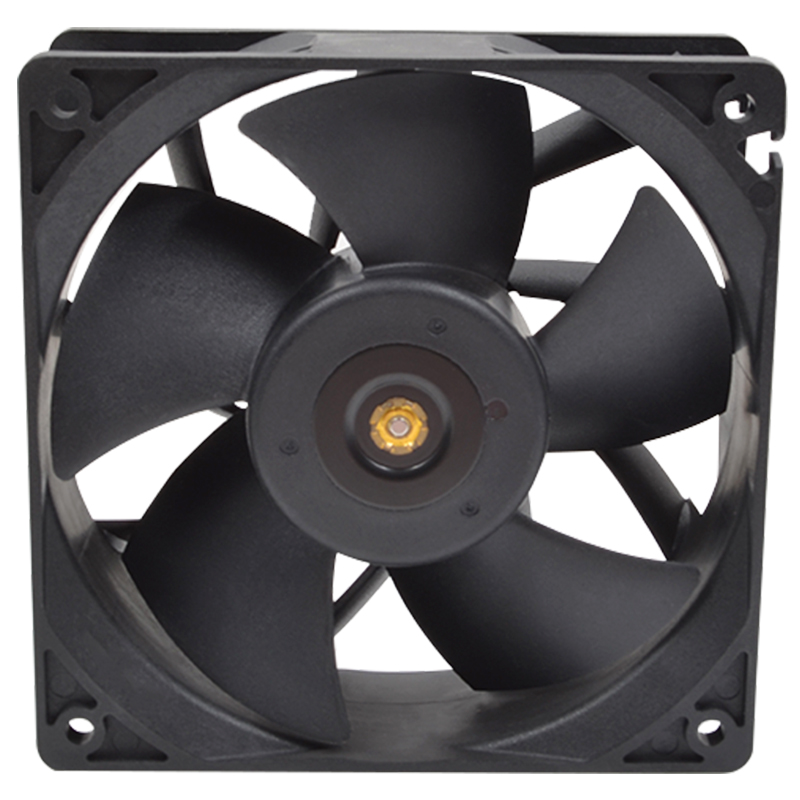

Product introduction:
| Size: | 120x120x38mm-5 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 120×120×38mm-5 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212UF-5 | -A | Ball | 12 | 5.0 | 3.90 | 46.80 | 6800 | 6.31 | 222.86 | 34.45 | 1.36 | 65.7 |
| HDB1212HF-5 | -A | 5.0 | 2.00 | 24.00 | 6000 | 5.54 | 195.83 | 27.07 | 1.07 | 63.3 | ||
| HDB1212MF-5 | -A | 5.0 | 1.50 | 18.00 | 5500 | 5.26 | 185.96 | 21.35 | 0.84 | 61.6 | ||
| HDB1212LF-5 | -A | 5.0 | 1.20 | 14.40 | 5000 | 4.84 | 170.96 | 18.35 | 0.72 | 58.6 | ||
| HDB1224UF-5 | -A | Ball | 24 | 12.0 | 1.50 | 36.00 | 6800 | 6.31 | 222.86 | 34.45 | 1.36 | 65.7 |

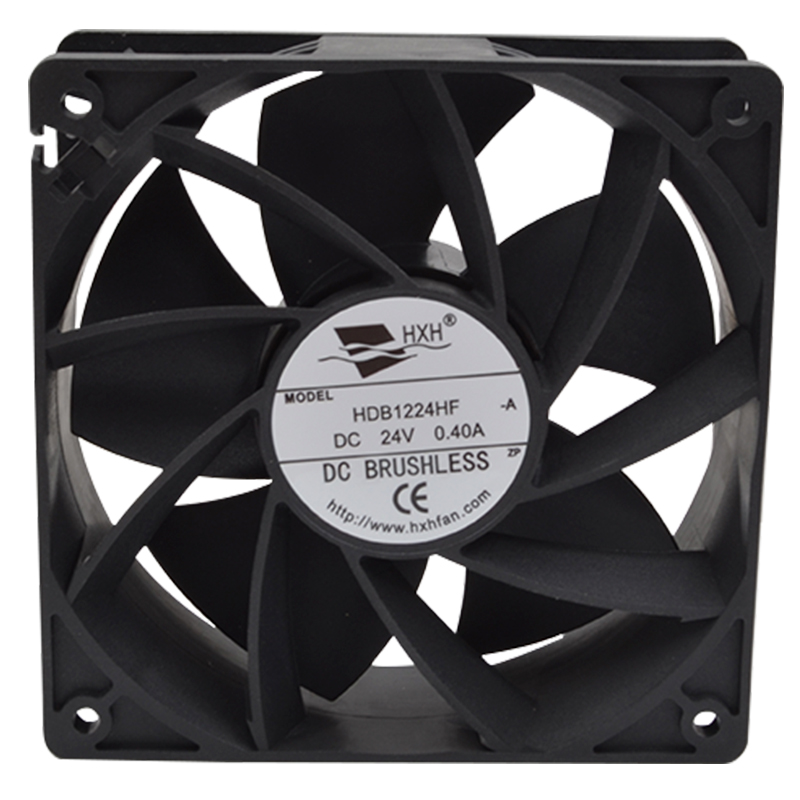

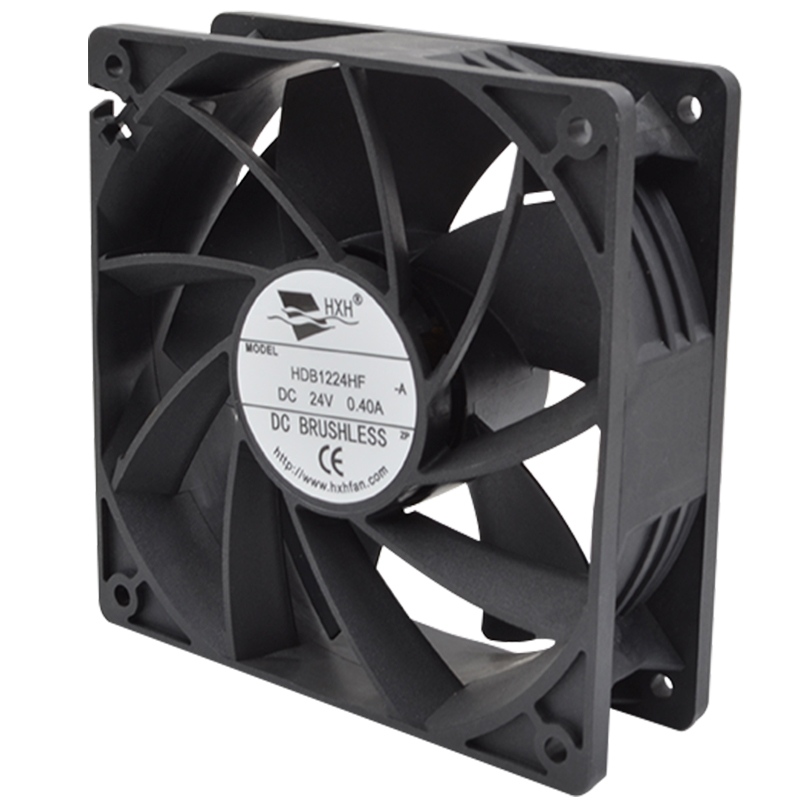

| HDB1224HF-5 | -A | 12.0 | 0.90 | 21.60 | 6000 | 5.54 | 195.83 | 27.07 | 1.07 | 63.3 | ||
| HDB1224MF-5 | -A | 12.0 | 0.60 | 14.40 | 5500 | 5.26 | 185.96 | 21.35 | 0.84 | 61.6 | ||
| HDB1224LF-5 | -A | 12.0 | 0.50 | 12.00 | 5000 | 4.84 | 170.96 | 18.35 | 0.72 | 58.6 | ||
| HDB1248UF-5 | -A | Ball | 48 | 24.0 | 0.80 | 38.40 | 6800 | 6.31 | 222.86 | 34.45 | 1.36 | 65.7 |
| HDB1248HF-5 | -A | 24.0 | 0.50 | 24.00 | 6000 | 5.54 | 195.83 | 27.07 | 1.07 | 63.3 | ||
| HDB1248MF-5 | -A | 24.0 | 0.30 | 14.40 | 5500 | 5.26 | 185.96 | 21.35 | 0.84 | 61.6 | ||
| HDB1248LF-5 | -A | 24.0 | 0.26 | 12.48 | 5000 | 4.84 | 170.96 | 18.35 | 0.72 | 58.6 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
