Product introduction:

Size: 80x80x15mm-2
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Oil Bearing  Ball Bearing
Product life: 30,000 hours  70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

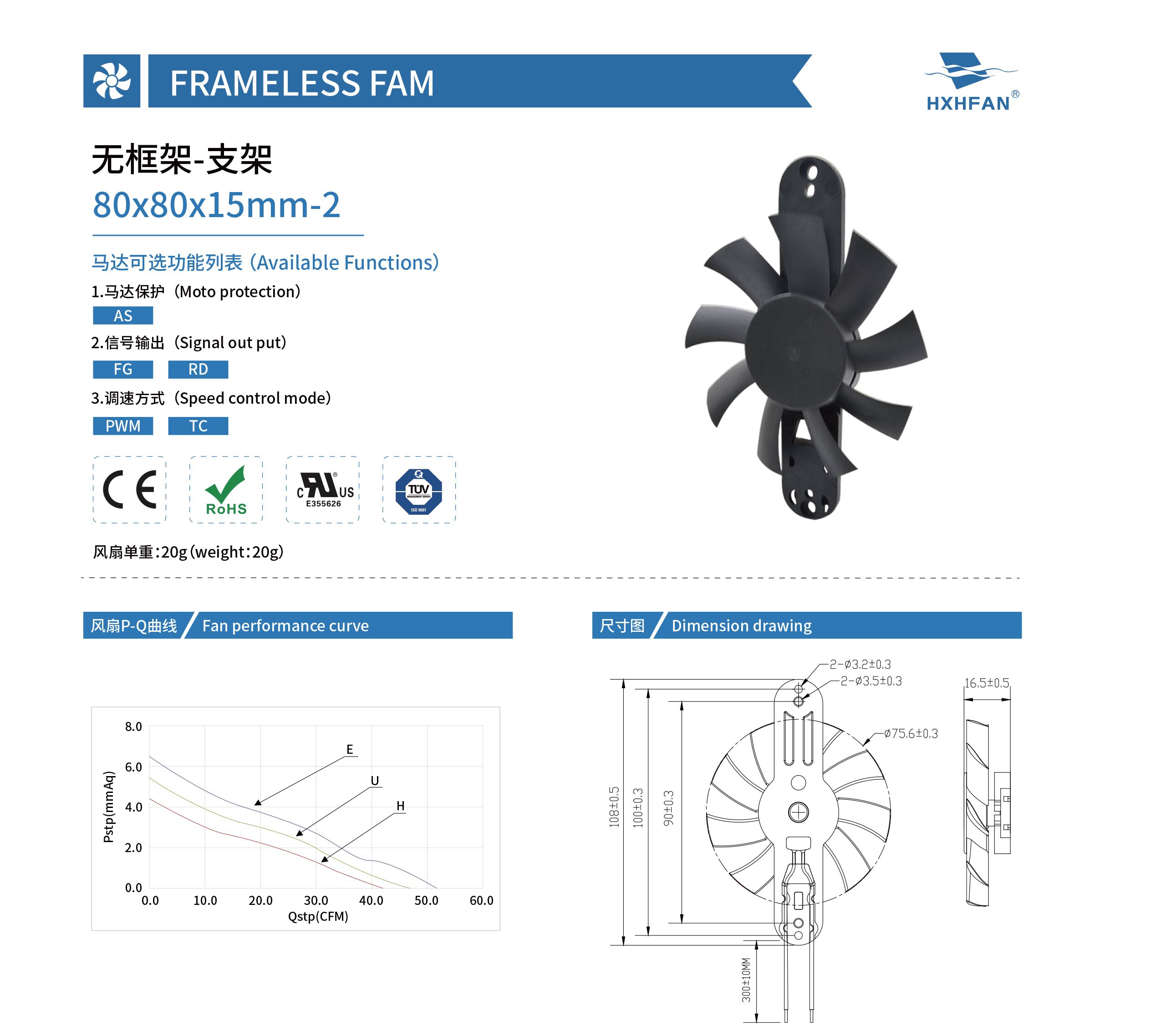

80x80x15mm-2
Frame Size(mm) Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA
80x80x15mm-2 HYB0812UD-2   Sleeve /Ball 12 6.0  0.38  4.56  4300 1.32  46.47  5.80  0.23  36.1
HYB0812HD-2   6.0  0.35  4.20  4000 1.23  43.32  5.02  0.20  34.5
HYB0812MD-2   6.0  0.32  3.84  3800 1.16  41.15  4.53  0.18  33.4
