Product introduction:
| Size: | 30x30x07mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Hydraulic bearing 双Ball bearing |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

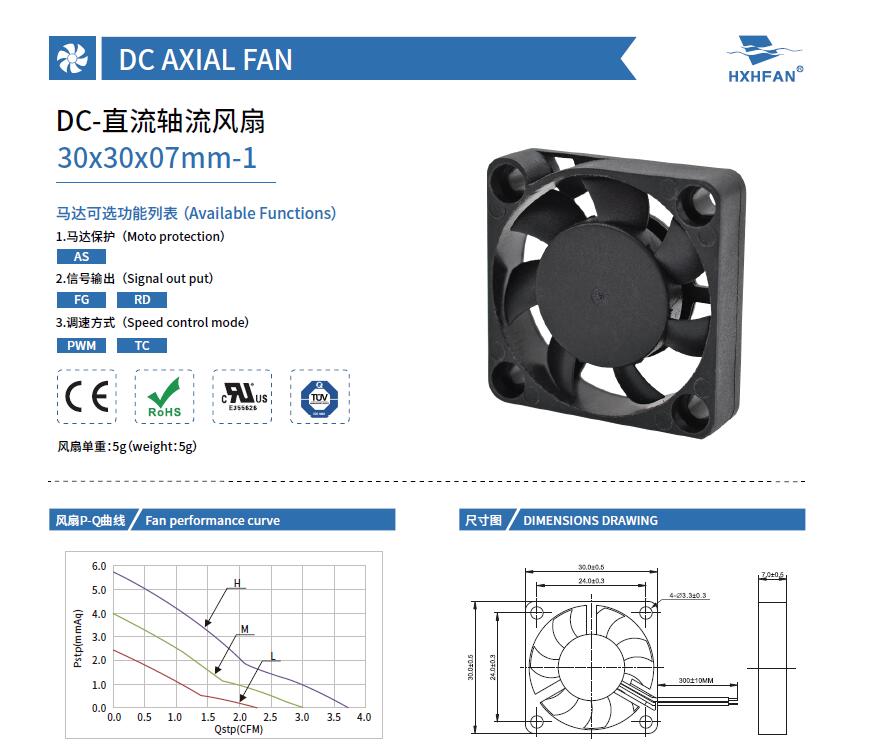

| 30×30×07mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0305HQ-1 | Hydraulic | 5 | 4.5 | 0.23 | 1.15 | 11000 | 0.11 | 3.86 | 4.00 | 0.16 | 32.0 | |
| HDH0305MQ-1 | 4.5 | 0.20 | 1.00 | 9000 | 0.09 | 3.25 | 3.35 | 0.13 | 27.5 | |||
| HDH0305LQ-1 | 4.5 | 0.15 | 0.75 | 7000 | 0.08 | 2.68 | 2.65 | 0.10 | 19.8 | |||

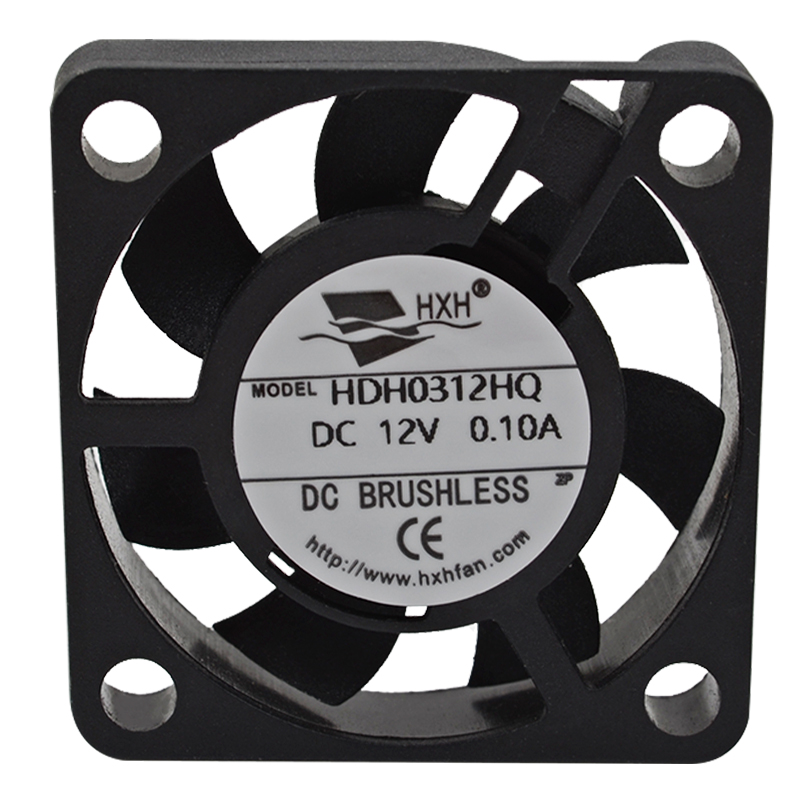

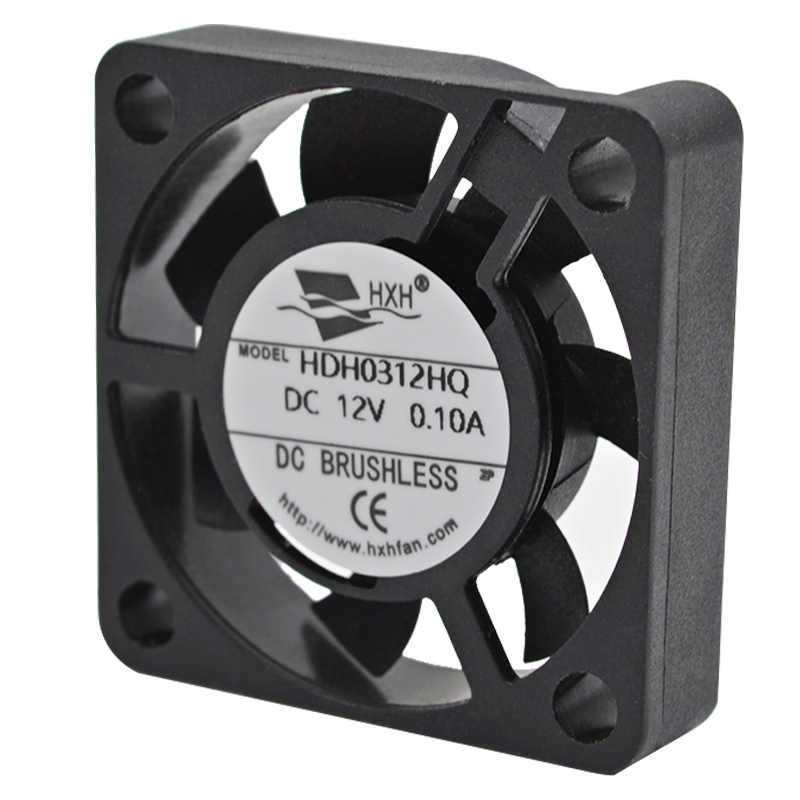

| HDH0312HQ-1 | Hydraulic | 12 | 9.5 | 0.10 | 1.20 | 11000 | 0.11 | 3.86 | 4.00 | 0.16 | 32.0 | |
| HDH0312MQ-1 | 9.5 | 0.08 | 0.96 | 9000 | 0.09 | 3.25 | 3.35 | 0.13 | 27.5 | |||
| HDH0312LQ-1 | 9.5 | 0.06 | 0.72 | 7000 | 0.08 | 2.68 | 2.65 | 0.10 | 19.8 | |||
