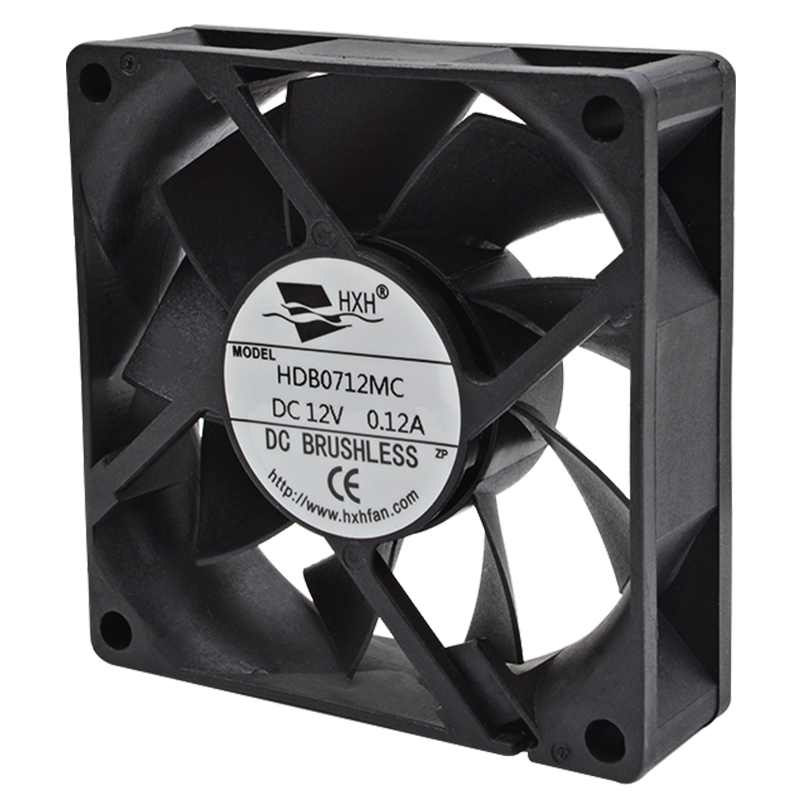

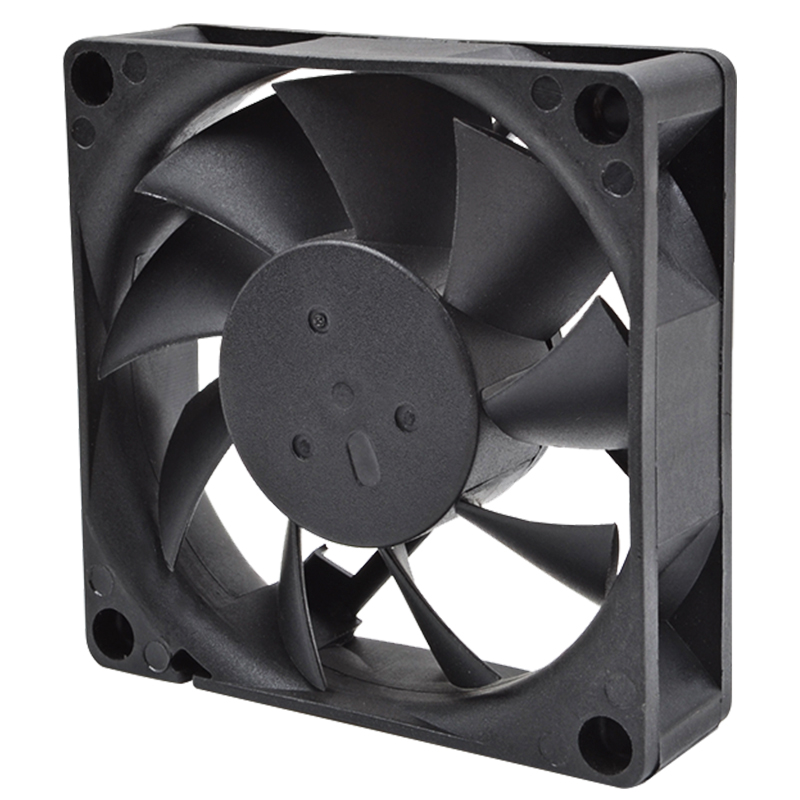

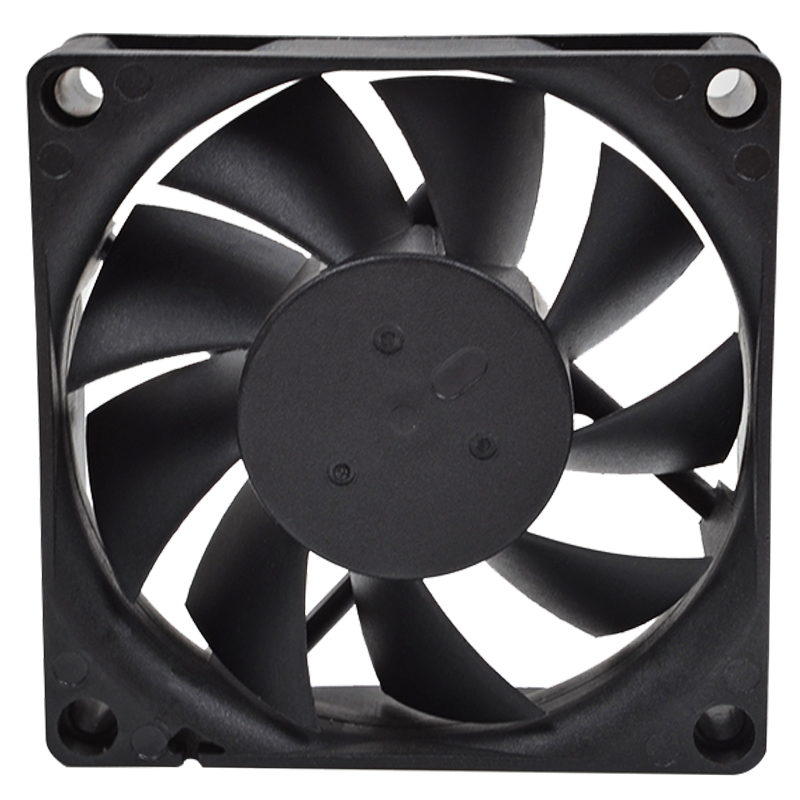

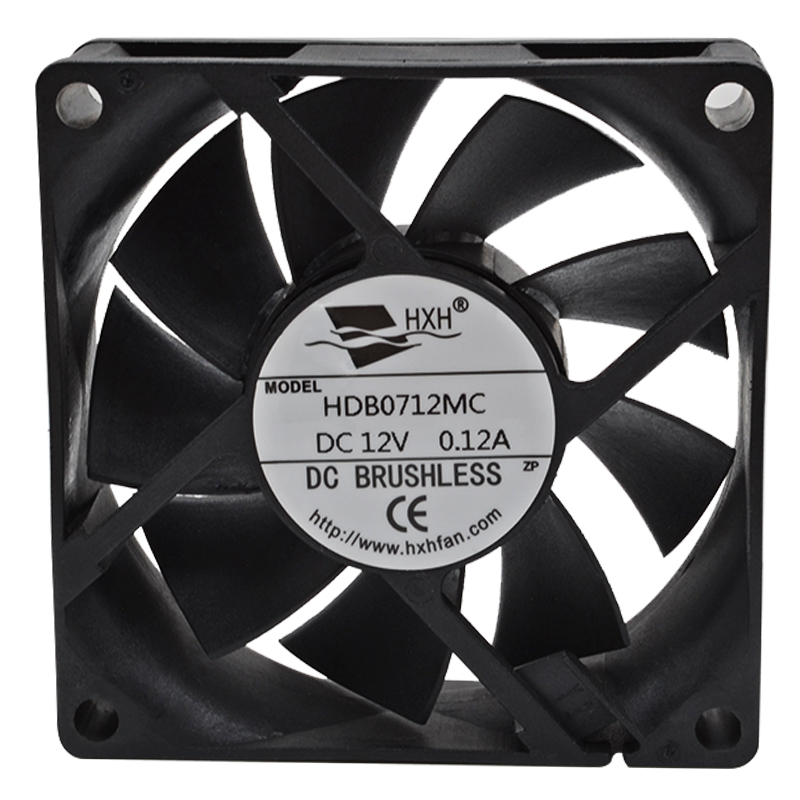

Product introduction:
| Size: | 70x70x20mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | 含油轴承 双Ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

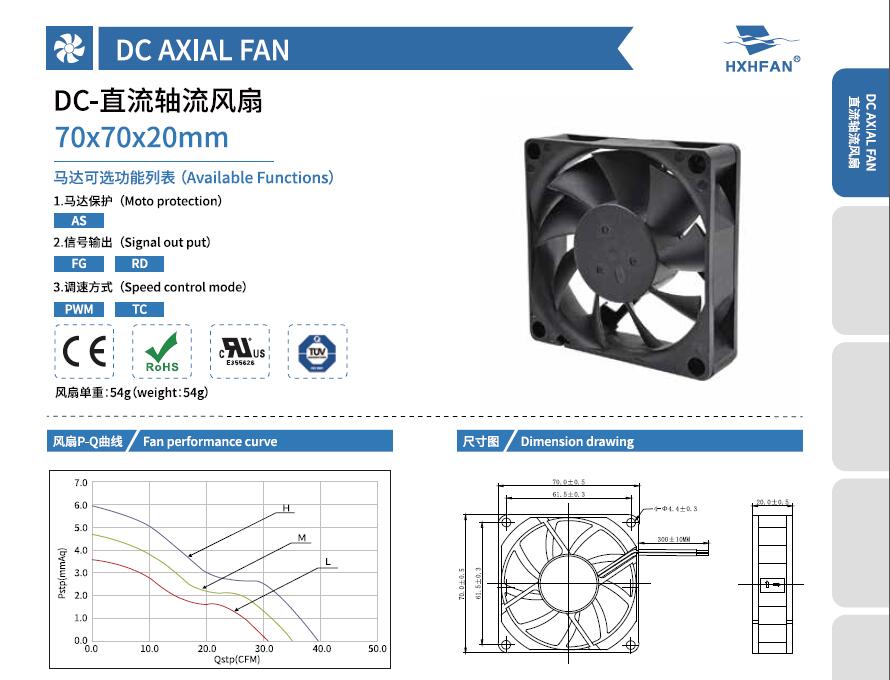

| 70×70×20mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0712HC | Sleeve | 12 | 9.5 | 0.18 | 2.16 | 3800 | 1.03 | 36.42 | 4.31 | 0.17 | 35.6 | |
| HDS0712MC | 9.5 | 0.11 | 1.32 | 3200 | 0.85 | 30.16 | 3.01 | 0.12 | 31.0 | |||
| HDS0712LC | 9.5 | 0.06 | 0.72 | 2600 | 0.71 | 25.08 | 2.03 | 0.08 | 26.0 | |||
| HDB0712HC | Ball | 9.5 | 0.18 | 2.16 | 3800 | 1.03 | 36.42 | 4.31 | 0.17 | 35.6 | ||
| HDB0712MC | 9.5 | 0.11 | 1.32 | 3200 | 0.85 | 30.16 | 3.01 | 0.12 | 31.0 | |||
| HDB0712LC | 9.5 | 0.06 | 0.72 | 2600 | 0.71 | 25.08 | 2.03 | 0.08 | 26.0 | |||
| HDS0724HC | Sleeve | 24 | 9.5 | 0.16 | 3.84 | 3800 | 1.03 | 36.42 | 4.31 | 0.17 | 35.6 | |
| HDS0724MC | 9.5 | 0.12 | 2.88 | 3200 | 0.85 | 30.16 | 3.01 | 0.12 | 31.0 | |||
| HDS0724LC | 9.5 | 0.10 | 2.40 | 2600 | 0.71 | 25.08 | 2.03 | 0.08 | 26.0 | |||
| HDB0724HC | Ball | 9.5 | 0.16 | 3.84 | 3800 | 1.03 | 36.42 | 4.31 | 0.17 | 35.6 | ||
| HDB0724MC | 9.5 | 0.12 | 2.88 | 3200 | 0.85 | 30.16 | 3.01 | 0.12 | 31.0 | |||
| HDB0724LC | 9.5 | 0.10 | 2.40 | 2600 | 0.71 | 25.08 | 2.03 | 0.08 | 26.0 | |||
