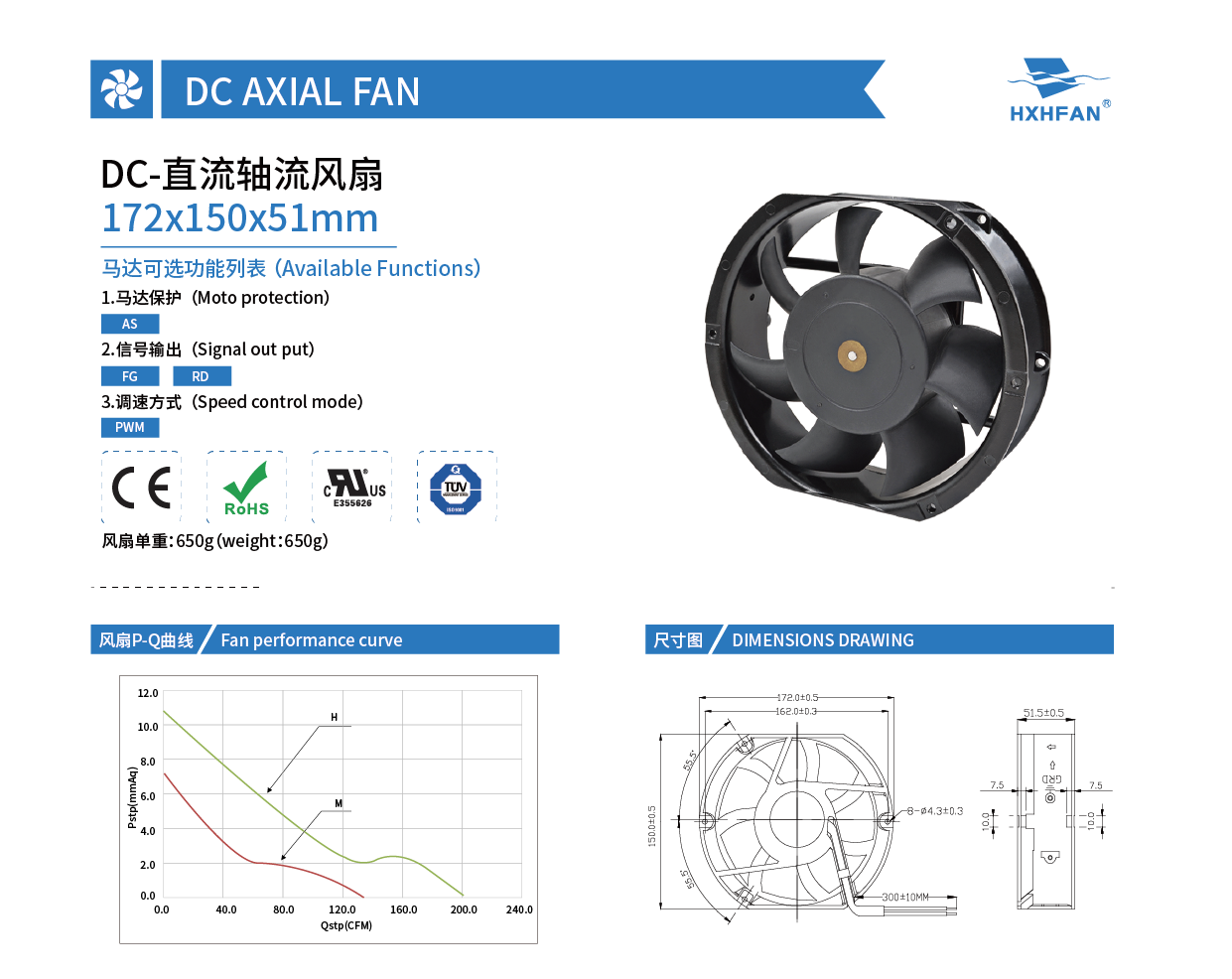

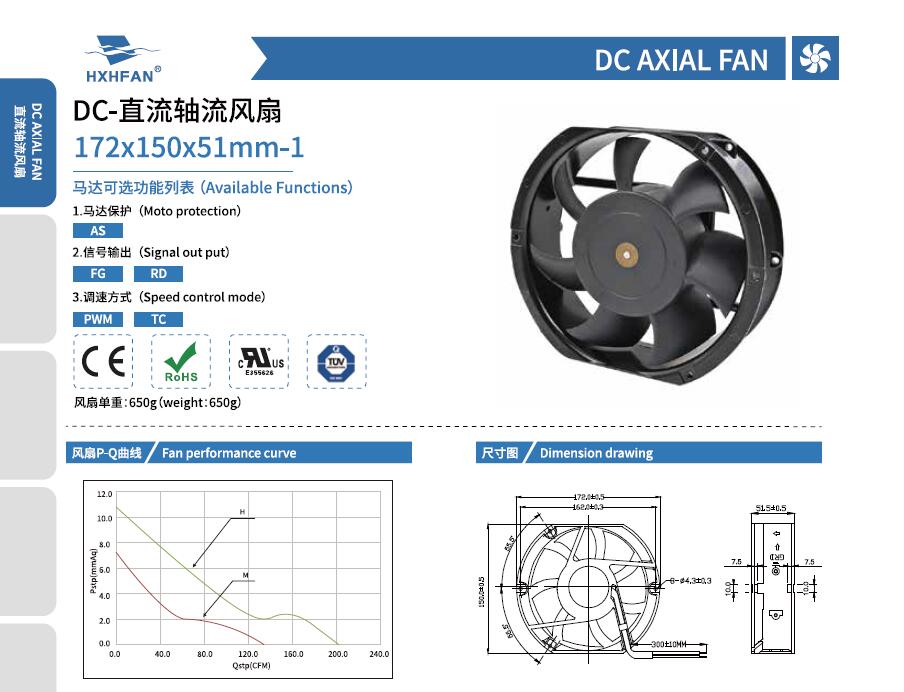

Product introduction:
| Size: | 172x150x51mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil Bearing Double Ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 172*150*51MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB17212HU-1 | -A | Ball | 12 | 5.0 | 2.60 | 31.20 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 |
| HDB17212MU-1 | -A | 5.0 | 0.85 | 10.20 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| HDB17224HU-1 | -A | Ball | 24 | 12.0 | 1.30 | 31.20 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 |
| HDB17224MU-1 | -A | 12.0 | 0.30 | 7.20 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| HDB17248HU-1 | -A | Ball | 48 | 24.0 | 0.65 | 31.20 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 |
| HDB17248MU-1 | -A | 24.0 | 0.16 | 7.68 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
