Product introduction:
| Size: | 20x20x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Working voltage: | 5V 12V |
| Bearing structure: | Hydraulic bearing |
| Product life: | 40,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

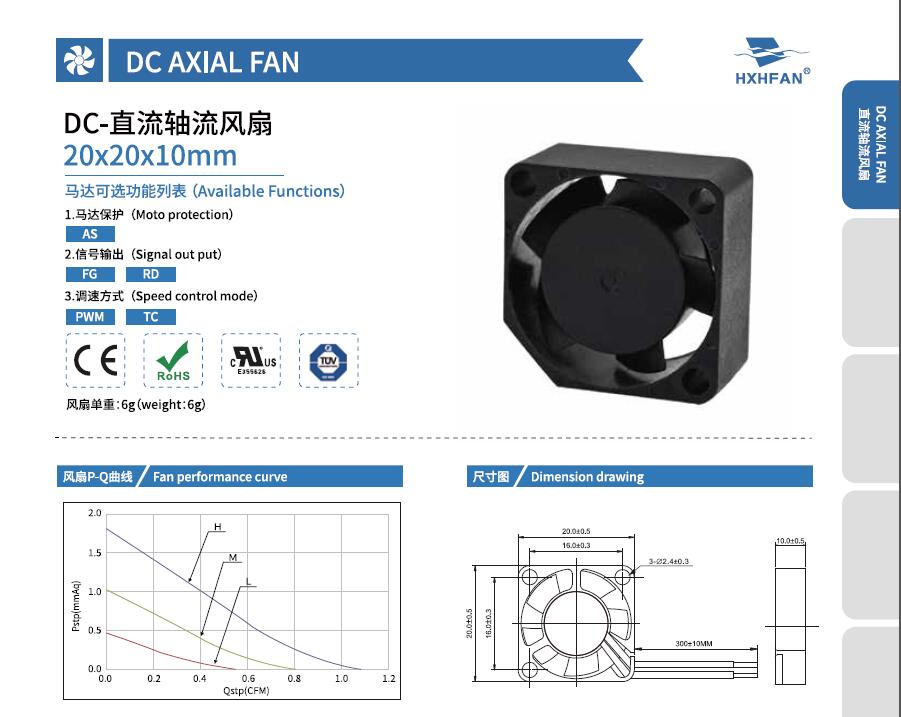

| 20×20×10mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0205HG | -A | Hydraulic | 5 | 4.0 | 0.16 | 0.80 | 11500 | 0.03 | 1.04 | 1.30 | 0.05 | 15.6 |
| HDH0205MG | -A | 4.0 | 0.08 | 0.40 | 8500 | 0.02 | 0.65 | 0.82 | 0.03 | 11.1 | ||
| HDH0205LG | -A | 4.5 | 0.06 | 0.30 | 5500 | 0.01 | 0.29 | 0.29 | 0.01 | 8.3 | ||
| HDH0212HG | -A | Hydraulic | 12 | 6.0 | 0.16 | 1.92 | 15000 | 0.05 | 1.89 | 1.89 | 0.07 | 23.6 |
| HDH0212MG | -A | 6.0 | 0.08 | 0.96 | 12000 | 0.04 | 1.56 | 1.53 | 0.06 | 16.1 | ||
| HDH0212LG | -A | 7.0 | 0.06 | 0.72 | 9000 | 0.02 | 0.81 | 1.03 | 0.04 | 11.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
