产品描述
| 60×60×25MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBB0605HA-2 | Ball | 5 | 4.0 | 0.50 | 2.50 | 4700 | 0.30 | 10.48 | 20.41 | 0.80 | 42.0 | |
| HBB0605MA-2 | 4.0 | 0.30 | 1.50 | 4000 | 0.25 | 8.92 | 14.78 | 0.58 | 38.5 | |||
| HBB0605LA-2 | 4.0 | 0.18 | 0.90 | 3300 | 0.21 | 7.36 | 10.06 | 0.40 | 34.3 | |||
| HBB0612HA-2 | Ball | 12 | 9.0 | 0.21 | 2.52 | 4700 | 0.30 | 10.48 | 20.41 | 0.80 | 42.0 | |
| HBB0612MA-2 | 9.0 | 0.13 | 1.56 | 4000 | 0.25 | 8.92 | 14.78 | 0.58 | 38.5 | |||
| HBB0612LA-2 | 9.0 | 0.08 | 0.96 | 3300 | 0.21 | 7.36 | 10.06 | 0.40 | 34.3 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

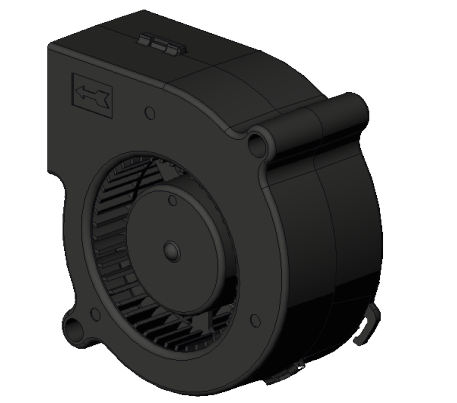

60x60x25mm-2
