产品描述

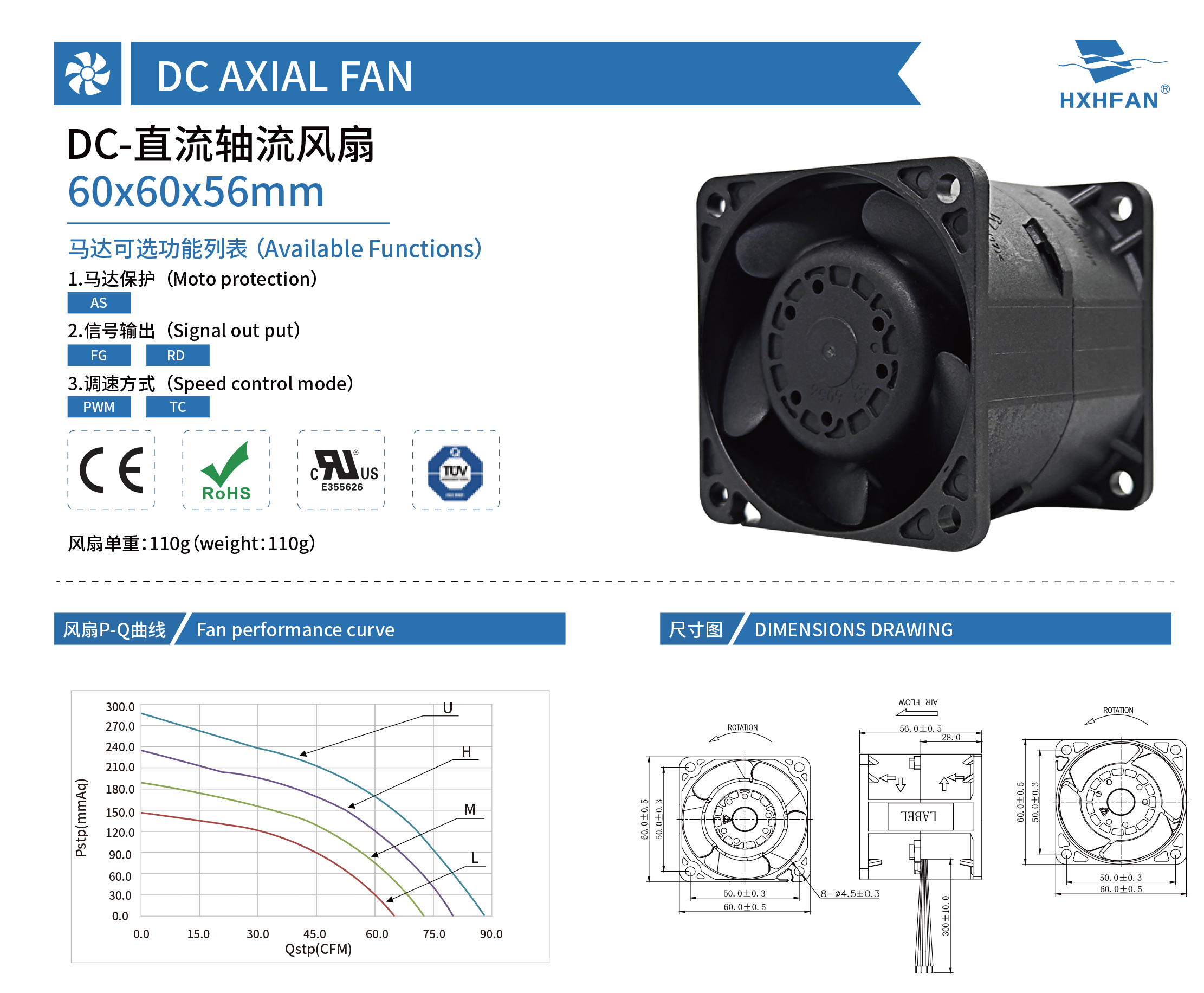

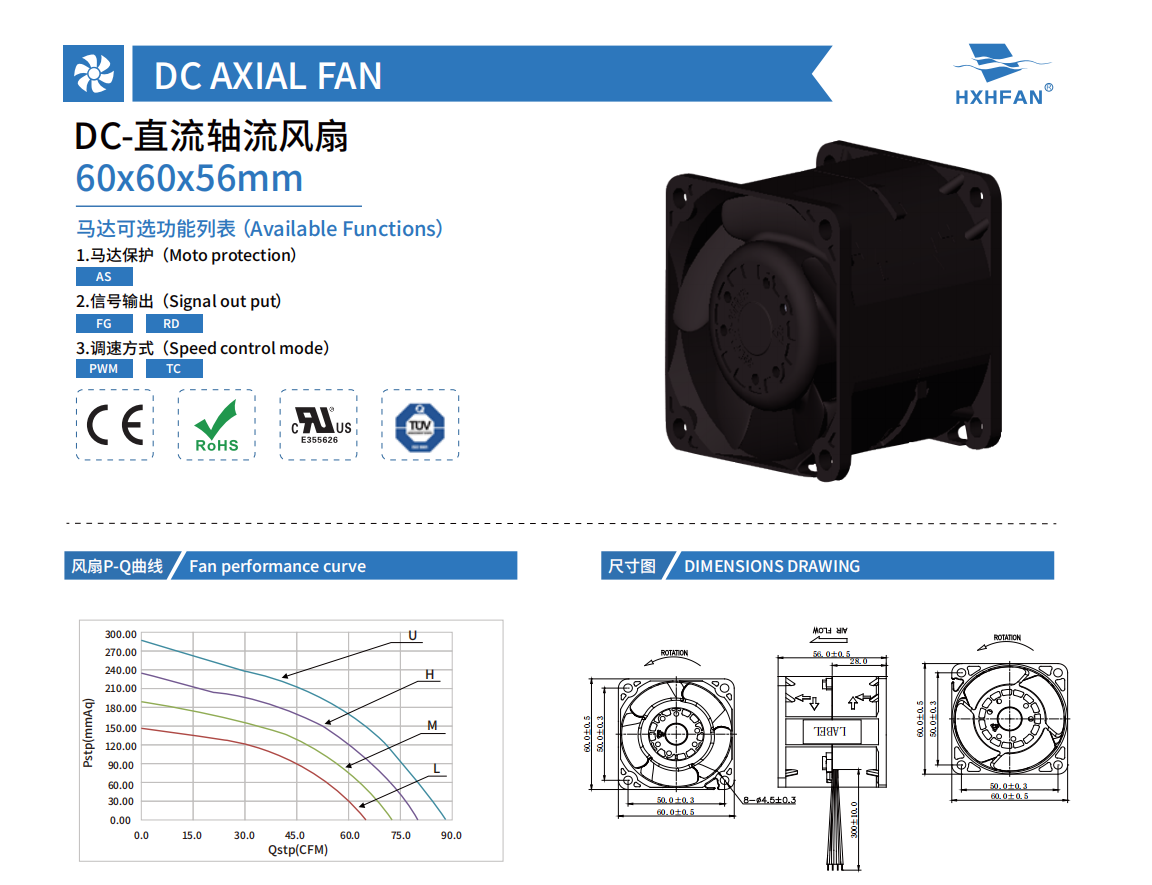

| 60×60×56MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612UW | -A | Ball | 12 | 6.0 | 5.70 | 68.40 | IN:23000 OUT:20500 |
2.50 | 88.30 | 287.23 | 11.31 | 78.5 |
| HDB0612HW | -A | 6.0 | 4.26 | 51.12 | IN:21000 OUT:18500 |
2.27 | 80.19 | 235.13 | 9.26 | 74.5 | ||
| HDB0612MW | -A | 6.0 | 2.95 | 35.40 | IN:19000 OUT:16500 |
2.05 | 72.55 | 188.24 | 7.41 | 72.1 | ||
| HDB0612LW | -A | 6.0 | 2.10 | 25.20 | IN:17000 OUT:14500 |
1.84 | 64.91 | 146.57 | 5.77 | 69.2 | ||
| HDB0612UW | -A | Ball | 24 | 12.0 | 3.00 | 72.00 | IN:23000 OUT:20500 |
2.50 | 88.30 | 287.23 | 11.31 | 78.5 |
| HDB0612HW | -A | 12.0 | 2.13 | 51.12 | IN:21000 OUT:18500 |
2.27 | 80.19 | 235.13 | 9.26 | 74.5 | ||
| HDB0612MW | -A | 12.0 | 1.48 | 35.52 | IN:19000 OUT:16500 |
2.05 | 72.55 | 188.24 | 7.41 | 72.1 | ||
| HDB0612LW | -A | 12.0 | 1.05 | 25.20 | IN:17000 OUT:14500 |
1.84 | 64.91 | 146.57 | 5.77 | 69.2 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
