Product description
产品描述
| 172X150X51MM | ||||||||||||
| Model0 | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HES17110UU | -A | Sleeve | 110 | 80～130 | 50/60 | 122.00 | 5000 | 13.16 | 465.13 | 43.83 | 1.73 | 71.9 |
| HES17110HU | -A | 80～130 | 50/60 | 61.20 | 4000 | 10.14 | 358.30 | 31.87 | 1.25 | 65.6 | ||
| HES17110MU | -A | 80～130 | 50/60 | 32.00 | 3000 | 8.03 | 283.80 | 13.12 | 0.52 | 59.3 | ||
| HES17110LU | -A | 80～130 | 50/60 | 10.50 | 2000 | 5.37 | 189.60 | 7.56 | 0.30 | 52.5 | ||
| HEB17110UU | -A | Ball | 80～130 | 50/60 | 122.00 | 5000 | 13.16 | 465.13 | 43.83 | 1.73 | 71.9 | |
| HEB17110HU | -A | 80～130 | 50/60 | 61.20 | 4000 | 10.14 | 358.30 | 31.87 | 1.25 | 65.6 | ||
| HEB17110MU | -A | 80～130 | 50/60 | 32.00 | 3000 | 8.03 | 283.80 | 13.12 | 0.52 | 59.3 | ||
| HEB17110LU | -A | 80～130 | 50/60 | 10.50 | 2000 | 5.37 | 189.60 | 7.56 | 0.30 | 52.5 | ||
| HES17220UU | -A | Sleeve | 220 | 100～240 | 50/60 | 120.00 | 5000 | 13.16 | 465.13 | 43.83 | 1.73 | 71.9 |
| HES17220HU | -A | 100～240 | 50/60 | 60.00 | 4000 | 10.14 | 358.30 | 31.87 | 1.25 | 65.6 | ||
| HES17220MU | -A | 100～240 | 50/60 | 32.00 | 3000 | 8.03 | 283.80 | 13.12 | 0.52 | 59.3 | ||
| HES17220LU | -A | 100～240 | 50/60 | 10.50 | 2000 | 5.37 | 189.60 | 7.56 | 0.30 | 52.5 | ||
| HEB17220UU | -A | Ball | 100～240 | 50/60 | 120.00 | 5000 | 13.16 | 465.13 | 43.83 | 1.73 | 71.9 | |
| HEB17220HU | -A | 100～240 | 50/60 | 60.00 | 4000 | 10.14 | 358.30 | 31.87 | 1.25 | 65.6 | ||
| HEB17220MU | -A | 100～240 | 50/60 | 32.00 | 3000 | 8.03 | 283.80 | 13.12 | 0.52 | 59.3 | ||
| HEB17220LU | -A | 100～240 | 50/60 | 10.50 | 2000 | 5.37 | 189.60 | 7.56 | 0.30 | 52.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
| Electric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame | |||||||||||
| Insulation Resistance | 10M ohm between lead wire and frame(DC 500V) | |||||||||||
| Life Expectancy(Ball bearing) | 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |||||||||||
| Life Expectancy(Hydraulic bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |||||||||||
| Operation Temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification | |||||||||||
| Storage Temperature | Storage Temperature: -40~75 degree C(-40~167 degree F) | |||||||||||
| Protection | Motor protection and polarity protection | |||||||||||
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 | |||||||||||
| Plastic Material | Motor protection and polarity protection | |||||||||||
About Us
Get the latest quotation

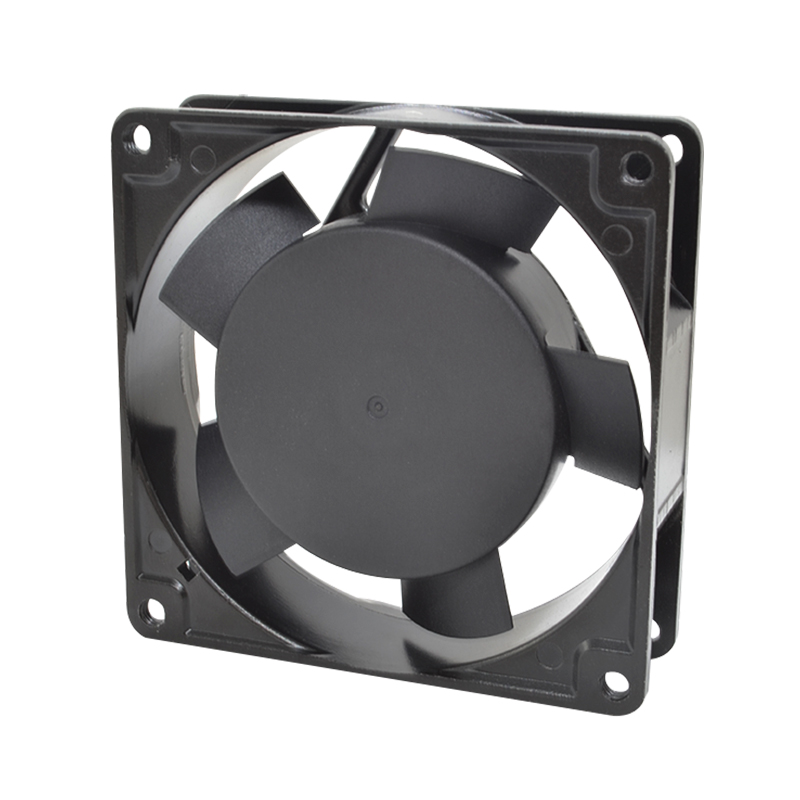

AC axial fan
