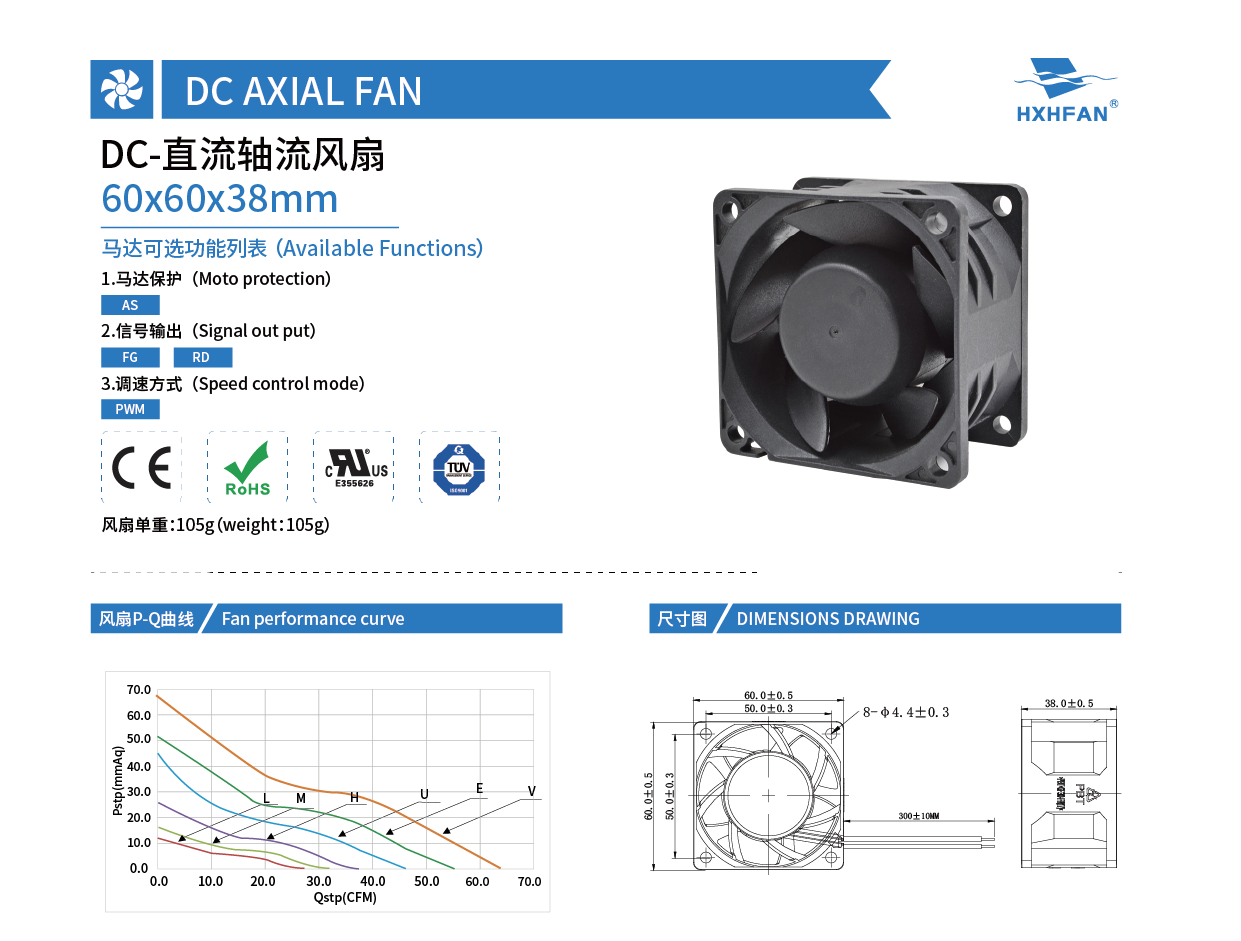

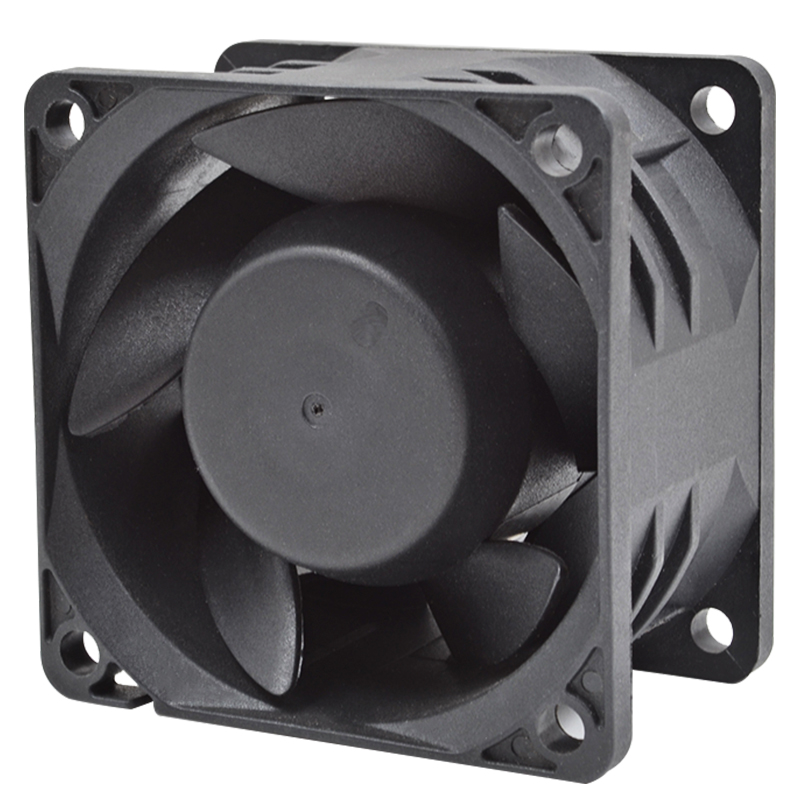

60×60×38MM-1
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part No.	Function	System	VDC	VDC	A	W	RPM	m³/min	CFM	mmH₂O	INH₂O	dBA
HDB0612VF-1	-A	Ball	12	6.0	1.50	18.00	15000	1.81	64.00	67.47	2.66	63.0
HDB0612EF-1				6.0	1.20	14.40	13000	1.56	55.02	51.23	2.02	57.4
HDB0612UF-1				6.0	0.85	10.20	11000	1.31	46.35	44.70	1.41	53.0
HDB0612HF-1				6.0	0.60	7.20	9000	1.06	37.30	25.49	1.00	46.6
HDB0612MF-1				9.0	0.35	4.20	7500	0.90	31.74	16.04	0.63	42.8
HDB0612LF-1				9.0	0.30	3.60	6500	0.77	27.11	11.85	0.47	40.2
HDB0624VF-1	-A	Ball	24	12.0	0.85	20.40	15000	1.81	64.00	67.47	2.66	63.0
HDB0624EF-1				12.0	0.60	14.40	13000	1.56	55.02	51.23	2.02	57.4
HDB0624UF-1				12.0	0.50	12.00	11000	1.31	46.35	44.70	1.76	53.0
HDB0624HF-1				12.0	0.35	8.40	9000	1.06	37.30	25.49	1.00	46.6
HDB0624MF-1				18.0	0.25	6.00	7500	0.90	31.74	16.04	0.63	42.8
HDB0624LF-1				18.0	0.20	4.80	6500	0.77	27.11	11.85	0.47	40.2
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

60x60x38mm-1

DC-轴流风扇
