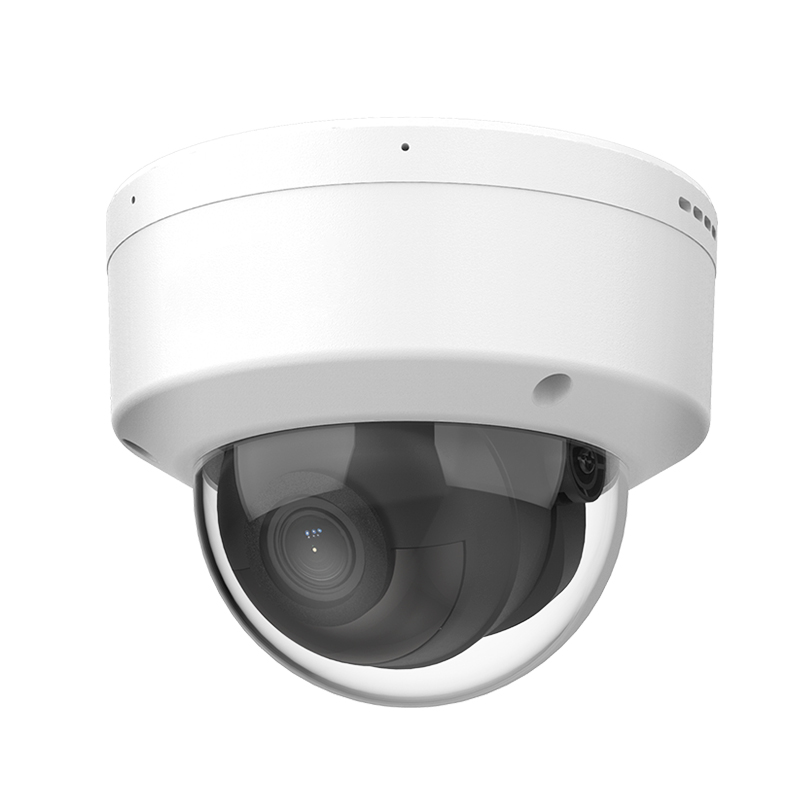

High-speed camera application solutions
High-speed cameras are operating and switching 24 hours a day. With such a high and stable conversion efficiency, the high wattage and heat transfer requirements of the relatively driven cameras have gradually increased. Therefore, the heat dissipation problem has become a problem for high-speed cameras. One.
The starfish and the use of anti-dust magnetic levitation motor to isolate the fine dust, show thin profile, low power consumption, low vibration, low noise, long life and other characteristics, which meet the heat dissipation requirements of high-speed cameras.
25×25×07MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS2505HQ | Sleeve | 5 | 0.15 | 0.75 | 13000 | 0.06 | 2.20 | 5.24 | 0.21 | 24.0 | |
| HDS2505MQ | 0.10 | 0.50 | 10000 | 0.05 | 1.62 | 2.93 | 0.12 | 18.0 | |||
| HDS2512HQ | 12 | 0.12 | 1.44 | 13000 | 0.06 | 2.20 | 5.24 | 0.21 | 24.0 | ||
| HDS2512MQ | 0.08 | 0.96 | 10000 | 0.05 | 1.62 | 2.93 | 0.12 | 18.0 | |||
40×40×10MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0405UG | Sleeve | 5 | 0.22 | 1.10 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | |
| HBS0405HG | 0.17 | 0.85 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBS0405MG | 0.11 | 0.55 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBS0405LG | 0.07 | 0.35 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBB0405UG | Ball | 0.22 | 1.10 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | ||
| HBB0405HG | 0.17 | 0.85 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBB0405MG | 0.11 | 0.55 | 6500 | 0,05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBB0405LG | 0.07 | 0.35 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBS0412UG | Sleeve | 12 | 0.10 | 1.20 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | |
| HBS0412HG | 0.08 | 0.96 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBS0412MG | 0.06 | 0.72 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBS0412LG | 0.05 | 0.60 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBB0412UG | Ball | 0.10 | 1.20 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 20.9 | ||
| HBB0412HG | 0.08 | 0.96 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 20.9 | |||
| HBB0412MG | 0.06 | 0.72 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 20.9 | |||
| HBB0412LG | 0.05 | 0.60 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
