产品描述
| 120×120×25MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB1212HA-3 | IP68 | Ball | 12 | 5.0 | 0.32 | 3.84 | 2500 | 3.50 | 123.68 | 7.58 | 0.30 | 40.3 |
| HYB1212MA-3 | IP68 | 5.0 | 0.24 | 2.88 | 2000 | 2.80 | 98.94 | 4.85 | 0.19 | 35.5 | ||
| HYB1212LA-3 | IP68 | 5.0 | 0.18 | 2.16 | 1500 | 2.10 | 74.21 | 2.73 | 0.11 | 29.2 | ||
| HYB1224HA-3 | IP68 | Ball | 24 | 12.0 | 0.16 | 3.84 | 2500 | 3.50 | 123.68 | 7.58 | 0.30 | 40.3 |
| HYB1224MA-3 | IP68 | 12.0 | 0.11 | 2.64 | 2000 | 2.80 | 98.94 | 4.85 | 0.19 | 35.5 | ||
| HYB1224LA-3 | IP68 | 12.0 | 0.08 | 1.92 | 1500 | 2.10 | 74.21 | 2.73 | 0.11 | 29.2 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

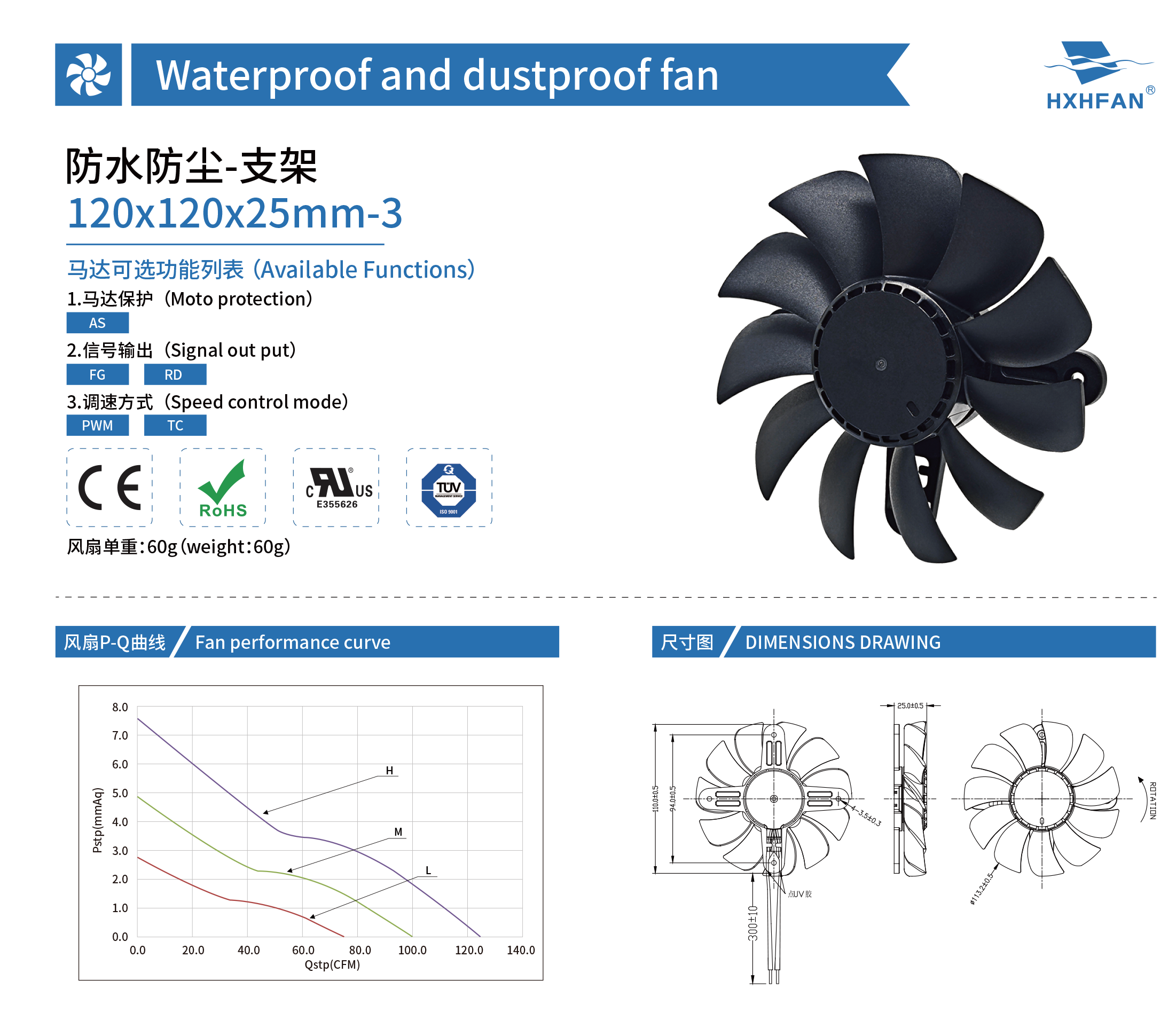

120x120x25mm-3
MOQ：
价格：
